FD30 internal fire doors provide essential protection by resisting fire for a minimum of 30 minutes. These fire rated internal doors form a critical part of building safety systems, containing fire spread and protecting escape routes during emergencies.
Essential FD30 Internal Fire Door Requirements
FD30 internal fire doors must meet strict specifications to achieve their 30-minute fire resistance rating. The door construction requires correct thickness, typically 44mm minimum, with appropriate core materials designed to withstand high temperatures.
Certified hinges play a vital role in door performance. Each internal fire door needs a minimum of three fire rated hinges to maintain structural integrity during fire conditions. These hinges must match the door’s fire rating to ensure complete system performance.
Compatible intumescent strips expand when exposed to heat, sealing gaps around the door frame. These strips prevent smoke and flame penetration, maintaining the fire compartment’s effectiveness throughout the 30-minute period.
Installation Standards for Fire Rated Internal Doors
Proper gap tolerances ensure optimal performance of FD30 internal fire doors. The door requires 2-4mm gaps around all edges to allow for thermal expansion while maintaining fire resistance. Larger gaps compromise the door’s ability to contain fire and smoke.
Self-closing mechanisms ensure the fire door automatically closes after use. This feature maintains fire compartments even when occupants forget to close the door manually. The closing mechanism must provide sufficient force to overcome normal air pressure and friction.
Fire rated glazing panels, when present, must match the door’s 30-minute rating. The glazing system includes the glass, beading, and fixing method – all certified to withstand fire conditions for the full rating period.
Commercial Fire Door Applications
Commercial fire doors serve multiple building types including offices, schools, hospitals and retail premises. These internal fire doors protect stairwells, corridors and room entrances, creating safe escape routes during emergencies.
FD30 doors suit areas requiring 30-minute fire protection, typically separating different occupancy areas or protecting escape routes. Building regulations and fire risk assessments determine the specific requirements for each location.
BWF Certifire Approval and Certification
All Safelincs FD30 doors carry third party certification approval, meeting the highest industry standards. This certification guarantees the door has undergone rigorous testing to prove its 30-minute fire resistance capability.
Certification marking on each door provides traceability and compliance evidence. Building inspectors and fire safety officials recognise this marking as proof of the door’s tested performance and regulatory compliance.
Professional Fire Door Services
Safelincs offers complete fire door services including supply, installation and inspection throughout mainland UK. Our certified team ensures correct installation in compatible frames, maintaining the door’s fire rating and building compliance.
Our fire door inspection service identifies potential issues with existing installations. Type 1, 2 and 3 inspections suit different building situations, from new installations to maintenance checks on established fire door systems.
Made to measure fire doors ensure perfect fit and optimal performance. Our manufacturing partner produces doors to exact specifications, eliminating installation problems and maintaining certification requirements.
Contact our fire door specialists on 0800 433 4289 or email firedoors@safelincs.co.uk for expert advice on FD30 internal fire door requirements and installation services.
With over 20 years of experience in content writing, design and marketing, Mel now heads up the Content & Marketing Team at Safelincs. Having been in the fire safety industry for over 5 years, Mel has now developed a deep understanding of some of the critical issues facing the industry. Alongside her team, she aims to support the public with resources and information to help them improve fire safety at home, in the workplace or in 3rd sector organisations.
When protecting commercial buildings from fire hazards, the FD60 fire door represents one of the most critical safety investments an organisation can make. These robust barriers provide double the protection of standard fire doors, offering 60 minutes of fire and smoke resistance that can make the difference between minor property damage and catastrophic loss. Understanding the proper specification, installation and maintenance of an FD60 system is essential for facility managers, building owners and safety professionals responsible for protecting lives and assets.
Understanding FD60 Fire Door Specifications
The designation ‘FD60’ indicates a fire door tested and certified to resist fire and smoke penetration for a minimum of 60 minutes under controlled laboratory conditions. This enhanced protection level makes the FD60 particularly valuable in commercial settings where evacuation may be complex or high-value assets require additional safeguarding. When fire doors are explained in technical terms, an FD60 achieves superior performance through increased door thickness (typically 54mm minimum compared to 44mm for FD30), higher-density core materials, and enhanced intumescent seal systems.
The construction of an FD60 fire door involves sophisticated engineering beyond simply adding thickness. These doors incorporate multiple layers of fire-resistant materials, often including mineral cores or specially treated timber composites designed to maintain structural integrity at extreme temperatures. The 30 and 60 minute fire door frames must be equally robust, manufactured to exacting standards to ensure the entire assembly performs as a cohesive unit during a fire event.
Commercial buildings often require FD60s designation, where the ‘s’ indicates smoke protection capability. These doors feature dual protection systems: intumescent strips that expand at approximately 200°C to seal against flames, and cold smoke seals that prevent toxic smoke passage even before the fire reaches the door. This combination is particularly crucial in commercial environments where smoke inhalation poses the primary threat to building occupants during evacuation.
Critical Applications for FD60 in Commercial Settings
The FD60 fire door installation guide must begin with understanding where these enhanced protection levels are legally required or strongly recommended. Building regulations typically mandate 60-minute protection for compartment walls separating different buildings or distinct fire risk areas. In commercial settings, this includes walls between different tenancies in multi-occupied buildings, boundaries between manufacturing and office areas, and separations between high-risk zones such as plant rooms and occupied spaces.
Server rooms and data centres represent prime candidates for FD60 protection, where the combination of electrical equipment, cooling systems and critical business data creates both elevated fire risk and substantial potential losses. Similarly, chemical storage areas, boiler rooms and electrical distribution centres benefit from the extended containment period that FD60 doors provide, allowing more time for specialist fire suppression systems to activate and emergency responders to arrive.
Healthcare facilities particularly benefit from FD60 specifications, as evacuation strategies often involve horizontal movement to adjacent compartments rather than complete building evacuation. The additional 30 minutes of protection compared to FD30 doors can be crucial when moving patients with limited mobility or those connected to life-support equipment. Care homes, hospitals and assisted living facilities frequently specify FD60 doors throughout to provide maximum protection for vulnerable occupants.
Installation Best Practices for FD60 Fire Doors
Proper installation of an FD60 fire door demands meticulous attention to detail and strict adherence to manufacturer specifications. The increased weight and thickness of these doors – often exceeding 75kg – requires robust fixing methods and careful handling procedures. The FD60 fire door installation guide emphasises that even minor installation errors can compromise the door’s fire resistance, potentially reducing a 60-minute barrier to mere minutes of protection.
Frame preparation represents the foundation of successful FD60 installation. The supporting wall structure must be capable of bearing the door’s weight while maintaining integrity during a fire. Any voids between the frame and structural opening require filling with appropriate fire-resistant materials – never standard building foam or conventional fillers. The frame itself must be plumb, square and securely fixed at maximum 600mm centres, with additional fixings required for the considerable forces generated when intumescent seals activate.
Gap tolerances for FD60 doors follow the same strict standards as other fire doors: 2-4mm at sides and top, with threshold gaps typically not exceeding 10mm (though manufacturer specifications may vary). Achieving these precise measurements becomes more challenging with heavier FD60 doors, as their weight can cause frame distortion or hinge compression over time. Using appropriate packers and adjustment mechanisms during installation helps maintain correct gaps throughout the door’s service life.
Hardware selection for FD60 doors requires particular consideration. Standard hinges designed for FD30 doors may not adequately support the additional weight, leading to sagging and gap irregularities. Fire door inspection and installation services can ensure all components meet the necessary specifications, including CE marked hinges rated for the door weight, appropriately powered closers (minimum EN4 for most FD60 doors) and fire-rated locks and latches compatible with the door’s certification.
Maintenance Requirements for 60-Minute Fire Doors
The substantial investment in FD60 protection demands correspondingly rigorous maintenance to ensure continued performance. The Regulatory Reform (Fire Safety) Order 2005 requires fire doors to be maintained in efficient working order, with regular inspections forming a crucial component of compliance. For FD60 doors in commercial buildings, the enhanced protection level makes proper maintenance even more critical, as these doors often protect the most vulnerable areas or valuable assets.
Regular inspection schedules should account for the heavier construction and more complex seal systems of FD60 doors. While standard practice recommends six-monthly inspections for most fire doors, high-traffic FD60 installations may benefit from quarterly checks. The increased door weight places greater stress on hinges and frames, potentially accelerating wear compared to lighter FD30 alternatives. Inspection protocols should specifically address hinge condition, checking for signs of metal fatigue, loose fixings or bearing wear that could compromise door alignment.
The intumescent strips and smoke seals on FD60 doors require particular attention during maintenance checks. The extended fire resistance depends on these seals maintaining their integrity and correct positioning. Any paint application to the door must avoid covering the seals, as this can prevent proper expansion during a fire. Damage from impact, cleaning chemicals or general wear must be addressed immediately, with replacement seals matching the original specification to maintain the door’s certification.
Door closer maintenance becomes particularly important with FD60 installations due to the forces involved in controlling heavier doors. Closers must overcome not only the door weight but also the resistance from comprehensive seal systems. Regular adjustment ensures appropriate closing speeds – fast enough to ensure prompt closure but controlled to prevent slamming that could damage the door, frame or seals.
Common Challenges with FD60 Implementation
The weight of FD60 fire doors presents significant accessibility challenges in commercial buildings. Doors exceeding 75kg require considerable force to open, potentially excluding users with limited strength or mobility impairments. The Equality Act 2010 requires reasonable adjustments to ensure disabled access, creating potential conflict between fire safety requirements and accessibility obligations. Solutions include electromagnetic hold-open devices that release automatically when fire alarms activate, or free-swing door closers that temporarily disengage resistance during normal use.
Cost considerations often influence FD60 specification decisions. The doors themselves typically cost 40-60% more than equivalent FD30 options, with additional expenses for upgraded frames, heavy-duty hardware and specialised installation. However, comparing FD30 and FD60 fire door benefits reveals that the enhanced protection can justify the investment, particularly when considering potential business interruption costs, insurance premium reductions and the invaluable protection of human life.
Retrofitting FD60 doors into existing buildings presents unique challenges. Structural openings designed for standard doors may require significant modification to accommodate the thicker FD60 profile. Wall construction must be verified capable of supporting the additional weight, potentially requiring reinforcement. In heritage buildings or those with architectural constraints, achieving FD60 protection while maintaining aesthetic requirements demands creative solutions and potentially bespoke manufacturing.
Regulatory Compliance and Documentation
Demonstrating compliance for FD60 installations requires comprehensive documentation throughout the door’s lifecycle. BWF-Certifire certification provides third-party verification that doors meet required standards, with unique serial numbers enabling traceability to test evidence and manufacturing specifications. Building owners must maintain records showing not only initial certification but also evidence of proper installation, regular maintenance and any modifications or repairs undertaken.
Fire risk assessments must clearly identify where FD60 protection is required and verify that installed doors meet these specifications. The assessment should consider factors including building layout, occupancy characteristics, evacuation strategies and the presence of hazardous materials or high-value assets. Where FD60 doors are specified beyond minimum regulatory requirements, the risk assessment should document the rationale for enhanced protection levels.
Building regulations continue evolving to address emerging fire safety challenges. The Fire Safety Act 2021 expanded the scope of fire risk assessments to include flat entrance doors and building structure, potentially affecting FD60 requirements in mixed-use commercial buildings. Staying current with regulatory changes ensures continued compliance and may identify opportunities to enhance protection beyond minimum standards.
Integration with Building Fire Strategies
FD60 fire doors form integral components of comprehensive fire strategies, working in conjunction with detection systems, suppression equipment and evacuation procedures. The 60-minute protection period must align with expected evacuation times, fire service response capabilities, and the activation time of suppression systems. In complex commercial buildings, fire risk assessors may specify FD60 doors strategically to create protected routes or temporary refuge areas.
The relationship between FD60 doors and smoke control systems requires careful coordination. While the doors provide excellent smoke containment when closed, they must not impede designed smoke ventilation paths. In buildings with mechanical smoke extraction, door positions and opening forces must be calculated to ensure systems function correctly. Automatic opening devices may be required to facilitate smoke clearance after evacuation completion.
Modern building management systems increasingly integrate fire door monitoring capabilities. Sensors can detect when FD60 doors are wedged open, alert maintenance teams to doors failing to close properly, or track usage patterns that might indicate accelerated wear. These smart building technologies help ensure FD60 doors remain ready to perform when needed, while providing audit trails for compliance demonstration.
Future Developments in FD60 Technology
The fire door industry continues advancing FD60 technology to address current limitations while improving performance. Research into lighter-weight core materials promises to reduce door mass without compromising fire resistance, potentially resolving accessibility challenges. Advanced composite materials and aerogel-based insulation systems show particular promise for next-generation FD60 doors that match current protection levels at substantially reduced weights.
Sustainability considerations increasingly influence FD60 specifications. Manufacturers are developing doors using renewable materials, reduced-emission manufacturing processes, and designs optimised for end-of-life recycling. Life-cycle assessments help building owners balance environmental impact against safety requirements, with some FD60 doors now achieving impressive sustainability credentials without compromising fire performance.
Smart door technology continues evolving, with FD60 doors incorporating sophisticated monitoring and diagnostic capabilities. Future systems may predict maintenance requirements using artificial intelligence, automatically adjust closer forces based on environmental conditions, or provide real-time fire spread modelling to emergency responders. These technological advances promise to enhance both the reliability and effectiveness of FD60 fire protection.
The FD60 fire door represents a critical investment in commercial building safety, providing enhanced protection that can save lives, preserve property and ensure business continuity. Understanding the complexities of specification, installation and maintenance ensures these sophisticated safety systems perform as intended when needed most. From initial risk assessment through ongoing maintenance, every aspect of FD60 implementation demands professional attention to detail and commitment to best practices.
Success with FD60 systems requires collaboration between building owners, fire safety professionals, installers and maintenance teams. Regular training ensures all stakeholders understand their roles in maintaining these vital safety barriers. When properly specified, installed and maintained following this FD60 fire door installation guide, these robust doors provide peace of mind that commercial buildings offer the highest levels of fire protection for occupants and assets.
As fire safety regulations continue evolving and building uses change over time, the enhanced protection offered by FD60 doors provides valuable flexibility and future-proofing. While the initial investment may seem substantial, the long-term benefits of superior fire protection, regulatory compliance, and enhanced life safety make FD60 fire doors an essential component of responsible commercial building management. Whether protecting data centres, healthcare facilities, or multi-tenancy buildings, FD60 doors stand ready to provide crucial minutes when every second counts.
With over 20 years of experience in content writing, design and marketing, Mel now heads up the Content & Marketing Team at Safelincs. Having been in the fire safety industry for over 5 years, Mel has now developed a deep understanding of some of the critical issues facing the industry. Alongside her team, she aims to support the public with resources and information to help them improve fire safety at home, in the workplace or in 3rd sector organisations.
Fire proof doors and internal fire doors are critical components of any building’s passive fire protection system, serving as barriers that prevent the spread of fire and smoke throughout a building. These specialised doors can mean the difference between a minor incident and a catastrophic event, protecting lives and property by maintaining vital escape routes during emergencies. Regular maintenance and inspection of your fire doors ensures they will perform as intended when needed most.
Understanding Fire Door Maintenance Requirements
The importance of maintaining fire proof doors cannot be overstated. Under the Regulatory Reform (Fire Safety) Order 2005, the Responsible Person for any non-domestic premises has a legal duty to ensure all fire safety equipment, including internal fire doors, is maintained in ‘good working order’. This isn’t just a recommendation – it’s a legal requirement that, if ignored, could result in substantial fines or even prosecution.
For residential buildings, the Fire Safety (England) Regulations 2022 introduced additional requirements. Buildings with two or more dwellings must conduct regular fire door inspections, with the frequency depending on the building’s height. In buildings over 11 metres tall, fire doors in communal areas require checking every three months, while flat entrance doors need annual ‘best endeavour’ checks.
The consequences of poor maintenance can be severe. A damaged or poorly maintained fire door may fail to contain fire and smoke, potentially leading to rapid fire spread, blocked escape routes and tragic loss of life. Beyond the human cost, failing to maintain fire doors properly could result in criminal prosecution, unlimited fines and devastating reputational damage.
Essential Components to Inspect
When maintaining fire proof doors, understanding what to inspect is crucial. Every component plays a vital role in the door’s ability to resist fire and smoke. Let’s examine each element in detail.
Door Leaf and Frame
The door leaf itself should be checked for any signs of damage, warping or holes. Even small damage can compromise the door’s integrity. The frame must be securely fixed to the wall with no visible movement when pressure is applied. Check that the door sits properly within its frame – it shouldn’t be twisted or distorted.
Intumescent Seals and Smoke Brushes
Intumescent strips for fire doors are perhaps the most critical component for fire resistance. These strips, embedded around the door edges or frame, expand when exposed to heat, sealing the gaps between door and frame. Inspect these carefully for any damage, paint overspray or missing sections. If your doors are rated FD30s or FD60s (the ‘s’ indicating smoke protection), they’ll also have smoke brushes that prevent cold smoke from passing through – these should be intact and not excessively worn.
Fire Door Closers and Hinges
A fire door is only effective when closed, making the selection of appropriate door closers essential. The door closer should be powerful enough to close the door fully from any angle, overcoming the resistance of seals and latches. Check that it closes at a controlled speed – not slamming but not too slowly either. Fire doors typically require three fire-rated hinges, which should be checked for wear, damage or missing screws.
Gaps and Clearances
Correct gap sizes are crucial for fire door performance. The gap between the door and frame should be consistently 3mm (±1mm) at the top and sides. The threshold gap (bottom of door) should not exceed 10mm, though some manufacturers specify tighter tolerances. Use a gap gauge to check these measurements accurately – excessive gaps will allow smoke and flames to pass through, while gaps that are too small may prevent the door from closing properly.
Comprehensive Inspection Checklist
To ensure thorough maintenance of your internal fire doors, follow this systematic inspection process:
Visual Inspection (Monthly)
Check for obvious damage to door leaf, frame or glazing
Ensure fire door signage is present and legible on both sides
Verify no unauthorised modifications have been made
Confirm door isn’t wedged open.
Functional Testing (Quarterly)
Open door to 5 degrees – it should close fully on its own
Open door to 90 degrees – check it closes firmly into the latch
Test door from various opening angles
Verify door closer operates smoothly without jerking
Detailed Component Check (Six-Monthly)
Measure gaps around all door edges with an appropriate gauge
Inspect intumescent seals for damage or degradation
Check all hinges are secure with no missing screws
Consider arranging a professional fire door inspection service by a qualified inspector who can provide detailed reports and identify issues that might be missed during routine checks.
The frequency and type of fire door inspection will vary depending on the type of premises, the risk that exists and the traffic levels in that area of the building.
Common Maintenance Issues and Solutions
Understanding common problems helps you identify and address issues before they become critical failures.
Damaged Intumescent Seals
If intumescent strips show signs of damage, missing sections, or have been painted over, they must be replaced immediately. Retrofitting or replacing fire door seals should be done following manufacturer specifications. Never attempt to repair damaged seals – always replace them entirely.
Door Not Closing Properly
When fire proof doors fail to close fully, the cause often lies with the door closer. Check the closer’s power setting – it may need adjustment for heavier doors or to overcome seal resistance. Remember that EN Power Size 3 is the minimum for fire doors. If adjustment doesn’t resolve the issue, the closer may need replacement.
Excessive Gaps
If gaps exceed specifications, don’t attempt to fix this with additional seals or draught excluders. The door may need rehinging or replacement. For threshold gaps, consider installing a threshold seal or plate, but ensure this doesn’t impede the door’s closing action.
Lock and Latch Problems
Locks and latches must engage properly without excessive force. If the latch doesn’t engage, the door won’t contain fire effectively. Misalignment often causes these issues – adjustment of the strike plate or hinges may resolve the problem. Any replacement hardware must be fire-rated and compatible with your door’s certification.
Best Practices for Fire Door Care
Maintaining internal fire doors requires ongoing attention and proper procedures. Here are essential practices to ensure your doors remain effective:
Regular Cleaning and Care
Keep fire doors clean using mild, non-abrasive cleaners. Avoid harsh chemicals that might damage seals or finishes. Pay particular attention to keeping hinges free from dust and debris, which can affect smooth operation. When cleaning, take the opportunity to perform a quick visual inspection.
Proper Usage Training
Educate all building users about fire door importance. Staff should understand that fire doors must never be wedged open (unless proper fire door hold-open devices are installed), and any damage should be reported immediately. Consider installing clear signage to reinforce these messages.
Documentation and Record Keeping
Maintain detailed records of all inspections, repairs, and replacements. Document:
Inspection dates and findings
Any defects identified and actions taken
Repairs completed with dates
Component replacements
Professional inspection reports
Relevant certification documents
These records demonstrate compliance with legal requirements and help identify recurring issues or doors requiring more frequent attention.
Working with Professionals
While routine checks can be performed in-house by competent persons, some situations require professional expertise:
Initial installation of new fire doors
Major repairs or modifications
Annual detailed inspections
Investigation of recurring problems
Special Considerations for Different Settings
Different buildings have unique requirements for fire proof doors maintenance:
Residential Buildings
In residential settings, particularly flats and HMOs, flat entrance doors opening onto communal areas require specific attention to fire door regulations. Responsible Persons must make ‘best endeavours’ to inspect flat entrance doors annually, requiring cooperation from residents. Provide educational materials to help residents understand their role in fire door maintenance.
Healthcare Facilities

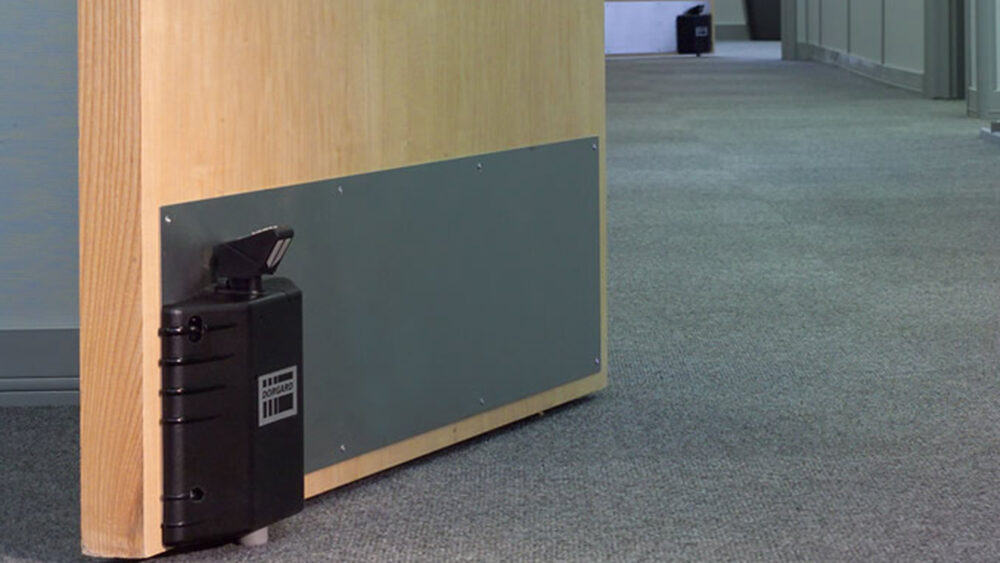

Care homes and hospitals often use fire door retainers to aid mobility for residents with wheelchairs or walking aids. These devices must be tested regularly to ensure they release when the fire alarm activates. The critical nature of phased evacuation in these settings makes proper fire door maintenance absolutely vital.
Educational Institutions
Schools and universities see heavy daily use of fire doors, accelerating wear. Consider more frequent inspections in high-traffic areas. Ensure doors in areas like science labs or workshops, where fire risk is higher, receive priority attention.
Creating Your Maintenance Schedule
Developing a structured maintenance schedule ensures nothing is overlooked:
Immediate Actions
Remove any wedges or unauthorised hold-open devices
Report and address any obvious damage
Ensure all fire door signage is present
Monthly Tasks
Visual inspection of all fire doors
Check for new damage or modifications
Verify doors aren’t being propped open
Quarterly Requirements
Functional testing of door closers
Check the operation of any authorised hold-open devices
When maintaining fire proof doors, understanding their ratings helps ensure appropriate care:
FD30 vs FD60 Ratings
FD30 doors provide 30 minutes of fire resistance, while FD60 doors offer 60 minutes. The rating affects maintenance requirements – FD60 doors typically have more robust construction and may have different seal specifications. Always maintain doors according to their specific rating requirements.
Smoke Control Designations
Doors marked FD30s or FD60s include smoke control features. These doors have additional smoke seals requiring inspection. The ‘s’ designation is particularly important for doors protecting escape routes, where smoke control is critical.
Proper maintenance of fire proof doors and internal fire doors is not just a legal obligation – it’s a critical safety responsibility that protects lives and property. By implementing regular inspection routines, addressing issues promptly and maintaining detailed records, you ensure your fire doors will perform when needed most.
Remember that fire door maintenance is an ongoing process, not a one-time task. Stay informed about changing regulations, invest in proper training, and don’t hesitate to seek professional assistance when needed. The time and resources invested in maintaining your fire doors properly are minimal compared to the potential consequences of neglect.
For comprehensive fire door solutions, from complete door sets to individual components and professional inspection services, ensure you work with reputable suppliers who understand the critical nature of fire door performance. Your commitment to proper fire door maintenance contributes to a safer environment for everyone who uses your building.
With over 20 years of experience in content writing, design and marketing, Mel now heads up the Content & Marketing Team at Safelincs. Having been in the fire safety industry for over 5 years, Mel has now developed a deep understanding of some of the critical issues facing the industry. Alongside her team, she aims to support the public with resources and information to help them improve fire safety at home, in the workplace or in 3rd sector organisations.
Fire doors are a critical component of any building’s passive fire protection system, and intumescent strips play an essential role in their effectiveness. These specialised fire door seals are the unsung heroes that can make the difference between life and death during a fire emergency. But how exactly do these remarkable strips work, and why are they so vital for fire safety?
Understanding Intumescent Technology
Intumescent strips are heat-reactive seals that remain dormant under normal conditions but spring into action when exposed to extreme temperatures. The word ‘intumescent’ comes from the Latin word ‘intumescere’ (meaning ‘to swell up’) – which is precisely what these clever fire door strips do when they detect heat from a fire.
When exposed to temperatures typically above 120-200°C, the intumescent material undergoes a chemical reaction that causes it to expand dramatically – often up to 10 times its original volume. This rapid expansion creates a char-like foam that effectively seals the gaps between the fire door and its frame, preventing the passage of flames, hot gases and smoke through what would otherwise be vulnerable points in your fire compartmentation strategy.
The Science Behind Fire Door Seals
The intumescent seal contains special compounds that react to heat through a process called thermal decomposition. As the temperature rises, these compounds break down and release gases that cause the material to foam and expand. The resulting char is both insulating and fire-resistant, creating an effective barrier that can withstand extreme temperatures for the duration of the door’s fire rating.
This expansion happens automatically and requires no human intervention, making intumescent strips a passive fire protection measure. This is a crucial safety feature that allows fire doors to fulfil their dual purpose: facilitating normal movement through a building while providing critical protection when fire strikes.
Installation and Positioning of Intumescent Strips
Proper installation of intumescent strips is crucial for their effectiveness. These fire door strips are typically fitted into grooves (rebates) cut into either the door edge or the door frame, running along the top and both vertical sides of the door. The bottom edge is usually left unsealed to allow for ventilation and door movement, though specialist drop-down smoke seals can be fitted where smoke control at floor level is required.
The strips must be continuous with no gaps or missing sections, as even small breaks in the seal can compromise the door’s fire resistance. When selecting fire door ironmongery, it’s essential to ensure that hinges, locks and other hardware don’t interfere with the intumescent strips’ ability to expand freely.
For existing doors being upgraded to fire door status, surface-mounted intumescent strips offer an alternative to rebated seals. These can be retrofitted without the need for routing or cutting into the door or frame, making them ideal for upgrading nominal fire doors identified during regular fire door inspections.
Types of Fire Door Strips and Smoke Seals
While basic intumescent strips provide essential fire protection, many fire doors require additional smoke sealing capabilities. Smoke can be as dangerous as fire itself, often causing more casualties through inhalation than the flames themselves. This is where combined intumescent and smoke seals come into play.
Combined strips feature an intumescent core with an attached smoke seal – typically either a soft brush strip or a flexible blade seal. These combination seals are particularly important for doors rated as FD30s or FD60s, where the ‘s’ designation indicates smoke resistance. The smoke seal element works from the moment the door closes, preventing cold smoke from passing through the gaps, while the intumescent element remains ready to activate when high temperatures are detected.
When considering fire door and accessories for your building, it’s worth noting that not all doors require smoke seals. Your fire risk assessment will determine which doors need this additional protection, typically those protecting escape routes or opening onto communal areas in residential buildings.
Maintenance and Inspection Requirements
Intumescent strips are remarkably durable and don’t degrade under normal conditions, but they still require regular inspection to ensure they remain effective. During routine fire door checks, which should be carried out at least every six months (or quarterly in certain residential buildings), the condition of intumescent strips should be carefully assessed.
Key inspection points include checking for physical damage, ensuring the strips are properly adhered to the door or frame, verifying complete coverage with no missing sections, and looking for signs of paint overspray or tampering that might prevent proper expansion. Any damaged or missing sections of the intumescent strip compromise the entire door’s fire resistance and should be replaced immediately.
Regular maintenance of fire doors in care homes and other high-risk environments is particularly crucial, as these settings often rely on phased evacuations where every minute of fire resistance counts.
Integration with Fire Door Systems
Intumescent strips work as part of a complete fire door system that includes the door leaf, frame, hinges, closers and any additional hardware. For a fire door to achieve its certified rating – whether FD30 or FD60 – all components must work together effectively.
The fire door seal must not interfere with the door’s ability to close fully and latch properly. This is why door closers must be correctly adjusted to overcome any resistance from smoke seals while ensuring the door closes at a controlled speed. Similarly, when fire door retainers are fitted to hold doors open for accessibility or ventilation, they must release reliably when triggered, allowing the door to close completely so the intumescent strips can do their job when needed.
Common Issues and Solutions
Despite their reliability, intumescent strips can face challenges that compromise their effectiveness. Paint overspray is a common problem, where decorators inadvertently paint over the strips, potentially preventing proper expansion. This is why fire doors should be decorated carefully, masking off the intumescent strips before painting.
Damage from impact or wear can create gaps in protection. High-traffic areas may see strips becoming dislodged or compressed over time, particularly where trolleys, wheelchairs or equipment regularly pass through. In such cases, more robust strip systems or protective plates may be needed to maintain integrity.
When gaps underneath fire doors exceed manufacturer specifications, threshold seals or drop-down seals may be required to maintain the door’s fire rating. However, any modifications should be carried out strictly according to manufacturer instructions to maintain certification.
The Legal and Safety Implications
Under the Regulatory Reform (Fire Safety) Order 2005, maintaining fire doors and their intumescent strips in good working order is a legal requirement for Responsible Persons. Failure to ensure fire door strips are properly fitted and maintained could result in prosecution, particularly if inadequate seals contribute to fire spread or casualties.
The importance of intumescent strips becomes even clearer when considering that fire doors can only perform their life-saving function when closed. The strips ensure that even a properly closed fire door doesn’t allow fire and smoke to bypass through the gaps that naturally exist for the door to function. Without these essential fire door seals, even the highest-rated fire door becomes little more than a standard door when faced with fire.
Intumescent strips represent a remarkable example of passive fire protection technology, providing automatic, reliable sealing when it matters most. These unassuming strips of material can mean the difference between a fire being contained to a single room and it spreading rapidly throughout a building.
Understanding how intumescent strips work helps building managers, fire safety professionals and property owners appreciate why regular inspection and maintenance of these components is so crucial. By ensuring your fire door strips are properly installed, regularly inspected and promptly replaced when damaged, you’re not just meeting legal requirements – you’re providing a vital layer of protection for everyone who uses your building.
Remember, fire safety is everyone’s responsibility, and maintaining effective intumescent strips on fire doors is a fundamental part of keeping buildings and their occupants safe. Whether you’re specifying new fire doors or maintaining existing ones, never underestimate the importance of these essential fire door seals in your overall fire safety strategy.
