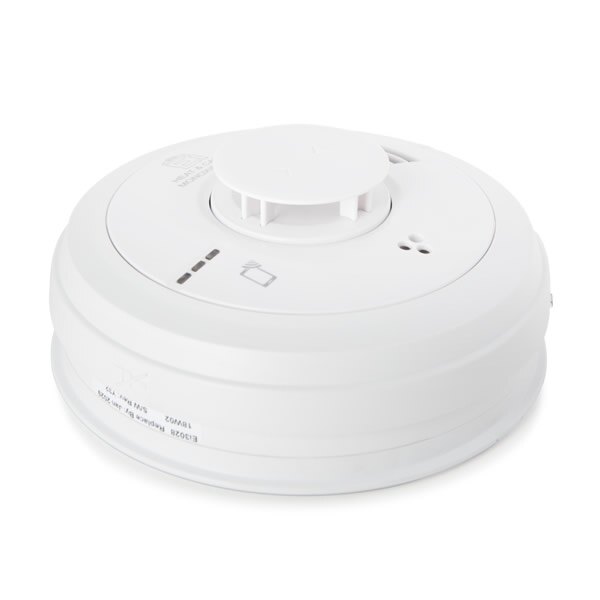

Mains Powered Combined Heat and Carbon Monoxide Alarm with Self-Charging 10 Year Back-up Battery - Aico Ei3028

5 out of 5 stars
£85.79 inc VAT
£71.49 ex VAT
Product Overview

Fitted with heat and carbon monoxide sensors, the Ei3028 is a mains powered combined alarm that can be hardwired with up to 12 other compatible alarms. Fitted with a central test and silence button and tamper-proof, rechargeable lithium back-up battery, this alarm features AudioLINK technology allowing you to extract real time data from the alarm directly to your smart phone. The Ei3028 performs its own self tests every 48 seconds and is compatible with the Ei3000MRF SmartLINK module which allows for radio-interlinking between alarms.

  • Product Lifespan: 10 years
  • Power: 230V mains powered with battery backup
  • Backup Battery: Re-chargeable lithium battery
  • Warranty: 5 year warranty
  • Suitable for ceiling installation
  • Contains both heat and carbon monoxide sensors
  • Suitable for kitchens and garages
  • Available in Optical, Heat, Carbon Monoxide and Optical & Heat
  • 85dB warning alarm at 3m
  • Suitable for BS 5839-6: 2019 Grade D1 installations
  • Different alarm sounds depending on which sensor has been triggered
  • CE and Kitemarked to BS EN 50291-1 (domestic use) and BS 5446-2: 2003
  • AudioLINK allows you to extract real time data from the alarm to your smart phone
  • Hardwire interlink with up to 12 compatible devices including Ei140, Ei160e and Ei2110e alarms
  • SmartLINK compatible with the Ei3000MRF module, boasting new features and radio interlinking between compatible devices
  • Supplied with an Easi-fit baseplate
  • Large combined test and silence button
  • Memory Feature - allows previously activated alarms to be easily identified
  • This alarm is also suitable for both the Welsh and Scottish updated 2022 legislation

Please Note: The Ei3000MRF SmartLINK module for radio interlinking is sold separately

Interlink

The tables below show all the products that can interlink with the Ei3028.

More products may be compatible when installed in conjunction with the Ei3000MRF SmartLINK module. Please see the Ei3028RF bundle for further information.

Smoke and Heat Alarms

Model Number
Type of Unit
Type of Interlink
Ei3014 / Ei3014RF Mains Powered Heat Alarm - Sealed Lithium Hardwire Interlink
Ei3016 / Ei3016RF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei3024 / Ei3024RF Mains Powered Optical & Heat Alarm - Sealed Lithium Hardwire Interlink
Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei2110e / Ei2110eRF Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium Hardwire Interlink
Ei161e / Ei161eRF Mains Powered Ionisation Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei164e / Ei164eRF Mains Powered Heat Alarm - Sealed Lithium Hardwire Interlink
Ei166e / Ei166eRF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei141 / Ei168RC141RC Mains Powered Ionisation Alarm - 9V Alkaline Hardwire Interlink
Ei144 / Ei168RC144RC Mains Powered Heat Alarm - 9V Alkaline Hardwire Interlink
Ei146 / Ei168RC146RC Mains Powered Optical Smoke Alarm - 9V Alkaline Hardwire Interlink

Carbon Monoxide Alarms

Model Number
Type of unit
Type of interlink
Ei3018 / Ei3018RF Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei261 Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink

Ancillary Products

Model Number
Type of unit
Type of interlink
MCP401RC Mains Powered Manual Call Point Hardwire Interlink
Ei1529RC Mains Powered Locate, Silence & Test Control Switch Hardwire Interlink
Ei159 Mains Powered Smoke Alarm Locator Switch Hardware Interlink
Ei128R Mains Powered 5A Relay Module Hardwire Interlink
Ei128RBU Mains Powered 5A Relay Module with Lithium Backup Battery Hardwire Interlink
Y03 Mains Powered Multi Frequency Sounder Hardwire Interlink (via relay)
SAB300C Mains Powered Flashing Xenon Strobe (Clear) Hardwire Interlink (via relay)
SAB300R Mains Powered Flashing Xenon Strobe (Red) Hardwire Interlink (via relay)

Wiring Explained

Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.

To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting all alarms. However, if possible it is recommended that the alarms are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-

Wiring Mains Powered Alarms

Technical Data
Product Code EI3028
Brand EI Electronics
Back-Up Battery

10 year sealed lithium

Dimensions (HxDia)

66 x 150mm

Operating Temperature

0°C to 35°C

Relative Humidity

15% to 95% Relative Humidity

Sound Output

85dB

Weight 0.38kg
Product Datasheets
FAQs (2)
Q. Where should I install my carbon monoxide alarms?
A.

CO detectors should be installed near potential sources of carbon monoxide, essentially any fuel-burning appliances such as boilers, cookers and ovens, fireplaces (both open and enclosed burners), and portable generators. As you are likely to be most affected by CO in areas of your home that you spend the most time in it is advisable to install alarms in those areas as well, such as the living room and bedrooms. It is also worth noting that while one detector is better than no detectors at all, larger homes may require several detectors to cover the property fully.

Also note that carbon monoxide has been proven to spread into neighbouring properties through open windows and, in semi-detached or terrace houses, through loft spaces. If your property has an attached garage with a connecting door through to the house, it is recommended to fit a CO alarm inside the house leading from that doorway.

Battery powered carbon monoxide alarms can typically be installed wall-mounted or left free-standing on flat, level surface.

  • Near an appliance: they should be placed within 1 to 3 metres horizontally from the appliance and between the height of the appliance to 150mm below the ceiling – i.e., not above a stove where it would be in the path of steam or fumes.
  • In living spaces: they should be positioned close to where the occupant's head is likely to be most of the time – e.g., on your bedside table.

Combined smoke & CO alarms or mains-powered CO alarms are typically installed on the ceiling and should be at least 30cm away from any wall, light fitting, or other obstruction.

Do not install CO alarms within 3 metres of doors or windows, above radiators, or immediately close to anything that gives off steam or fumes like a cooker or shower room. Similarly, it is not recommended to install detectors in dusty areas such as workshops or garages.

For more information, please check the manufacturer's instructions – you can download the PDF manual from the relevant product page on our site. You can also watch our video guide to positioning CO detectors.

Q. Where are carbon monoxide alarms required?
A.

Most legislation advises at least one carbon monoxide alarm is fitted near new or replacement fuel-burning appliances that are fixed installations, though rented properties (both social and private sector) often require CO alarms be provided by landlords even if no appliances are being installed or replaced. Examples include boilers, coal fires, wood burners, and gas ovens and cookers, though an exception is often made in legislation for gas appliances solely used for cooking.

However, any and all materials can give off CO when burning, including gas cookers. Carbon monoxide can also spread from neighbouring properties or outside sources such as vehicle fumes. Because of this, Safelincs strongly recommends the installation of carbon monoxide detectors in every home, and also at head-height in bedrooms to protect occupants while sleeping.

Landlords, please see our pages for English, Welsh, and Scottish alarms or our landlord guidance page for more information.

Pricing & Availability

Model Stock Price
Product Code: EI3028 Stock Level:
9 in stock Expected dispatch: Tomorrow
Price:

£85.79 inc VAT

£71.49 ex VAT

Delivery Options

The following delivery options are available on this product.

Standard Delivery

£3.19 inc VAT - Orders will be delivered in 2-3 working days with Evri

Next Working Day Delivery

£6.19 inc VAT - Orders will be delivered the next working day with Evri

For dispatch today order within

Excellent Warranty

This product is supplied with a 5 year manufacturers warranty as standard

Customer Reviews

2 customers have given this product an overall rating of 5 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by: D G

does what it says it does

Published on: 12th January 2021

Rating: 5 / 5 Stars

Reviewed by: D C

Easy to fit, located onto base well, Audio Link excellent

Published on: 22nd December 2020
