This mains powered radio-interlinked ionisation smoke alarm does not require any cable to interlink with other Ei140 series smoke alarms and is ideal for extensions, renovations, and small let properties.
- Power: 230V mains powered with back-up battery
- Backup Battery: 9V alkaline backup battery (included)
- Warranty: 5 year warranty
- Mains powered radio-interlinked smoke alarms as a variation of the Ei141RC ionisation smoke alarm
- Each unit consists of a radio-frequency base-plate and the Ei141RC ionisation smoke alarm sensor
- Requires no cables between units
- Can be powered from the nearest light fitting
- A maximum of 12 units can be interlinked
- Alarms that can be interlinked include:
- Kitemarked to BS EN 14604: 2005
- Suitable for installations complying to Grade D2
- CE marked

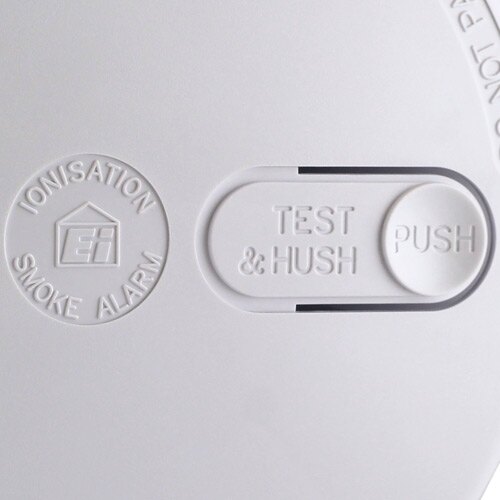

- With test and hush button
- LED display to show correct power supply
- Can transmit up to 30m inside buildings
- Built-in radioLINK repeater function allows for the RF signal to work around obstructions
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes
The table below shows all the units that can interlink with the EI168RC/141RC.
Smoke and Heat Alarms - Radio
Model Number
|
Type of Unit
|
Type of Interlink
|
Ei3014 / Ei3014RF |
Mains Powered Heat Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei3016 / Ei3016RF |
Mains Powered Optical Smoke Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei3024 / Ei3024RF |
Mains Powered Optical & Heat Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei3028 / Ei3028RF |
Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei2110e / Ei2110eRF |
Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei161e / Ei161eRF |
Mains Powered Ionisation Smoke Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei164e / Ei164eRF |
Mains Powered Heat Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei166e / Ei166eRF |
Mains Powered Optical Smoke Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei141 / Ei168RC141RC |
Mains Powered Ionisation Alarm - 9V Alkaline |
Hardwire or Radio Interlink |
Ei144 / Ei168RC144RC |
Mains Powered Heat Alarm - 9V Alkaline |
Hardwire or Radio Interlink |
Ei146 / Ei168RC146RC |
Mains Powered Optical Smoke Alarm - 9V Alkaline |
Hardwire or Radio Interlink |
Ei3100RF |
Battery Powered Ionisation Smoke Alarm - 9V Alkaline |
Radio Interlink |
Ei3103RF |
Battery Powered Heat Alarm - 9V Alkaline |
Radio Interlink |
Ei3105RF |
Battery Powered Optical Smoke Alarm - 9V Alkaline |
Radio Interlink |
Ei603RF |
Battery Powered Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei650RF |
Battery Powered Optical Smoke Alarm - Sealed Lithium |
Radio Interlink |
Carbon Monoxide Alarms
Model Number
|
Type of unit
|
Type of interlink
|
Ei3018 / Ei3018RF |
Mains Powered Carbon Monoxide Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei3028 / Ei3028RF |
Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei262 |
Mains Powered Carbon Monoxide Alarm - Sealed Lithium |
Hardwire or Radio Interlink |
Ei261 |
Mains Powered Carbon Monoxide Alarm - Sealed Lithium |
Hardwire Interlink |
Ei208WRF |
Battery Powered Carbon Monoxide Detector - Sealed Lithium |
Radio Iinterlink |
Ancillary Products
Model Number
|
Type of unit
|
Type of interlink
|
Ei170RF |
Mains Powered Strobe and Vibration Pad for the Hearing Impaired - Sealed Lithium |
Radio Interlink |
Ei407 |
Battery Powered Manual Call Point - Sealed Lithium |
Radio Interlink |
MCP401RC |
Mains Powered Manual Call Point |
Hardwire Interlink |
Ei450 |
Battery Powered Fire and CO Alarm Controller - Sealed Lithium |
Radio Interlink |
Ei411H |
Battery Powered Locate, Silence & Test Control Switch - Sealed Lithium |
Radio Interlink |
Ei410TRF |
Battery Powered Test Remote - Sealed Lithium |
Radio Interlink (Ei3100RF Series) |
Ei1529RC |
Mains Powered Locate, Silence & Test Control Switch |
Hardwire Interlink |
Ei159 |
Mains Powered Smoke Alarm Locator Switch |
Hardware Interlink |
Ei428 |
Mains Powered 5A Relay Module |
Radio Interlink |
Ei128R |
Mains Powered 5A Relay Module |
Hardwire Interlink |
Ei128RBU |
Mains Powered 5A Relay Module with Lithium Backup Battery |
Hardwire Interlink |
Y03 |
Mains Powered Multi Frequency Sounder |
Hardwire Interlink (via relay) |
SAB300C |
Mains Powered Flashing Xenon Strobe (Clear) |
Hardwire Interlink (via relay) |
SAB300R |
Mains Powered Flashing Xenon Strobe (Red) |
Hardwire Interlink (via relay) |
Wiring Explained
Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.
To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting alarms where applicable. However, if possible it is recommended that any alarms connected via interlink cable are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-
Q. For mains powered Aico smoke and heat alarms, when the electricity supply fails and the back up battery takes over, please can you tell me how long the battery will last in this situation?
A. For mains powered Aico alarms with a new, fully charged lithium back up battery, the battery would last approx. 3-6 months without a mains supply. For mains powered Aico alarms with a standard alkaline back up battery, the battery would last up to a year without mains supply. If the alarm has been installed with an Ei168RC radio frequency base, please note that the Ei168RC back up battery would last approx 2 months if the power fails.
Q. Please could you explain how the repeater function works on the Aico/Ei radio interlinked detectors.
A. Hello. The radioLINK repeater function allows the smoke alarm to "repeat" the radio frequency signal around obstructions. This stops the signal from becoming blocked and ensures that all interlinked alarms can be reached. This repeater function is built-in to the the Ei168RC radioLINK base (with Ei140, Ei160 or Ei2110 alarm), the Ei600 series of radio interlinked battery powered smoke and heat alarms as well as the Ei262 and Ei208WRF carbon monoxide alarms as standard. When house coded, the system works itself out which alarms are to act as repeaters - it's not something you set up yourself.
Q. I have added an Ei168RC164RC wireless linked heat detector to my garage some time after the installation of various other wireless Ei160 detectors in the house. What do I have to do to get the system to recognise the new detector please?
A. To get the Ei168RC164RC to communicate with the existing alarms, you would need to housecode all the units again. Press the housecode button on the new Ei168RC base and on each of the existing units.
Q. How do you wire in the Ei140/Ei160 series of smoke alarms?
A. To wire the units correctly you would use 2 core and earth cable to the first unit and 3 core and earth to the interconnected units. The alarms do not have to be earthed but a brass screw connector is provided so that the earth can be safety terminated.
Q. Are there any restrictions to the distance a radio-interlinked smoke alarm will work?
A. Most radio-interlinked alarms have a range of 150 meters in an open space and up to 30 meters in buildings. The thickness of the walls and partitions will affect the travel distance of the signal.
