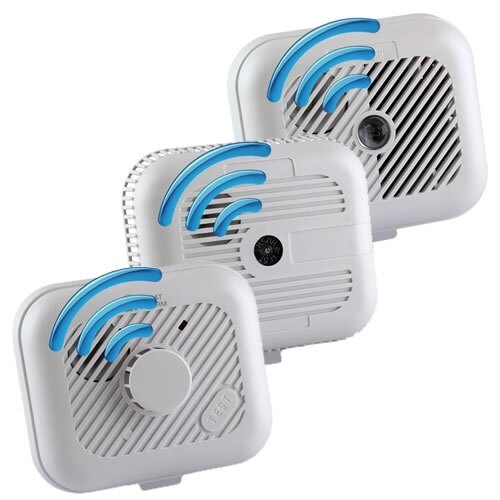

This great value starter kit is comprised of; an Ei3100RF ionisation smoke alarm suitable for landings, an Ei3105RF optical smoke alarm suitable for hallways, living rooms and bedrooms, etc. and an Ei3103RF heat alarm suitable for kitchen or garage installation.
The Ei3100RF series battery powered smoke and heat alarms are each powered by a single 9V battery and feature radio-interlink functionality. Without the need for any wiring whatsoever, the Ei3100RF smoke and heat alarm kit can be quickly and easily installed in the home. The radio-interlink means that should one alarm sound, all alarms in the system will sound.
- Kitemarked to BS EN 14604:2005
- Suitable for installations complying to BS 5839-6: 2019 Grade F2
- Built-in radio-interlink facility allows wireless interlink between multiple alarms
- A maximum of 12 alarms can be interlinked
- Kit comprises of:
- 1 x EI3100RF: Ionisation: for landings
- 1 x EI3105RF: Optical: for hallways, living rooms, bedrooms
- 1 x EI3103RF: Heat detector: for kitchens and garages
- Supplied with alkaline batteries as standard
- RF range over 150 metres in free space and up to 30 metres in buildings
- Digitally coded to avoid interference with neighbouring systems
- Advanced suppression and calibration technology increases reliability
- over 85db at 3m
- Test and hush button (Ei3103RF heat alarm has test ONLY)
- 5 year Warranty
- Supplied with
Please Note: These units use the radio-interlink frequency 868.499MHz. This bandwidth is restricted for safety products, therefore the chances of interference should be limited.
The table below shows all the units that can interlink with the EI3100 Series.
Smoke and Heat Alarms
Model Number
|
Type of Unit
|
Type of Interlink
|
Ei3014RF |
Mains Powered Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei3016RF |
Mains Powered Optical Smoke Alarm - Sealed Lithium |
Radio Interlink |
Ei3024RF |
Mains Powered Optical & Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei3028RF |
Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium |
Radio Interlink |
Ei2110eRF |
Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei161eRF |
Mains Powered Ionisation Smoke Alarm - Sealed Lithium |
Radio Interlink |
Ei164eRF |
Mains Powered Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei166eRF |
Mains Powered Optical Smoke Alarm - Sealed Lithium |
Radio Interlink |
Ei168RC/141RC |
Mains Powered Ionisation Alarm - 9V Alkaline |
Radio Interlink |
Ei168RC/144RC |
Mains Powered Heat Alarm - 9V Alkaline |
Radio Interlink |
Ei168RC/146RC |
Mains Powered Optical Smoke Alarm - 9V Alkaline |
Radio Interlink |
Ei3100RF |
Battery Powered Ionisation Smoke Alarm - 9V Alkaline |
Radio Interlink |
Ei3103RF |
Battery Powered Heat Alarm - 9V Alkaline |
Radio Interlink |
Ei3105RF |
Battery Powered Optical Smoke Alarm - 9V Alkaline |
Radio Interlink |
Ei603RF |
Battery Powered Heat Alarm - Sealed Lithium |
Radio Interlink |
Ei650RF |
Battery Powered Optical Smoke Alarm - Sealed Lithium |
Radio Interlink |
Carbon Monoxide Alarms
Model Number
|
Type of unit
|
Type of interlink
|
Ei3018RF |
Mains Powered Carbon Monoxide Alarm - Sealed Lithium |
Radio Interlink |
Ei3028RF |
Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium |
Radio Interlink |
Ei262 |
Mains Powered Carbon Monoxide Alarm - Sealed Lithium |
Radio Interlink |
Ei208WRF |
Battery Powered Carbon Monoxide Detector - Sealed Lithium |
Radio Iinterlink |
Ancillary Products
Model Number
|
Type of unit
|
Type of interlink
|
Ei170RF |
Mains Powered Strobe and Vibration Pad for the Hearing Impaired - Sealed Lithium |
Radio Interlink |
Ei450 |
Battery Powered Fire and CO Alarm Controller - Sealed Lithium |
Radio Interlink |
Ei411H |
Battery Powered Locate, Silence & Test Control Switch - Sealed Lithium |
Radio Interlink |
Ei407 |
Battery Powered Manual Call Point - Sealed Lithium |
Radio Interlink |
Ei410TRF |
Battery Powered Test Remote - Sealed Lithium |
Radio Interlink (Ei3100RF Series) |
Ei428 |
Mains Powered 5A Relay Module |
Radio Interlink |
Y03 |
Mains Powered Multi Frequency Sounder |
Hardwire Interlink (via relay) |
SAB300C |
Mains Powered Flashing Xenon Strobe (Clear) |
Hardwire Interlink (via relay) |
SAB300R |
Mains Powered Flashing Xenon Strobe (Red) |
Hardwire Interlink (via relay) |
Wiring Explained
Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.
To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting alarms where applicable. However, if possible it is recommended that any alarms connected via interlink cable are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-
