Hochiki ESP Single Input Monitor - Call Point PCB
Product Overview
Compatible Devices
Technical Data

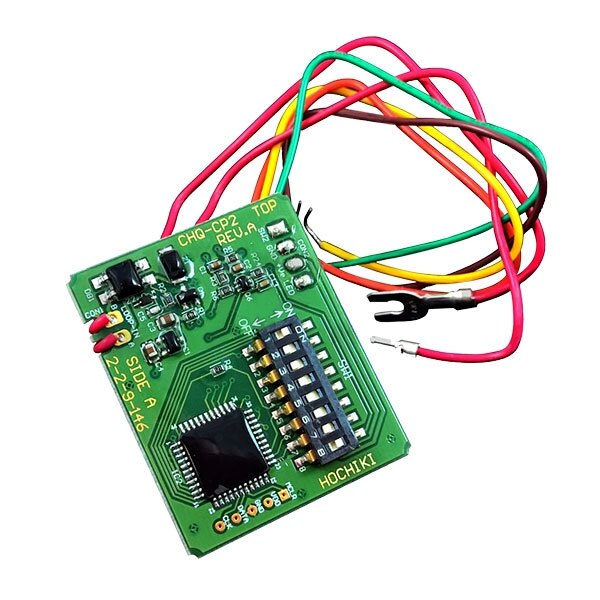

The Hochiki ESP Single Input Monitor is effectively the circuit board of a manual call point designed to add specialist devices, such as manual key-switches, to an ESP-protocol addressable fire alarm system. Powered by the loop and addressed via an integrated 8-bit DIL switch, this input monitor can also drive an external indicator LED that will flash when the unit is polled by the panel and will be continuously lit when the input is activated. The board is self-contained and complete with flying leads for both device input and loop connections, and is supplied without a mounting unit as it is intended to fit onto many different devices for a wide variety of use cases.
- Monitors a single input for specialised activation of an ESP-protocol Addressable Fire Alarm System
- Addressed via built-in 8-bit DIL switch
- Non-polarised loop connections
- Low power consumption via "sleep mode"
- Can drive an external indicator LED
- No case supplied, for flexibility of installation in any situation
- Will be shown on the panel as a call point by default
- Can be used with "explosion proof" conventional call points
- Communicates with the loop via Hochiki's ESP protocol
The tables below show all the units available from Safelincs that are compatible with this device.
Panels and Repeaters
|
Product Code
|
Type of unit
|
Network
|
| Morley DXc1 | Panel - 1 Loop | max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel |
| Morley DXc2 | Panel - 2 Loop | max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel |
| Morley DXc4 | Panel - 4 Loop | max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel |
| Advanced MX-5101 | 1 Loop Panel | max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network |
| Advanced MX-5201 | 1 - 2 Loop Panel | max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network |
| Advanced MX-5401 | 1 - 4 Loop Panel | max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network |
Detectors and Bases
|
Product Code
|
Type of unit
|
MPN
|
| EUHOAOPS | Optical Smoke Detector | ALN-EN |
| EUHOAHEA | Heat Detector | ATJ-EN |
| EUHOAHEAIP | IP67 Weatherproof Heat Detector | ACB-EW |
| EUHOAMUS | Multi-Sensor (Optical + Heat) Detector | ACC-EN |
| EUHOADEB | Standard Detector Base | YBN-R/3 |
| EUHOAISB | Short Circuit Isolator Detector Base | YBN-R/3(SCI) |
| EUHOADEBSO | Sounder Base for Detectors (requires EUHOADEB or EUHOAISB) | YBO-BS |
| EUHOADEBSOBER | Sounder VAD Base for Detectors (requires EUHOADEB or EUHOAISB) | YBO-BSB2/RL |
Manual Call Points
|
Product Code
|
Type of unit
|
MPN
|
| EUHOACAI | Call Point with Isolator | HCP-E(SCI) |
| EUHOACAIW | Weatherproof Call Point with Isolator | HCP-W(SCI) |
| EUHOASBB | Surface Mounting Box (for EUHOACAI) | SR |
Sounders and Beacons
|
Product Code
|
Type of unit
|
MPN
|
| EUHOADEBSO | Sounder Base for Detectors (requires EUHOADEB or EUHOAISB) | YBO-BS |
| EUHOADEBSOBER | Sounder VAD Base for Detectors (requires EUHOADEB or EUHOAISB) | YBO-BSB2/RL |
| EUHOACEBER | Loop Powered Ceiling VAD (red LED) | CHQ-CB/RL |
| EUHOASOB | Mounting Base for Wall Sounders (red) | YBO-R/3(RED) |
| EUHOASOISB | Short Circuit Isolator Mounting Base for Wall Sounders (red) | YBO-R/SCI(RED) |
| EUHOAWASO | Wall Sounder (red) | CHQ-WS2 |
| EUHOAWASOBER | Wall Sounder VAD (red with red LED) | CHQ-WSB2/RL |
Loop Configuration
|
Product Code
|
Type of unit
|
MPN
|
| EUHOAADP | Address Programmer | TCH-B200 |
| EUHOACAPL | Call Point Programming Lead | PL-3 |
| EUHOACAPL2 | Legacy Device Programming Lead | PL-2 |
| EUHOACAP | Single Input Monitor | CHQ-CP(PCB) |
| Product Code | EUHOACAP |
|---|---|
| Alternative Product Codes | CHQ-CP2 |
| Brand | Hochiki |
| Current Consumption | Quiescent: 230?A (typical) Sleep Mode: 38?A (typical) Loop Current (polling): 22mA ±20% Loop Current (alarm, with LED): 5mA |
| Dimensions (HxWxD) | 7mm x 44mm x 36mm |
| Operating Temperature | -10°C to 50°C |
| Operating Voltage | 17 - 31V DC |
| Relative Humidity | 95% RH at 40°C non-condensing |
| Resistance | ON Threshold: < 50? OFF Threshold: > 100k? |
| Storage Temperature | -30°C to 60°C (<80% RH at 60°C) |
| Weight | 0.02kg |
| Product Datasheets |
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
| Product Code: EUHOACAP |
Stock Level:
Available for pre-order Expected dispatch: 15th May
|
Price:
£37.91 inc VAT £31.59 ex VAT |
