Hochiki ESP Combined Optical Smoke and Heat Multi-Sensor Detector

Choose a product To see stock availability

From: £42.47 inc VAT

£35.39 ex VAT

Qty

Product Overview
Compatible Devices
Technical Data

The ESP Multi-Sensor Detector combines Hochiki’s High Performance Chamber optical smoke detection technology, reducing susceptibility to false alarms, with a fixed temperature sensor. From an ESP-compatible panel the detector can be configured to enable the optical chamber, the temperature sensor, or both depending on the installation environment, allowing for optimal detection respsonse. With its variable sensitivity, integrated temperature sensor, and an easily removable smoke chamber for cleaning, the ASX Multi-Sensor Detector can be used in almost any situation.

Available with a standard mounting base, short-circuit isolator base, or without a base
High Performance Chamber for reduced false alarms
Fixed temperature sensor for enhanced fire detection
Variable sensitivity configured from panel
Configure desired sensor mode from your ESP-compatible panel
Twin LEDs allow 360° viewing of detector status
Electronically addressed during installation
Utilises Hochiki ESP Protocol for loop communications
Compatible with Morley DXc and Advanced Electronics' MxPro 5 series panels
Approved by LPCB & VdS
Free BIM Object available from the NBS National BIM Library

Compatible Devices

The tables below show all the units available from Safelincs that are compatible with this device.

Panels and Repeaters

Product Code	Type of unit	Network
Morley DXc1	Panel - 1 Loop	max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel
Morley DXc2	Panel - 2 Loop	max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel
Morley DXc4	Panel - 4 Loop	max. 16 Loops, 126 Devices per Loop; separate DXc Network Card required for each panel
Advanced MX-5101	1 Loop Panel	max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network
Advanced MX-5201	1 - 2 Loop Panel	max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network
Advanced MX-5401	1 - 4 Loop Panel	max. 200 Nodes, 127 Devices per Loop / 200,000 Devices per Network

Detectors and Bases

Product Code	Type of unit	MPN
EUHOAOPS	Optical Smoke Detector	ALN-EN
EUHOAHEA	Heat Detector	ATJ-EN
EUHOAHEAIP	IP67 Weatherproof Heat Detector	ACB-EW
EUHOAMUS	Multi-Sensor (Optical + Heat) Detector	ACC-EN

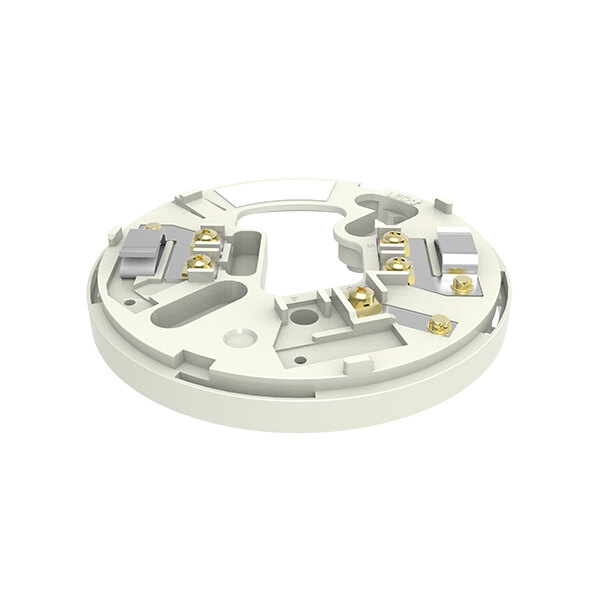

EUHOADEB	Standard Detector Base	YBN-R/3
EUHOAISB	Short Circuit Isolator Detector Base	YBN-R/3(SCI)
EUHOADEBSO	Sounder Base for Detectors (requires EUHOADEB or EUHOAISB)	YBO-BS
EUHOADEBSOBER	Sounder VAD Base for Detectors (requires EUHOADEB or EUHOAISB)	YBO-BSB2/RL

Manual Call Points

Product Code	Type of unit	MPN
EUHOACAI	Call Point with Isolator	HCP-E(SCI)
EUHOACAIW	Weatherproof Call Point with Isolator	HCP-W(SCI)
EUHOASBB	Surface Mounting Box (for EUHOACAI)	SR

Sounders and Beacons

Product Code	Type of unit	MPN
EUHOADEBSO	Sounder Base for Detectors (requires EUHOADEB or EUHOAISB)	YBO-BS
EUHOADEBSOBER	Sounder VAD Base for Detectors (requires EUHOADEB or EUHOAISB)	YBO-BSB2/RL
EUHOACEBER	Loop Powered Ceiling VAD (red LED)	CHQ-CB/RL
EUHOASOB	Mounting Base for Wall Sounders (red)	YBO-R/3(RED)
EUHOASOISB	Short Circuit Isolator Mounting Base for Wall Sounders (red)	YBO-R/SCI(RED)
EUHOAWASO	Wall Sounder (red)	CHQ-WS2
EUHOAWASOBER	Wall Sounder VAD (red with red LED)	CHQ-WSB2/RL

Loop Configuration

Product Code	Type of unit	MPN
EUHOAADP	Address Programmer	TCH-B200
EUHOACAPL	Call Point Programming Lead	PL-3
EUHOACAPL2	Legacy Device Programming Lead	PL-2
EUHOACAP	Single Input Monitor	CHQ-CP(PCB)

Technical Data

Product Code	No Base: EUHOAMUS Standard Base: EUHOAMUSDEB Isolator Base: EUHOAMUSISB
Brand	Hochiki
BIM Object Format	Autodesk Revit
Current Consumption	9.1mA
Dimensions (HxDia)	45mm x 100mm
Manufacturer Part Number	Detector Head: ACC-EN Standard Base: YBN-R/3 Isolator Base: YBN-R/3(SCI)
Operating Humidity	95% RH - Non-Condensing (at 40°C)
Operating Temperature	-10°C to 50°C
Operating Voltage	17 - 41V DC
Storage Humidity	<80% RH at 60°C
Storage Temperature	-30°C to 60°C
Weight	EUHOAMUS: 0.095kg EUHOAMUSDEB: 0.145kg EUHOAMUSISB: 0.175kg
Product Datasheets	EUHOAMUS_Multi-Sensor-Detector_Datasheet EUHOAMUS_Multi-Sensor-Detector_Declaration-of-Performance EUHOAMUS_Multi-Sensor-Detector_EMCD-Certificate EUHOAMUS_Multi-Sensor-Detector_Instructions EUHOAMUS_Multi-Sensor-Detector_LPCB-Certificate EUHOAMUS_Multi-Sensor-Detector_RoHS-Certificate EUHOAMUS_Multi-Sensor-Detector_VdS-Certificate

Pricing & Availability

Model	Stock	Price
No Base Product Code: EUHOAMUS	Stock Level: 3 in stock Expected dispatch: Tomorrow	Price: £42.47 inc VAT £35.39 ex VAT
Standard Base Product Code: EUHOAMUSDEB	Stock Level: 3 in stock Expected dispatch: Tomorrow	Price: £45.59 inc VAT £37.99 ex VAT
Isolator Base Product Code: EUHOAMUSISB	Stock Level: 2 in stock Expected dispatch: Tomorrow	Price: £60.83 inc VAT £50.69 ex VAT
