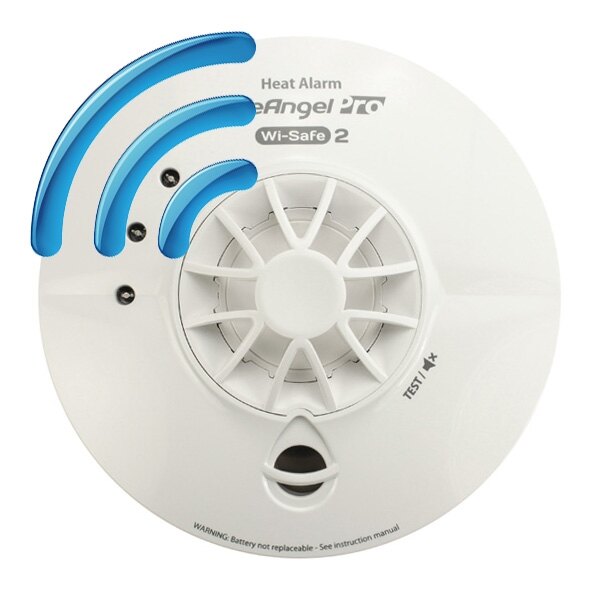

Mains Radio-Interlinked Heat Alarm with Sealed Longlife Back-up Battery - FireAngel Pro WHT-230
Product Overview
Interlink
Technical Data
FAQs (18)
With built-in radio-frequency technology and lifetime back-up battery, the FireAngel Pro WHT-230 mains powered heat alarm can be wirelessly interlinked with up to 50 radio-interlinked alarms within a single system. Designed for areas where a standard smoke alarm would be unsuitable, e.g. kitchens and garages, the WHT-230 heat alarm monitors increase in room temperature.
- Power: 230V mains powered with back-up battery
- Backup: Lithium battery lasts the lifetime of your alarm
- Warranty: Safelincs Exclusive 5 Year Warranty
- Radio-interlinked heat alarm
- CE marked and Kitemarked to BS 5446-2
- Built-in radio-frequency technology
- A maximum of 50 FireAngel Pro WST230 series alarms can be wirelessly interlinked
- Radio-frequency range: 200m in free space, up to 35m in buildings
- Detects rate of increase in room temperature
- Installed where standard smoke alarms would be unsuitable e.g. kitchen, garage, etc.
- Test, hush and Sleep Easy™ function
- Locate function: allows you to find the alarm that activated the system
- Suitable for installations complying to BS 5839-6: 2019 Grade D1
- An interlinked system provides the earliest possible warning of fire
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes
In a wireless-only system the maximum number of compatible units that can interlink is 50, while a hard-wired-only system is limited to 30 units. In a mixed hard-wired and wireless alarm system these maximum quantities can be exceeded.
For each "group" of hard-wired alarms in a system, only one should be a wireless model. For example, in a 3 storey house you could hard-wire 2x ST-230 and 1x WST-230 alarms together on each floor with all of the WST-230 models wirelessly interlinked to each other. This can technically be done to a maximum of 50 groups of 30 alarms, though FireAngel has not designed, optimised, or tested these alarms for such a large system. Having so many alarms interlinked would create large communication delays between the alarms, potentially resulting in occupants not being given adequate warning of a fire. It is heavily recommended that customers desiring a large amount of alarms for a single property instead look into full Fire Alarm Systems which are designed for larger premises.
The tables below show all the units that can interlink with the FireAngel Pro Wi-Safe 2 alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| WST-230 | Mains Powered Optical Smoke Alarm | Radio-interlinked or Hard-wire interlink |
| WHT-230 | Mains Powered Heat Alarm | Radio-interlinked or Hard-wire interlink |
| ST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| HT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
Compatible Alarms
|
Model Number
|
Type of unit
|
Type of interlink
|
| WST637 | Optical Smoke Alarm | Radio-interlinked |
| WHT637 | Heat Alarm | Radio-interlinked |
Carbon Monoxide Alarms
|
Model Number
|
Type of unit
|
Type of interlink
|
| W7-CO-10X | Carbon Monoxide Alarm | Radio-interlinked |
Ancillary Products
|
Model Number
|
Type of unit
|
Type of interlink
|
| W2-SVP-630 | Wireless Strobe and Vibrating Pad | Radio-interlinked |
| W2-LFS-630 | Wireless Low Frequency Sounder | Radio-interlinked |
| Product Code | FAWHT230 |
|---|---|
| Alternative Product Codes | WHT230, WHT-230 |
| Brand | FireAngel |
| Back-Up Battery | Self-Charging Lithium Battery |
| Dimensions (HxDia) | 52x141mm |
| Operating Temperature | -10°C to +45°C |
| Relative Humidity | Up to 90% |
| Sound Output | 85dB |
| Warranty | 5 Years |
| Weight | 0.28kg |
| Product Datasheets |
Q. I want to install an interlinked smoke alarm system throughout my home, but what type of smoke alarms do I need in different rooms?
A.
We recommend a heat alarm in the kitchen, optical alarms in living rooms and hallway and ionisation alarms on landings.
Q. Why do your mains powered alarms have batteries?
A.
All our mains powered alarms have a battery backup. Although mains powered alarms without this option do exist (BS5839 part 6 grade E), we regard them as far too dangerous, as a lot of fires are caused by electrical faults leaving the building unprotected against fire if the smoke alarms have no backup battery. With our mains powered alarms you will always be protected.
Q. What is the best way to test my alarm?
A.
We recommend testing alarms by pressing the test button built-in to the unit, as this is designed to simulate the detection of the target stimuli (usually smoke, heat, or CO) at the alarm sensor. You should test your alarms regularly to ensure they are protecting building occupants, preferably every week. For more detailed guidance, check the manual included with your alarm.
Q. Are there any restrictions to the distance a radio-interlinked smoke alarm will work?
A.
Most radio-interlinked alarms have a range of 150 meters in an open space and up to 30 meters in buildings. The thickness of the walls and partitions will affect the travel distance of the signal.
Q. How long do smoke alarms last before needing replacement?
A.
Show All It is recommended that smoke alarms are replaced after 10 years. This is because the sensors in the smoke alarms become less sensitive and may not activate when a fire is present.
Key Product Features
Test and hush button built in to thermistor cover
Break-out tab for seamless trunk wiring
3 colour LEDs tell you its status at a glance
Screws and rawl plugs for installation are included
What's Included?
Every FireAngel FAWHT230 is supplied with the following components.
- 1 x FireAngel WHT-230 wireless heat alarm
- 1 x Sealed self-charging lithium battery
- 2 x Screws & rawl plugs
- 1 x Instruction manual
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
| Product Code: FAWHT230 |
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
|
Price:
£83.99 inc VAT £69.99 ex VAT |
