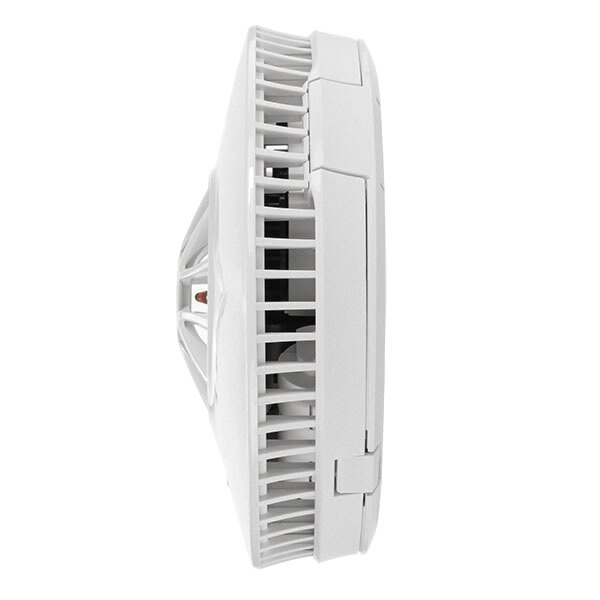

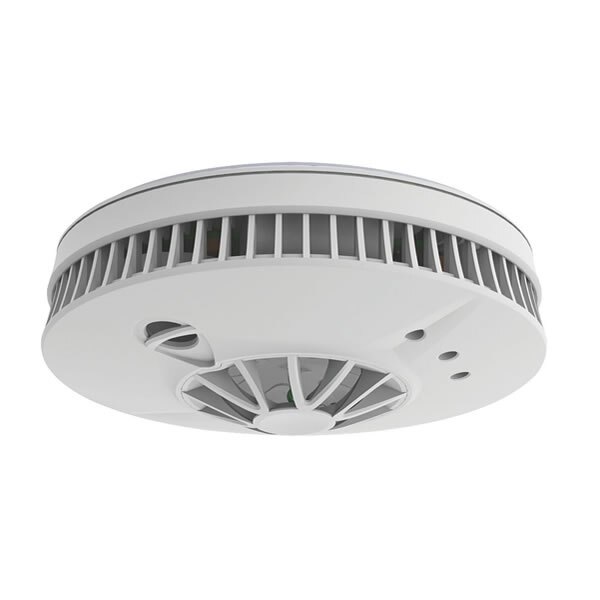

Mains Powered Heat Alarm with Sealed Longlife Back-up Battery - FireAngel Pro HT-230
Discontinued Product
This product has been discontinued.
alternative product
Mains Radio-Interlink Smoke & Heat Alarms with Back-up - FireAngel Pro Connected
- Power: 230V mains powered with sealed longlife back-up battery
- Available in Optical and Heat versions (FP1640W2-R and FP1740W2-R)
- Interlinks via radio frequency with up to 50 units
- Kitemarked, CE marked and suitable for BS 5839-6: 2019 Grade D1 installations
- Compatible with the FireAngel Pro Connected Gateway
- Please note: alarms are sold individually
- Also suitable for the 2022 Scottish legislation
£80.15 inc VAT
£66.79 ex VAT
Product Overview
Interlink
Technical Data
FAQs (4)
Mains powered with a self-charging lifetime lithium back-up battery, the FireAngel Pro HT-230 heat alarm can be hard-wire interlinked with up to 30 alarms within a single system. The HT-230 heat alarm is quick to detect increase in room temperature, making it ideal for areas where a smoke alarm would be prone to false activation, such as kitchens and garages.
- Power: 230V mains powered with back-up battery
- Backup: Lithium battery lasts the lifetime of your alarm
- Warranty: 1 year warranty
- CE marked and Kitemarked to BS EN 5446-2
- A maximum of 30 FireAngel Pro alarms can be hard-wire interlinked
- Suitable for installations complying to BS 5839-6: 2019 Grade D1
- Detects rate of increase in room temperature rather than smoke
- Ideal for use where a smoke alarm would be prone to false activation
- Easy to use test, hush and Sleep Easy™ function
- Locate function: allows you to find the alarm that activated the system
- Tamper-proof mounting plate locks the alarm head in place
- Sleek, stylish design
- Typically installed in kitchen areas and garages
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- This alarm is also suitable for both the Welsh and Scottish updated 2022 legislation
In a wireless-only system the maximum number of compatible units that can interlink is 50, while a hard-wired-only system is limited to 30 units. In a mixed hard-wired and wireless alarm system these maximum quantities can be exceeded.
For each "group" of hard-wired alarms in a system, only one should be a wireless model. For example, in a 3 storey house you could hard-wire 2x ST-230 and 1x WST-230 alarms together on each floor with all of the WST-230 models wirelessly interlinked to each other. This can technically be done to a maximum of 50 groups of 30 alarms, though FireAngel has not designed, optimised, or tested these alarms for such a large system. Having so many alarms interlinked would create large communication delays between the alarms, potentially resulting in occupants not being given adequate warning of a fire. It is heavily recommended that customers desiring a large amount of alarms for a single property instead look into full Fire Alarm Systems which are designed for larger premises.
The table below shows all the units that can interlink with the FireAngel Pro alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| WST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| WHT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
| ST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| HT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
| Product Code | FAHT230 |
|---|---|
| Alternative Product Codes | HT-230 |
| Brand | FireAngel |
| Back-Up Battery | Self-charging Lithium Battery |
| Dimensions (HxDia) | 52x141mm |
| Operating Temperature | -10°C to +45°C |
| Relative Humidity | Up to 90% |
| Sound Output | 85dB |
| Warranty | 1 Years |
| Weight | 0.23kg |
| Product Datasheets |
Q. I want to install an interlinked smoke alarm system throughout my home, but what type of smoke alarms do I need in different rooms?
A.
We recommend a heat alarm in the kitchen, optical alarms in living rooms and hallway and ionisation alarms on landings.
Q. Can a smoke alarm be fitted with a sticky adhesive pad in a let property?
A.
The sticky pad is suitable for all battery operated smoke alarms. However, we cannot judge if battery alarms are suitable for your let property, as let properties usually require mains powered alarms. There is some advice to this in the governments guides to fire risk assessments. http://www.safelincs.co.uk/Fire-Risk-Assessment/ Also see the LACoRS guide for let properties.
Q. is there a different alarm sound for optical and heat sensors to tell you the difference in what kind of fire it is?
A.
There is only one alarm sound type when a fire is detected, when interconnected all smoke and heat alarms will sound. However only the triggered alarm will have a rapidly flashing red indicator.
Q. What sort of smoke alarm system would I need to install for a HMO?
A.
BS 5839-6 recommends that one or two storey HMOs with an individual floor area of no more than 200sqm (not the total of both floors) should have a Grade D smoke alarm system installed. Grade D refers to mains powered smoke alarms with a back up battery power supply. The alarms can be interlinked either by wire or by radio signal and the system does not require a separate fire alarm panel. For HMOs of 3 storey or higher, a Grade A panel system would need to be installed. This can cover the whole of the building, or can be used just for the communal areas with a separate Grade D system installed for the individual dwellings. For both applications, the level of cover should be a minimum of LD3 (in all escape routes) but this may change according to the fire risk assessment.
Key Product Features
Test and hush button built in to thermistor cover
Break-out tab for seamless trunk wiring
3 colour LEDs tell you its status at a glance
Includes screws and rawl plugs for installation
What's Included?
Every FireAngel FAHT230 is supplied with the following components.
- 1 x FireAngel Pro HT-230 heat alarm
- 1 x Self-charging lithium battery
- 2 x Screws & rawl plugs
- 1 x Instruction manual
Approved Partner
Customer Reviews
1 customer has given this product an overall rating of 5 out of 5
Reviews by real customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.Rating: 5 / 5 Stars
Reviewed by:
replaced different manufacuter (Firex) with this one easily
Published on: 22nd February 2017
