Mains Radio-Interlink Smoke Alarms & Heat Alarms with Sealed Longlife Back-up Battery - FireAngel Pro 230 Series
Discontinued Product
This product has been discontinued.
alternative product
10 Year Longlife Battery Radio-Interlink Smoke and Heat Alarms - FireAngel Pro Connected
- Battery operated – 10 year sealed lithium battery
- Available in Optical and Heat versions (FP2620W2-R and FP1720W2-R)
- Interlinks via radio frequency with up to 50 units
- Kitemarked, CE marked and suitable for BS 5839-6: 2019 Grade F1 installations
- Compatible with the FireAngel Pro Connected Gateway
- Please note: alarms are sold individually
- Also suitable for the 2022 Scottish legislation
£50.27 inc VAT
£41.89 ex VAT
Product Overview
Interlink
Technical Data

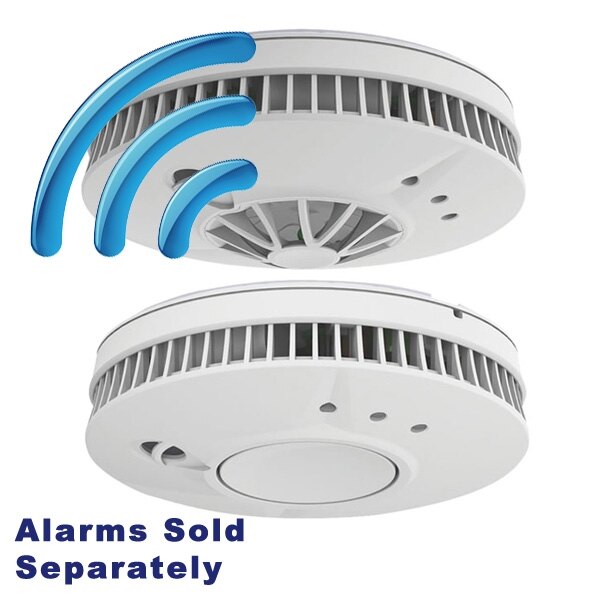

Available in two versions for smoke or heat detection, the FireAngel Pro mains powered radio-interlinked alarms have a 10 year life and feature a sealed longlife lithium back-up battery to continue powering the units after a mains failure for the full lifespan of the alarms. The built-in radio-frequency technology enables up to 50 alarms to be wirelessly interlinked within the same system. Providing the earliest possible warning of fire, if one radio-interlinked alarm detects smoke or heat, all other alarms within the same system will also activate.
- Suitable for installations complying to BS 5839-6: 2019 Grade D1
- Kitemarked to BS EN 14604 (optical smoke) and BS 5446-2 (heat alarm)
- Built-in radio-frequency technology allows wireless interlinking
- A maximum of 50 radio-interlinked alarms can be interlinked
- 230V mains powered with sealed longlife lithium back-up battery – never needs replacing!
- No need to replace back-up battery for the life of the alarm
- Available in two versions:
- WST-230: Optical smoke alarm - for hallways, living rooms and bedrooms
- WHT-230: Heat alarm - for kitchens and garages
- Radio-frequency range: 200m in free space, up to 35m in buildings
- Sold as single units
- 1 year warranty
- Loud 85dB warning alarm
- Test, hush and Sleep-Easy" function
- Frustration-free! No more beeping during the night because the battery needs changing
- Locate function: allows you to find the alarm that activated the system
- An interlinked system provides the earliest possible warning of fire
- Please note: alarms are sold individually
- This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes
In a wireless-only system the maximum number of compatible units that can interlink is 50, while a hard-wired-only system is limited to 30 units. In a mixed hard-wired and wireless alarm system these maximum quantities can be exceeded.
For each "group" of hard-wired alarms in a system, only one should be a wireless model. For example, in a 3 storey house you could hard-wire 2x ST-230 and 1x WST-230 alarms together on each floor with all of the WST-230 models wirelessly interlinked to each other. This can technically be done to a maximum of 50 groups of 30 alarms, though FireAngel has not designed, optimised, or tested these alarms for such a large system. Having so many alarms interlinked would create large communication delays between the alarms, potentially resulting in occupants not being given adequate warning of a fire. It is heavily recommended that customers desiring a large amount of alarms for a single property instead look into full Fire Alarm Systems which are designed for larger premises.
The tables below show all the units that can interlink with the FireAngel Pro Wi-Safe 2 alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| WST-230 | Mains Powered Optical Smoke Alarm | Radio-interlinked or Hard-wire interlink |
| WHT-230 | Mains Powered Heat Alarm | Radio-interlinked or Hard-wire interlink |
| ST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| HT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
Compatible Alarms
|
Model Number
|
Type of unit
|
Type of interlink
|
| WST637 | Optical Smoke Alarm | Radio-interlinked |
| WHT637 | Heat Alarm | Radio-interlinked |
Carbon Monoxide Alarms
|
Model Number
|
Type of unit
|
Type of interlink
|
| W7-CO-10X | Carbon Monoxide Alarm | Radio-interlinked |
Ancillary Products
|
Model Number
|
Type of unit
|
Type of interlink
|
| W2-SVP-630 | Wireless Strobe and Vibrating Pad | Radio-interlinked |
| W2-LFS-630 | Wireless Low Frequency Sounder | Radio-interlinked |
| Product Code |
|
||||
|---|---|---|---|---|---|
| Brand | FireAngel | ||||
| Back-Up Battery | Sealed longlife lithium |
||||
| Dimensions (HxDia) | WST-230 Thermoptek Smoke Alarm: 52x141mm WHT-230 Heat Alarm: 52x141mm |
||||
| Operating Temperature | -10 °C to +45 °C |
||||
| Radio Linking Frequency | 868.3MHz |
||||
| Radio-Frequency Range | Free Space: Up to 200m In Buildings: Up to 35m |
||||
| Sound Output | 85dB |
||||
| Weight | 0.28kg | ||||
| Product Datasheets |
