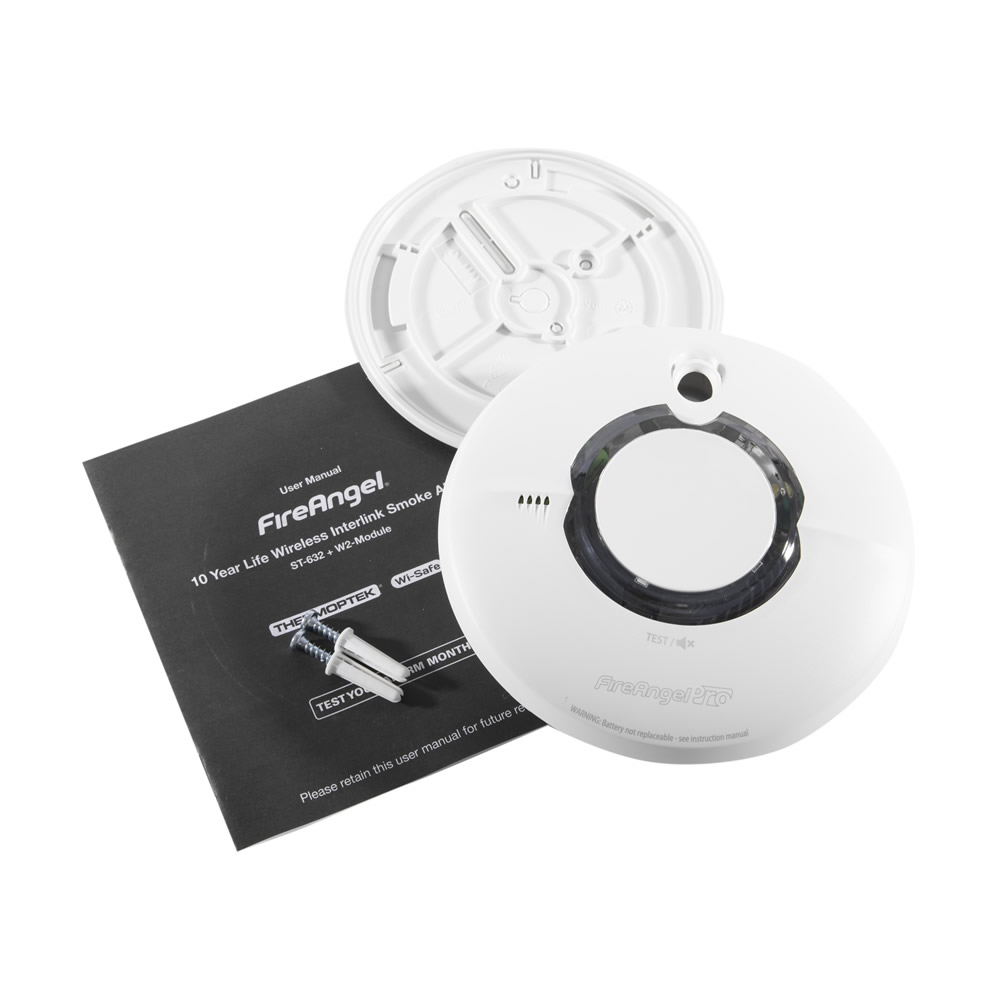

10 Year Longlife Battery Radio-Interlinked Smoke Alarm - FireAngel Pro Connected FP2620W2-R

Perfect for bedrooms, hallways and living rooms, the FireAngel Pro Connected FP2620WR-2 Thermally Enhanced Optical Smoke Alarm features a 10 year sealed longlife battery and radio-frequency technology that allows wireless interlinking with up to 50 compatible devices. This smoke alarm can also connect directly to the FireAngel Pro Connected Gateway to provide enhanced diagnostic capabilities and real time notifications to a mobile device.

Suitable for bedrooms, living rooms, hallways and landing areas
Battery: Built-in, lasts the life time of your product – GUARANTEED
Warranty: 5 year warranty
CE marked and Kitemarked to BS EN 14604: 2005
Suitable for BS 5839-6: 2019 Grade F1 installations
Central button provides test, hush and locate functions
Can be wirelessly interlinked with up to 50 Wi-Safe 2 or Pro Connected devices
An interlinked system ensures that the earliest warning of danger can be achieved
Radio-frequency range: 200m in free space, up to 35m in buildings
FireAngel Pro Connected Gateway (sold separately) can send notifications of alarm activations to your phone
When activated the alarm sounds at a loud 85dB
The FP2620WR-2 includes an ST-632 alarm head with W2 module
This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes

Interlink

The table below shows all the units that can interlink with the FireAngel Pro Connected range.

Alarms from the Same Series

Model Number	Type of Unit	Type of Interlink
FP1640W2-R	Mains Powered Wireless Smoke Alarm	Radio-Interlink
FP1740W2-R	Mains Powered Wireless Heat Alarm	Radio-Interlink
FP2620W2-R	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
FP1720W2-R	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink
FP1820W2-R	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Compatible Smoke and Heat Alarms

Model Number	Type of Unit	Type of Interlink
WST-230	Mains Powered Wireless Smoke Alarm	Radio-Interlink
WHT-230	Mains Powered Wireless Heat Alarm	Radio-Interlink
WST-630	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
WHT-630	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink

Compatible Carbon Monoxide Alarms

Model Number	Type of Unit	Type of Interlink
W7-CO-10X	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Ancillary Products

Model Number	Type of Unit	Type of Interlink
FP1000W2-R	Mains Powered Wireless Interlink Gateway	Radio-Interlink
FP1014W2-R	Longlife Battery Wireless Alarm Control Unit	Radio-Interlink
W2-SVP-630	Wireless Strobe and Vibrating Pad	Radio-Interlink
W2-LFS-630	Wireless Low Frequency Sounder	Radio-Interlink

Technical Data

Product Code	FAPCBSW
Alternative Product Codes	FP2620W2-R, WST-630, WST630
Brand	FireAngel
Battery Type	10 Year Sealed Lithium (Panasonic)
Dimensions (HxDia)	40.5 x 132mm
Operating Humidity	Up to 90% RH non-condensing
Operating Temperature	+4°C to +38°C
Radio-Frequency Range	Free Space: 200m In Buildings: 35m
Sound Output	85dB (minimum) at 3m
Storage Temperature	20°C to +60°C
Warranty	5 years
Weight	0.21kg
Product Datasheets	FireAngel-FP2620W2-R-Smoke-Alarm-Data-Sheet FireAngel-FP2620W2-R-Smoke-Alarm-Instructions
