Mains Radio-Interlink Smoke Alarms & Heat Alarms with Sealed Longlife Back-up Battery - FireAngel Pro Connected Series

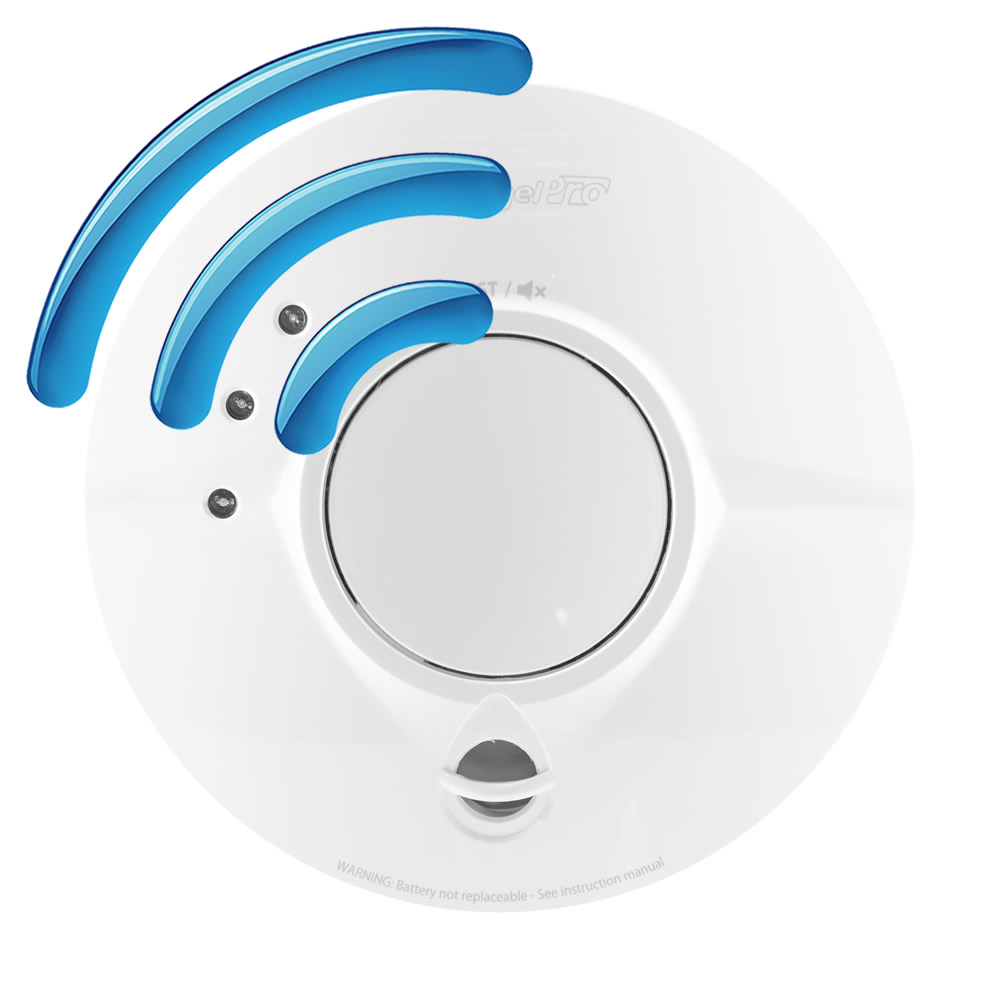

Mains Radio-Interlink Smoke Alarm with Sealed Longlife Back-up Battery - FireAngel FP1640W2-R

Product Overview
Interlink
Technical Data

Product Overview

Available in two versions for smoke or heat detection, the FireAngel Pro Connected mains powered radio-interlinked alarms feature 10 year sealed longlife back-up batteries and can connect wirelessly with up to 50 devices to provide the earliest warning of danger. These alarms can also connect directly with the FireAngel Pro Connected Gateway which allows users to receive mobile notifications of alarm activations to their mobile device. Suitable for BS 5839-6: 2019 Grade D1 installations.

230V mains powered with sealed longlife back-up battery
Available in two versions:
- Optical Smoke Alarm (FP1640W2-R)
- Heat Alarm (FP1740W2-R)
Central button provides test, hush and locate functionality
Suitable for BS 5839-6: 2019 Grade D1 installations
1 year warranty
Can be wirelessly interlinked with up to 50 Wi-Safe 2 or Pro Connected devices
Compatible with the FireAngel Pro Connected Gateway (sold separately) which can send notifications of alarm activations to your phone
CE and Kitemarked to all relevant British Standards
- BS EN 14604: 2005 (FP1640W2-R)
- EN 5446-2: 2003 (FP1740W2-R)
Sounds a loud 85db alarm when activated
An interlinked system provides the earliest possible warning of danger
Please note: alarms are sold individually
This alarm is also suitable for both the Welsh and Scottish updated 2022 legislation

Interlink

The table below shows all the units that can interlink with the FireAngel Pro Connected range.

Alarms from the Same Series

Model Number	Type of Unit	Type of Interlink
FP1640W2-R	Mains Powered Wireless Smoke Alarm	Radio-Interlink or Hard-Wire Interlink
FP1740W2-R	Mains Powered Wireless Heat Alarm	Radio-Interlink or Hard-Wire Interlink
FP2620W2-R	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
FP1720W2-R	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink
FP1820W2-R	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Compatible Smoke and Heat Alarms

Model Number	Type of Unit	Type of Interlink
WST-230	Mains Powered Wireless Smoke Alarm	Radio-Interlink or Hard-Wire Interlink
WHT-230	Mains Powered Wireless Heat Alarm	Radio-Interlink or Hard-Wire Interlink
ST-230	Mains Powered Optical Smoke Alarm	Radio-Interlink or Hard-Wire Interlink
HT-230	Mains Powered Heat Alarm	Radio-Interlink or Hard-Wire Interlink
WST-630	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
WHT-630	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink

Compatible Carbon Monoxide Alarms

Model Number	Type of Unit	Type of Interlink
W7-CO-10X	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Ancillary Products

Model Number	Type of Unit	Type of Interlink
FP1000W2-R	Mains Powered Wireless Interlink Gateway	Radio-Interlink
FP1014W2-R	Longlife Battery Wireless Alarm Control Unit	Radio-Interlink
W2-SVP-630	Wireless Strobe and Vibrating Pad	Radio-Interlink
W2-LFS-630	Wireless Low Frequency Sounder	Radio-Interlink

Technical Data

Product Code	FP1640W2-R Optical Smoke Alarm: FAPCMSW FP1740W2-R Heat Alarm: FAPCMHW
Brand	FireAngel
Back-Up Battery	10 Year Sealed Lithium (Panasonic)
Dimensions (HxDia)	FP1640W2-R: 43 x 141mm FP1740W2-R: 53 x 142mm
Operating Humidity	Up to 90% RH non-condensing
Operating Temperature	+4°C to +38°C
Power Type	230V Mains Powered with Back-up Battery
Radio-Frequency Range	In Buildings: 35m Free Space: 200m
Sound Output	85dB (minimum) at 3m
Storage Temperature	-20°C to +60°C
Weight	0.29kg
Product Datasheets	FireAngel-FP1640W2-R-Smoke-Alarm-Data-Sheet FireAngel-FP1640W2-R-Smoke-Alarm-Instructions FireAngel-FP1740W2-R-Heat-Alarm-Data-Sheet FireAngel-FP1740W2-R-Heat-Alarm-Instructions

Pricing & Availability

Model	Stock	Price
FP1640W2-R Optical Smoke Alarm Product Code: FAPCMSW	Stock Level: More than 20 in stock Expected dispatch: Today	Price: £75.59 inc VAT £62.99 ex VAT
FP1740W2-R Heat Alarm Product Code: FAPCMHW	Stock Level: More than 20 in stock Expected dispatch: Today	Price: £75.59 inc VAT £62.99 ex VAT
