Dorgard Fire Door Retainers

175 Customer Reviews
1+ units 5+ units 10+ units

£103.79 inc VAT

£86.49 ex VAT

£98.99 inc VAT

£82.49 ex VAT

£97.67 inc VAT

£81.39 ex VAT

£103.79 inc VAT

£86.49 ex VAT

£98.99 inc VAT

£82.49 ex VAT

£97.67 inc VAT

£81.39 ex VAT

£103.79 inc VAT

£86.49 ex VAT

£98.99 inc VAT

£82.49 ex VAT

£97.67 inc VAT

£81.39 ex VAT

Product Overview

DORGARD PRICE GUARANTEE - CALL US ON 0800 612 6537 AND WE WILL BEAT ANY COMPETITOR'S PRICE

Dorgard with FREE SHIPPING and free extended 5 Year Warranty from Safelincs.

The Dorgard is a safe and legal solution that allows you to hold your fire doors open safely, while automatically closing them in the event of a fire. This allows for better wheelchair access, ventilation and all-round convenience without jeopardising safety or breaking the law.

  • Free extended 5 year warranty from Safelincs
  • Free shipping
  • Dorgard now conforms to BS 7273-4:2007 Category B
  • Tested and certified to BS EN 1155:1997 & BS EN 1634
  • Suitable for 120 minute fire doors up to EN power size 7
  • Easy to follow self installation in under five minutes
  • Dorgard is entirely wireless and self contained
  • No need to hard wire into the building's fire alarm system - saves on installation time, costs and mess
  • Battery operated, supplied with 2 x C size alkaline batteries
  • Works with your existing fire alarm system
  • Can hold the door open in any selected angle
  • Dorgard automatically releases the fire door upon hearing the fire alarm
  • Installed in schools, hospitals nursing homes and many other public buildings
  • Dorgard kit contents
  • Manufactured in the UK

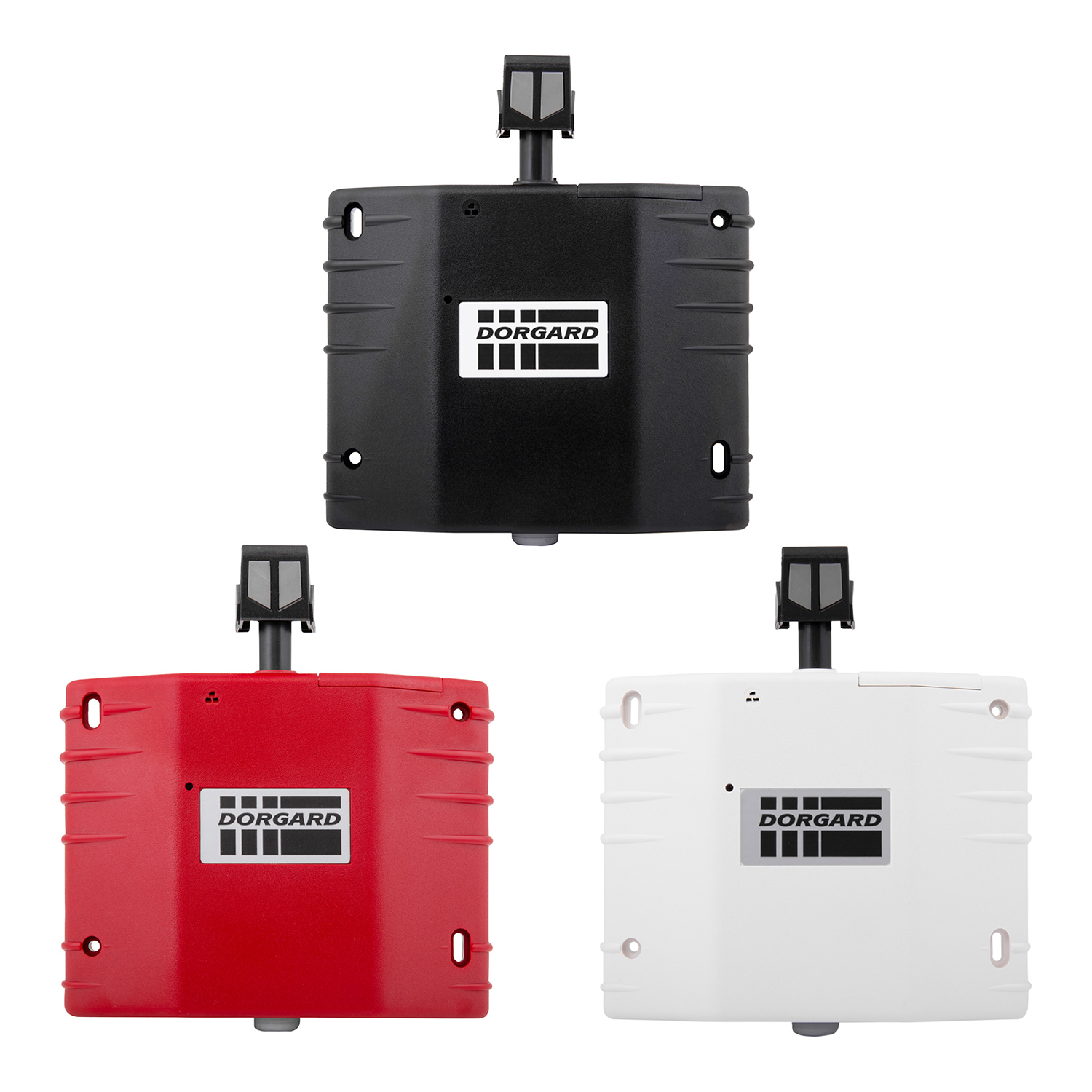

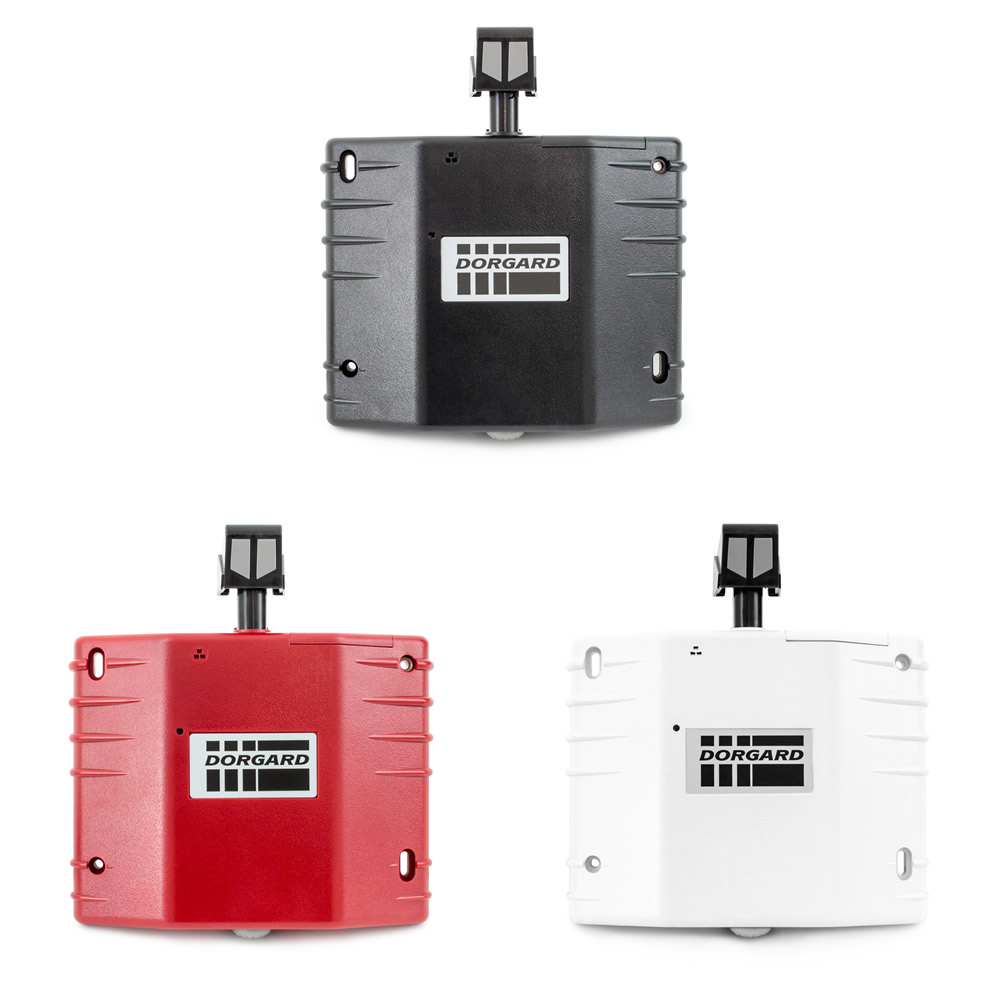

  • Smart, unobtrusive design available in a choice of black, white and red
  • Easy foot-operated setting and release
  • Automatic night-time release feature
  • Improves access for wheelchair users in line with the Disability Discrimination Act (DDA)

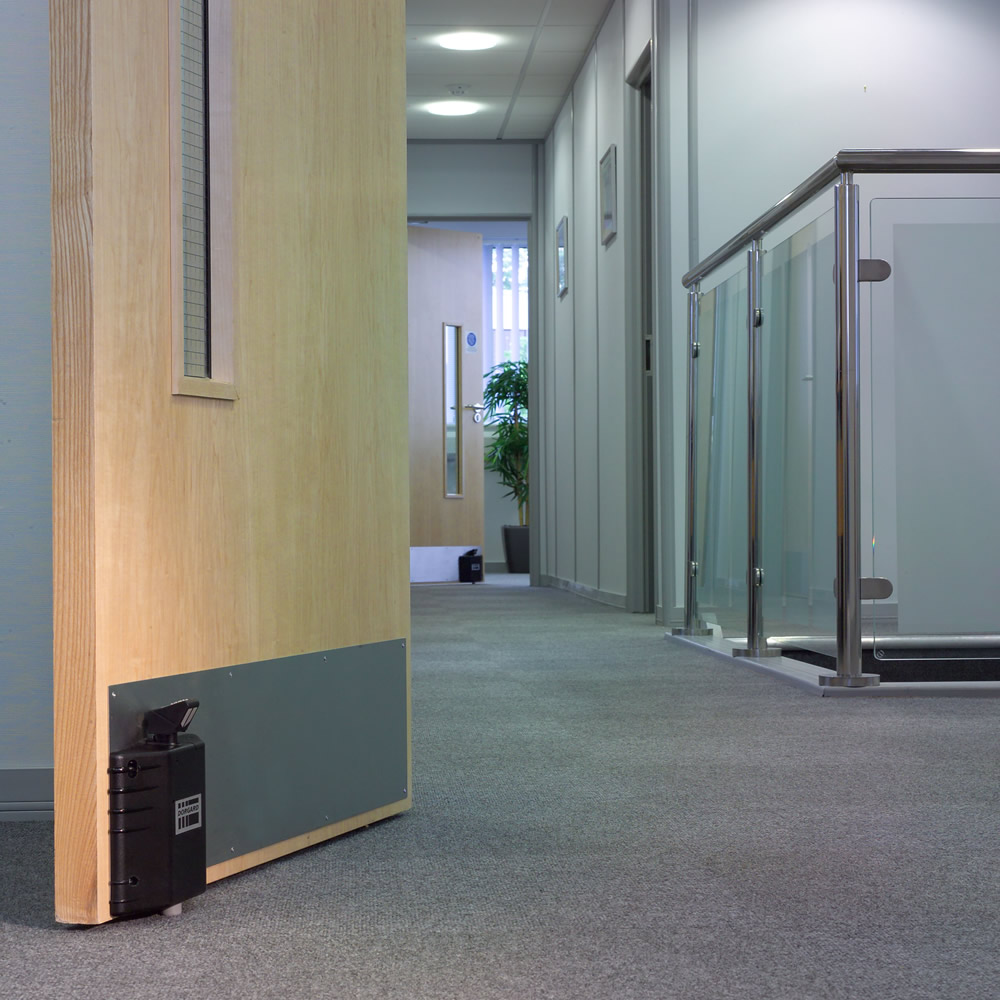

Dorgard has a rubber plunger/stopper which remains in contact with the floor and, unlike magnetic fire door retainers, can hold the door open in any selected position. When a fire alarm sounds, the integral audio-electronic device inside the Dorgard signals the plunger to retract, allowing the fire door close normally (Dorgard will release after approximately 14 seconds). Dorgard is battery powered, so there is no need for complex and expensive wiring into the building's fire alarm system. This means that the Dorgard can be installed and operated alongside any existing fire alarm system currently in place. Please note that your alarm's sound level has to be higher than 65dB at the location of the door to ensure that the Dorgard is able to pick the alarm up. This is also the required alarm sound level for populated areas according to BS5839-1:2002 (Clause 16.2).

Animation showing how the Dorgard works
Technical Diagram
Diagram showing the Dorgard dimensions
Overall Dorgard height: 205mm
Dorgard main casing height: 153mm
Dorgard width: 195mm
Dorgard depth: 45mm
Plunger / Stopper travel: 20mm
Packed Dorgard kit weight 940g
Casing material ABS
Battery: 2 x C alkaline
Battery life expectancy +12 months

Dorgard Technical Diagram

Technical digram showing the individual parts of the Dorgard unit

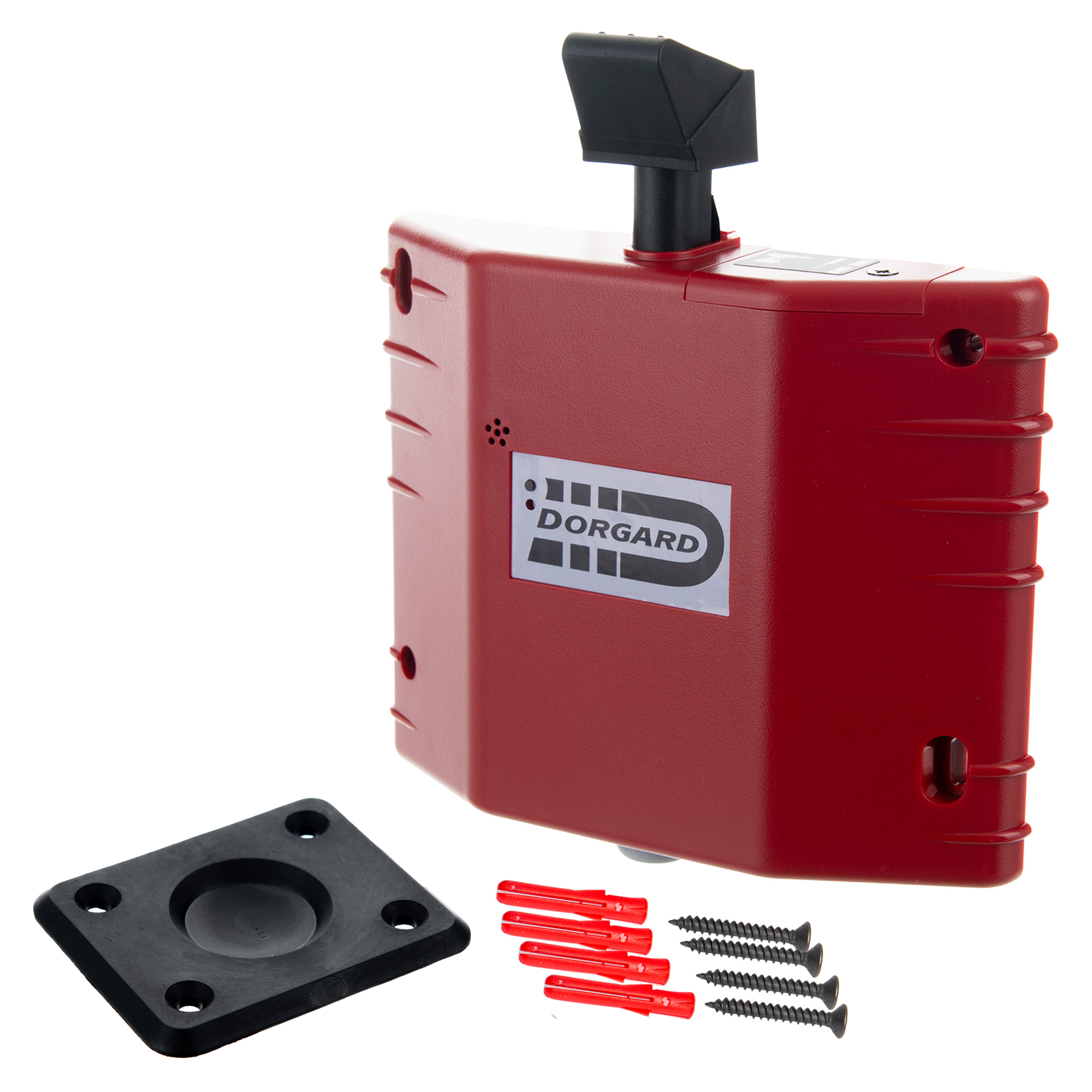

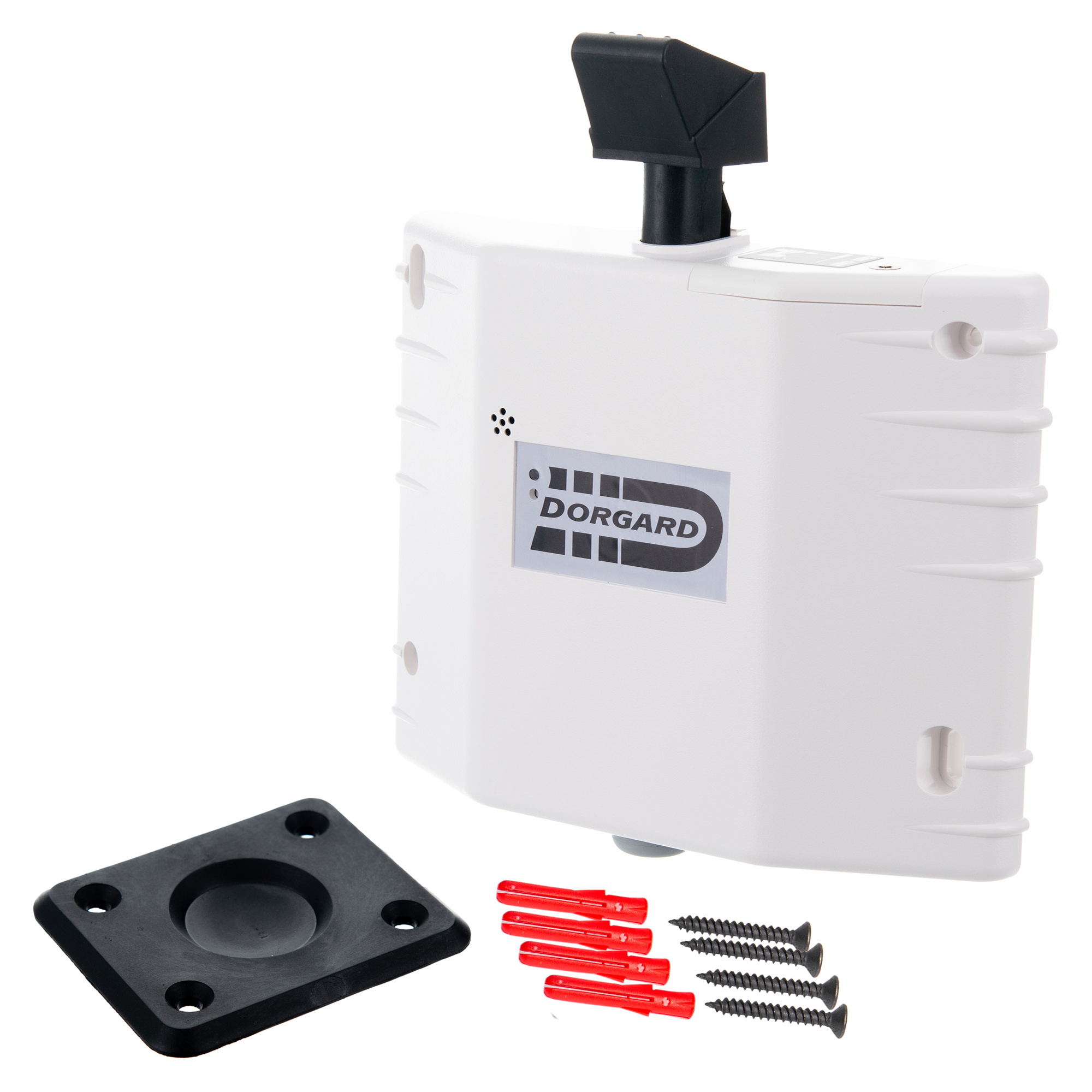

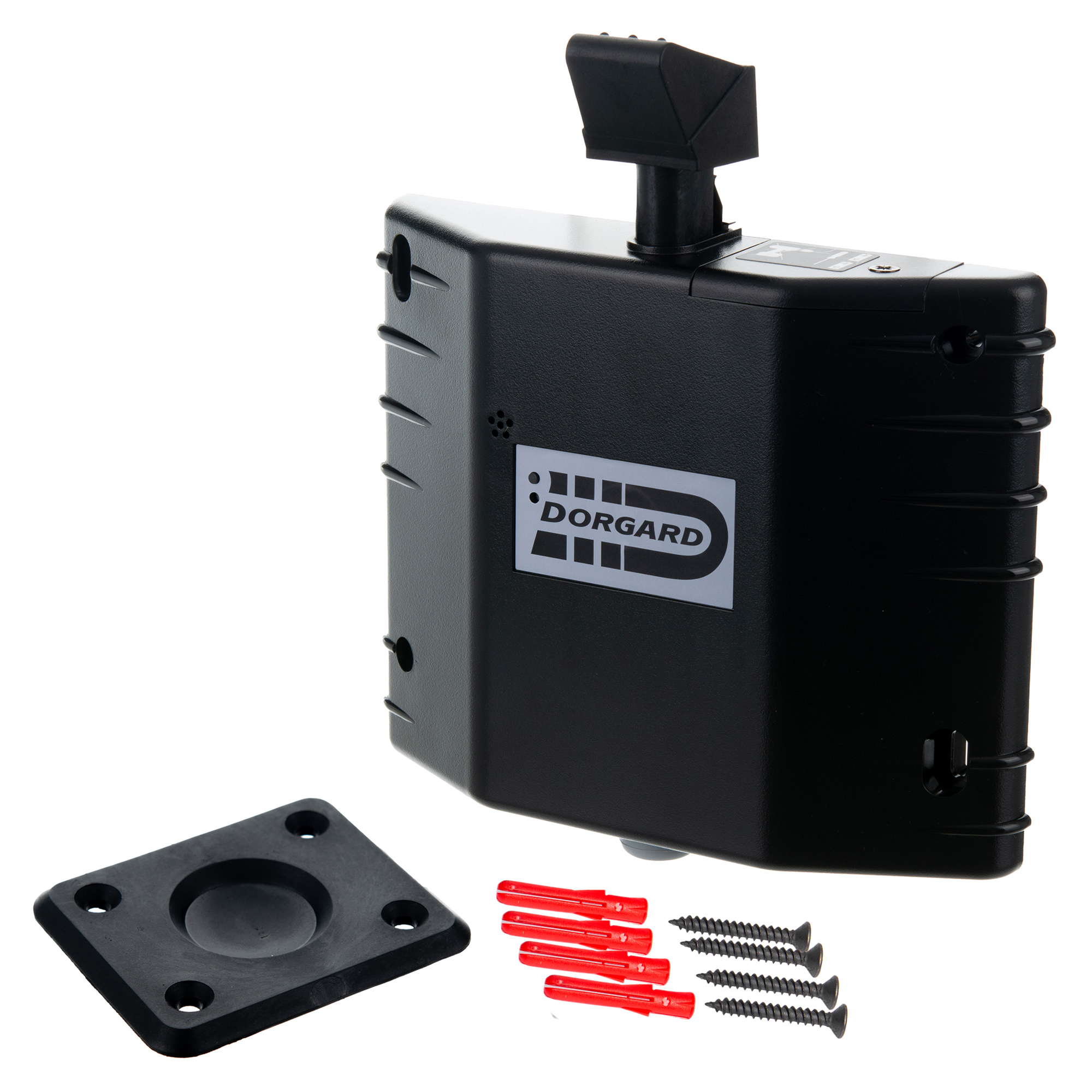

Dorgard Floorplate:

The Dorgard floorplate is designed for use with an installed Dorgard and is fitted to the floor using 4 screws.

Fire doors weighing more than 120Kg, which have a closing force in excess of 120nm (that is a force of about 15kg, 800mm from the hinge) must have the floorplate installed in combination with the Dorgard unit. Dorgard can hold a fire door open safely without the floor plate installation if the fire doors weight and closing force are less than that above.

Installing a Dorgard floorplate is recommended when:

  • Your fire door has a powerful overhead door closer and the fire door tends to creep closed even with a Dorgard fitted.
  • The floor is slippery or has a very smooth surface and the fire door tends to creep closed even with a Dorgard fitted.



Technical Data
Product Code

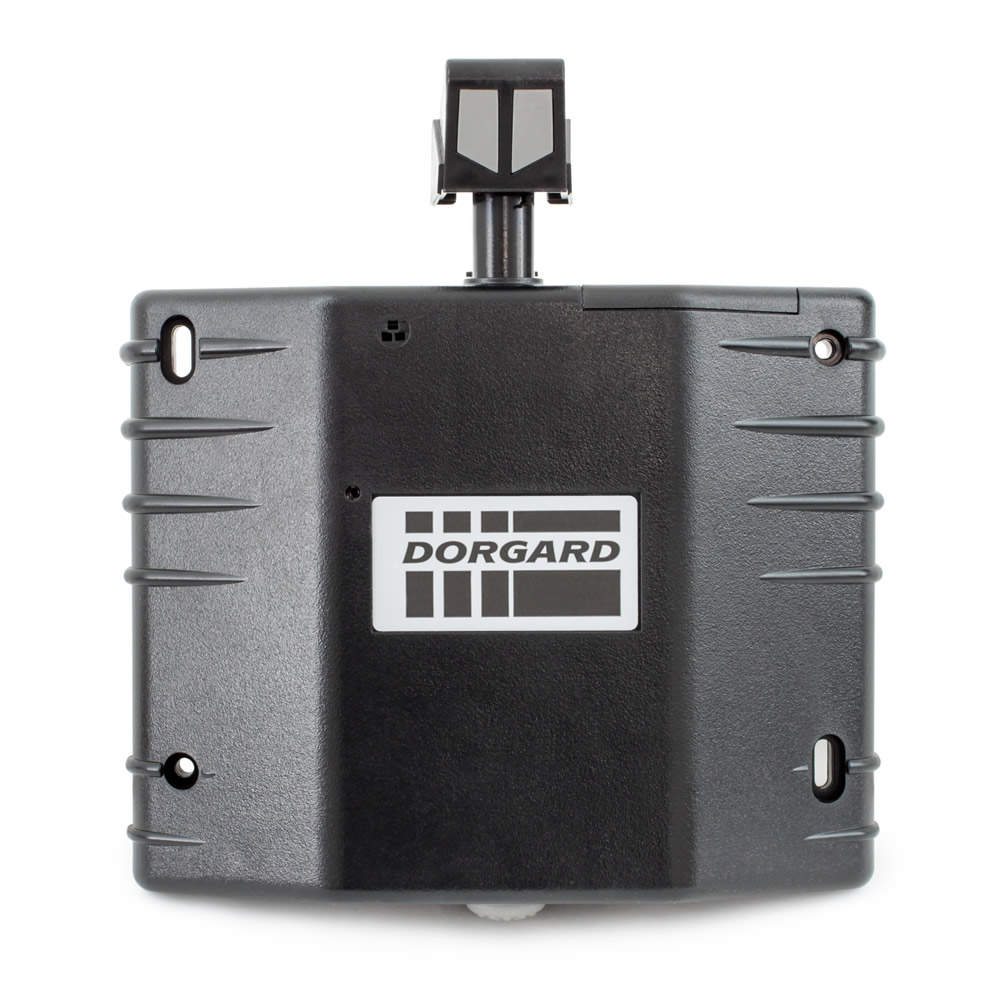

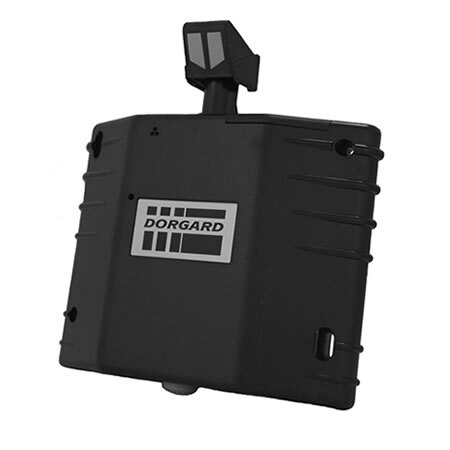

Black FCDG01BK

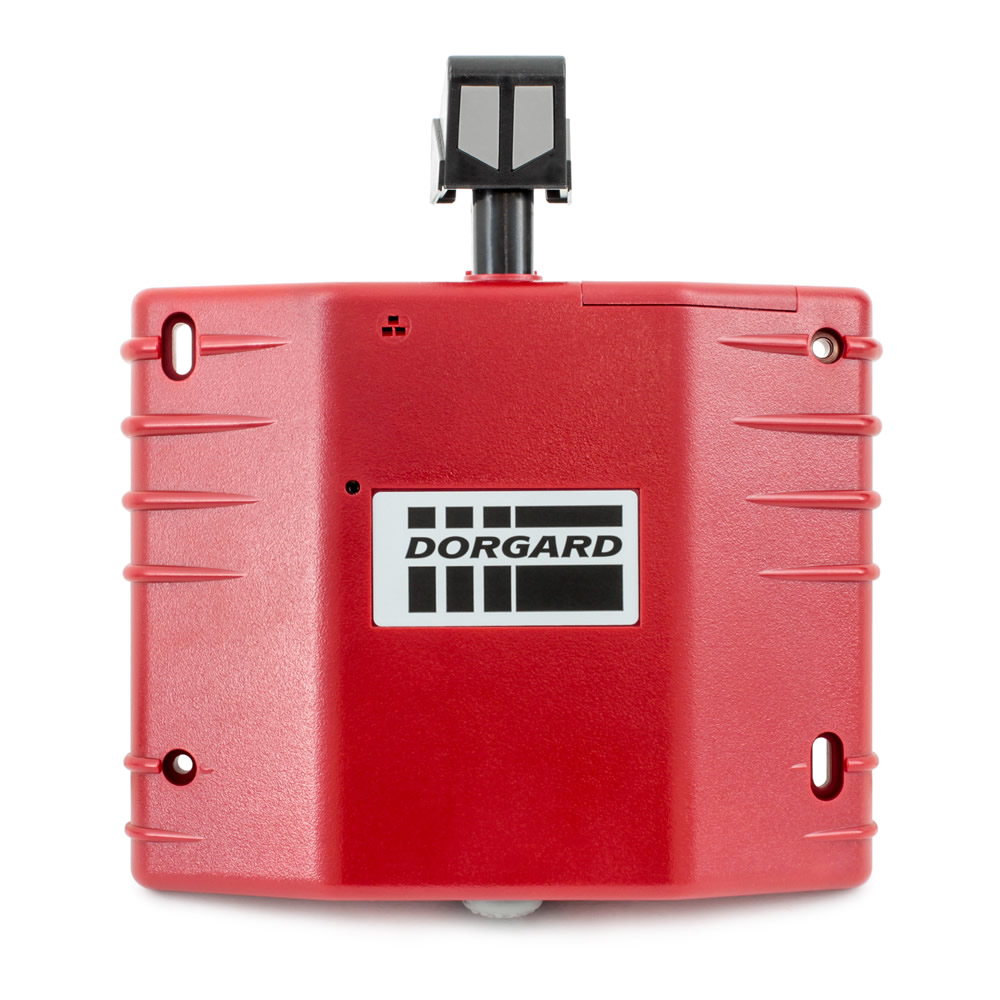

Red FCDG01RD

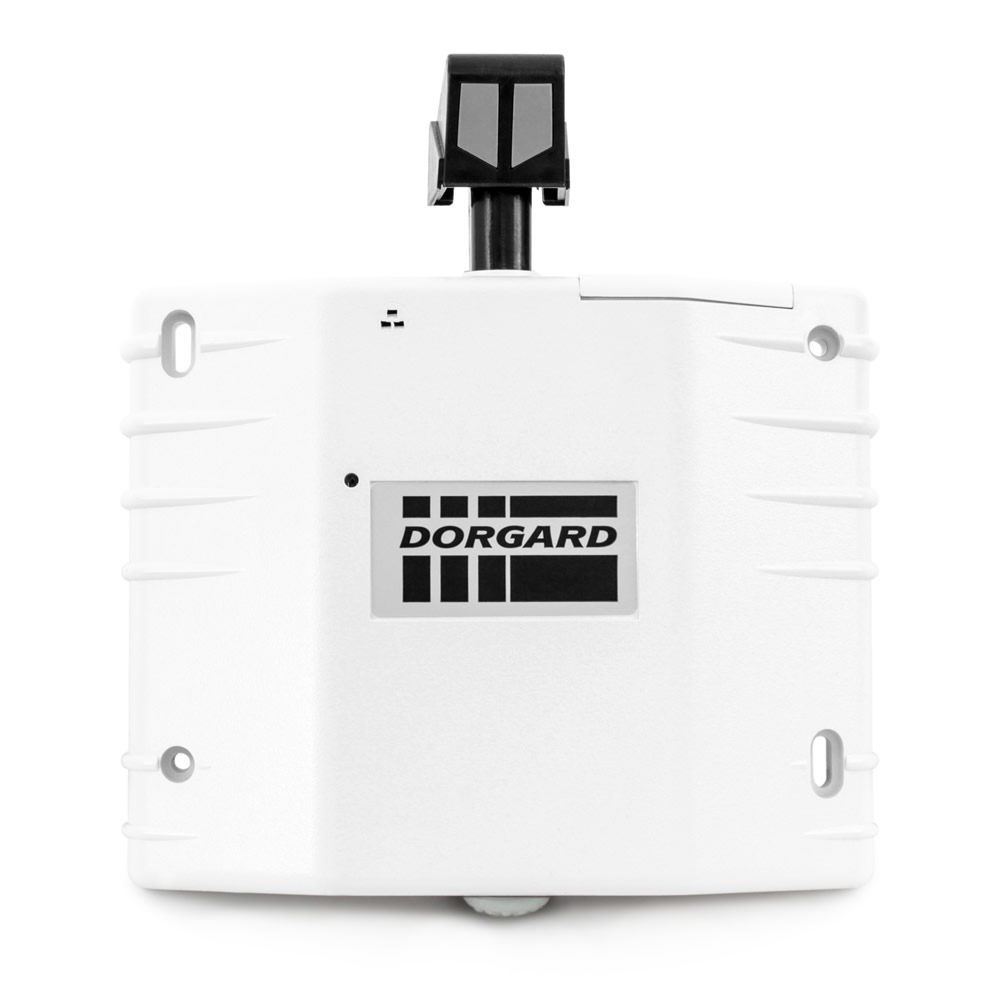

White FCDG01WH
Brand Fireco
Battery Type

2 x C size Alkaline

BS7273-4 Category

Category C

Dimensions (HxWxD)

205x195x45mm

Weight

FCDG01BK: 0.94kg

FCDG01RD: 0.94kg

FCDG01WH: 0.94kg

Product Datasheets
FAQs (18)
Q. Will the Dorgard release automatically at night?
A.

Yes, if set to do so. There are three timed setting options for night time release which the installer can select prior to installation. Batteries to activate the internal clock in the Dorgard must be inserted at 12.00hrs (midday) and the night time settings can then be selected and set accordingly. The Dorgard will then release each night at the pre-determined time.

Q. Where Dorgards have been fitted should employees be made aware of them?
A.

Employees should be informed about Dorgard and instructed on its use and operation and include it in the workplace fire routine.

Q. Does a fire alarm audibility test need to be carried out before fitting Dorgard?
A.

As Dorgard is an audio sensing device that can be adjusted within certain limits, it is not necessary to carry out a test before the installation. If the Dorgard cannot detect the alarm to respond to it the likelihood is that the alarm is not sounding at the minimum level required by BS 5839 which should alert the user to a problem with the alarm system that will require remedial action.

Q. Can the Dorgard test itself?
A.

A self-test routine is run every seven days by the Dorgard. The plunger is released, closing the door and the unit will emit a warning alarm if a fault is detected.

Q. Will the closing of a fire door by a Dorgard affect other units by restricting the sound of the fire alarm through the closed door?
A.

No, the operation of the Dorgard, or the ability to hear the fire alarm, should not be affected provided the sound level stated in BS5839 is adhered to throughout the building. Dorgards can be adjusted if the sound level does drop slightly within performance limits.

Show All

Pricing & Availability

Model Stock 1+ units 5+ units 10+ units
Black
Product Code: FCDG01BK
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
:

£103.79 inc VAT

£86.49 ex VAT

:

£98.99 inc VAT

£82.49 ex VAT

:

£97.67 inc VAT

£81.39 ex VAT

Red
Product Code: FCDG01RD
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
:

£103.79 inc VAT

£86.49 ex VAT

:

£98.99 inc VAT

£82.49 ex VAT

:

£97.67 inc VAT

£81.39 ex VAT

White
Product Code: FCDG01WH
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
:

£103.79 inc VAT

£86.49 ex VAT

:

£98.99 inc VAT

£82.49 ex VAT

:

£97.67 inc VAT

£81.39 ex VAT

Delivery Options

The following delivery options are available on this product.

Free Express Delivery

Free of Charge - Orders will be delivered in 1-2 working days by Hermes

Extended Warranty

This product is supplied with a 5 year extended warranty - More info

Customer Reviews

175 customers have given this product an overall rating of 4.8 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by: J P

Excellent service and products My business specialises in a particular type of property maintenance and I was asked to source door stops for some of 31 fire doors we fitted.Purchased 6 units at a very competitive price which were promptly delivered and easy to fit. My customer was delighted with promptness, quality and price . Will definitely use again when the need arises.

Published on: 17th October 2020

Rating: 4 / 5 Stars

Reviewed by: P R

Good product, easy to ft thank you

Published on: 14th September 2020

Rating: 4 / 5 Stars

Reviewed by: R G

seems to do what it says on the tin and was easy to install. the proof will only come in the unfortunate event of a fire.

Published on: 25th August 2020

Rating: 5 / 5 Stars

Reviewed by: C B

They work exactly as described

Published on: 25th August 2020

Rating: 5 / 5 Stars

Reviewed by: K W

Excellent product and good price

Published on: 21st August 2020

Rating: 5 / 5 Stars

Reviewed by: A H

Extremely happy We purchased a number of these to ensure that post COVID return of staff that people would not have to touch door handles but still ensured that if there was a fire that the fire doors closed. my only issue with them is that they reset weekly and this can be at a random time of the day and that they do not operate at this time. We would prefer that they were constantly "on".

Published on: 18th August 2020

Rating: 5 / 5 Stars

Reviewed by: G G

Works perfectly We wanted these to reduce touching of door handles while also meeting fire regs.

Published on: 10th July 2020

Rating: 5 / 5 Stars

Reviewed by: S N

Easy to install and works well.

Published on: 8th February 2020

Rating: 4 / 5 Stars

Reviewed by: N O

Good product and reliable

Published on: 23rd January 2019

Rating: 5 / 5 Stars

Reviewed by: J W

easy to fit and very good quality product

Published on: 26th June 2018
