ASSA ABLOY DC140A Overhead Door Closer - Power Size EN 2-5

The DC140A overhead door closer from ASSA ABLOY is suitable for fire rated doors up to 120 minutes with an adjustable EN power size rating 2-5. The adjustable closing speed and power size ensure that fire doors up to 1250mm wide are closed effectively after every use combined with the adjustable latching to eliminate slamming. Designed for internal applications, the closer is supplied with all fixings to be fitted in configurations from both the push and pull side mounting.

• Suitable for:
  • Internal single action doors
  • Doors up to 1250mm and weighing up to 100kg – EN size 2-5
  • Installation in all three configurations, Fig 1, 61, and 66
  • Non-handed installation – suitable for left and right handed doors
• CE marked and approved to EN 1154
• Certifire approved for use on FD120 (Timber) and FD240 (Steel) fire rated doors – CF 5098 Certificate

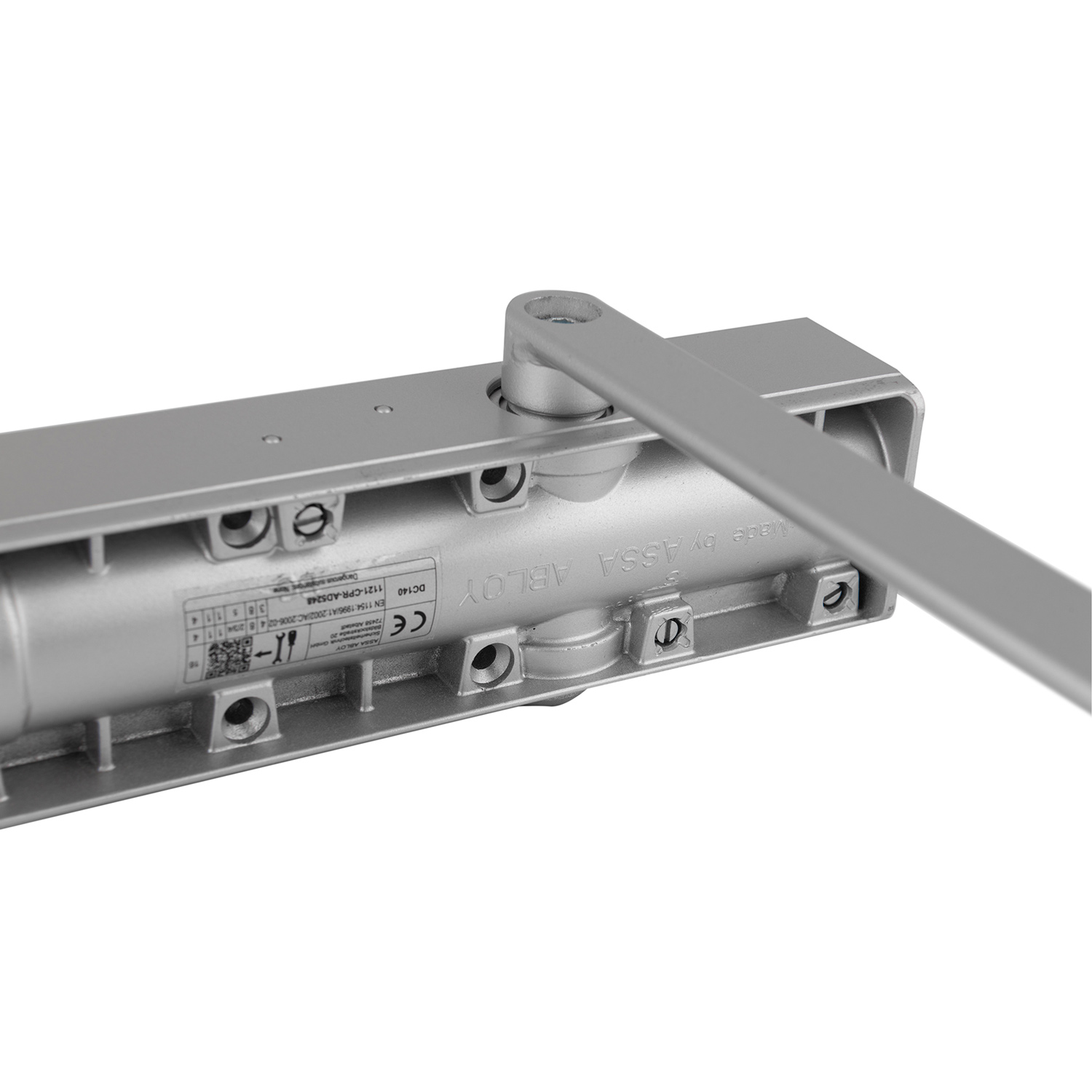

• Adjustable features easily accessible from the front of the door closer
  • Closing speed controls how quickly the door closes between the maximum angle 170° and 15°
  • Latching action governs the speed of the final 15° of the cycle
  • Back check ensures that no damage is caused by the door when it is opened rapidly
• Fig 1 and Fig 61 classification 3 | 8 | 2-5 | 1 | 1 | 4
• Fig 66 classification 3 | 8 | 3 | 1 | 1 | 4
• Supplied with all fixings required for configurations
• 10 Year Warranty
• Available in silver as standard
