Programmable via the built-in keypad or a standard USB keyboard, this 8-zone control panel is ideal for engineers. With its integrated 12V charger and support for up to a 72 hour backup power supply, installation requires only connecting the panel to the mains – no expensive and disruptive cabling works are needed for the entire system. The Zerio Plus 8-Zone Fire Control Panel supports up to 8 virtual "zones" and 240 fully-addressable wireless devices, enabling accurate location and system status information at any time via the backlit LCD display and zone LEDs. Zerio Plus panels also support programmable sounder circuits and fire / fault relays, hardwired monitored inputs, 5 access levels, and backup of configuration data via removable memory card.
- Supports up to 240 addressable devices across 8 zones
- Easy to install – only a single mains connection required
- 2 configuration methods to suit any engineer:

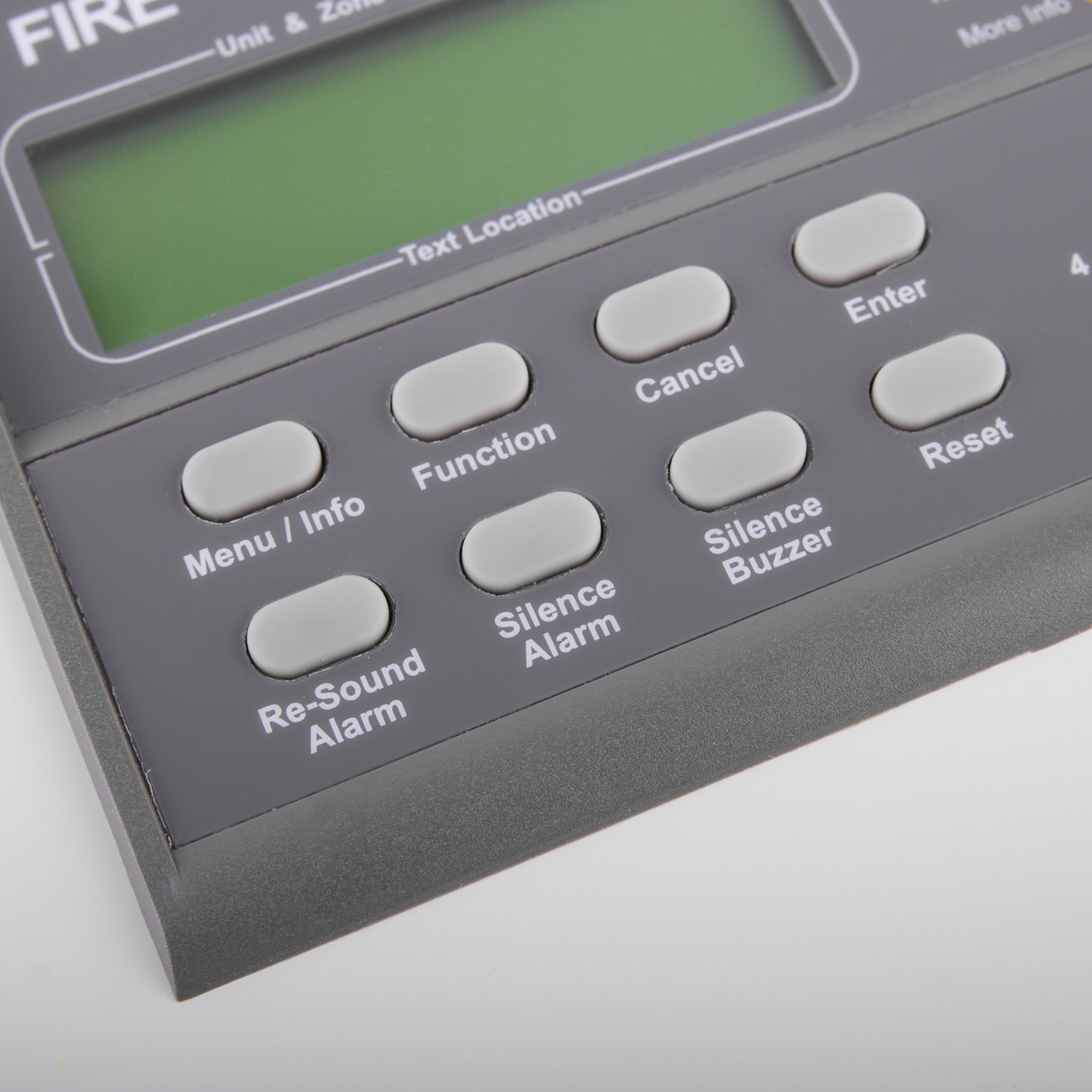

- All features programmable via the built-in keypad
- Connect a standard USB keyboard for quicker text input
- System and zone event LEDs show overall status at a glance
- High-quality LCD screen with 4 lines of text and an LED backlight
- Backup battery charger included
- Intelligent "learn" mode to assist with device setup
- Programmable test modes, sounder circuits and fault relays
- 5 access levels for system configuration and interrogation
- Up to 7 repeater panels and radio booster units can be connected to the system
- Separate systems can be linked together, allowing a total of 960 devices
- Also available as a 20-zone panel
- Certified to and
Please note: Backup batteries are not included with the Zerio Plus control panel but are a legal requirement for fire alarm systems. Suitable 3.2Ah (48h standby) and 7.0Ah (72h standby) batteries are available for purchase separately.
The tables below show all the units available from Safelincs that are compatible with this device.
Product Code
|
Type of unit
|
EDA-Z5008 |
8-Zone Control Panel |
EDA-Z5020 |
20-Zone Control Panel |
EDA-Z5100 |
100-Zone Control Panel |
Product Code
|
Type of unit
|
EDA-R5000 |
Optical Smoke Detector |
EDA-R6000 |
Optical Smoke Detector with Sounder |
EDA-R6030 |
Optical Smoke Detector with Sounder & Beacon |
EDA-D5000 |
A1 Heat Detector |
EDA-D6000 |
A1 Heat Detector with Sounder |
Product Code
|
Type of unit
|
EDA-C5000 |
Manual Call Point |
Technical Data
This is the technical data for the Zerio Plus 8-Zone Wireless Control Panel.
Product Code |
EDA-Z5008 |
Weight |
6.65kg |
Weight (exc. batteries) |
4kg |
Dimensions (HxWxD) |
220x275x85mm |
Operating Temperature |
0°C to 60°C |
Power Supply |
230V @ 50Hz (0.3A max.) |
Battery Capacity |
12V 7.0Ah |
Current Consumption |
Normal Operation: 60mA Mains Fail: 150mA (first 15 minutes, then 45mA) Alarm Condition: 180mA Fault Condition: 150mA |
Number of Zones |
up to 8 |
Number of Devices |
up to 240 |
Number of Repeaters / Boosters |
up to 7 (each) |
Radio Linking Frequency |
868MHz (NBFM) |
Monitored Inputs |
Inputs: 2x hardwired circuits End of Line Resistor: 4k7 ohm (open and short) Alarm Load: 470 ohm |
Relay Options |
Number of Relays: 4 (programmable) Fire Routing: 12v 500mA Fire: 1A Changeover Contacts Fault: 1A Changeover Fail Safe Contacts Sounder Circuit: 12V 500mA |
Display |
4-line LCD with LED backlight |
Connection |
USB (keyboard and data) |
Event Log |
max. 255 events |
Warranty |
1 year |
