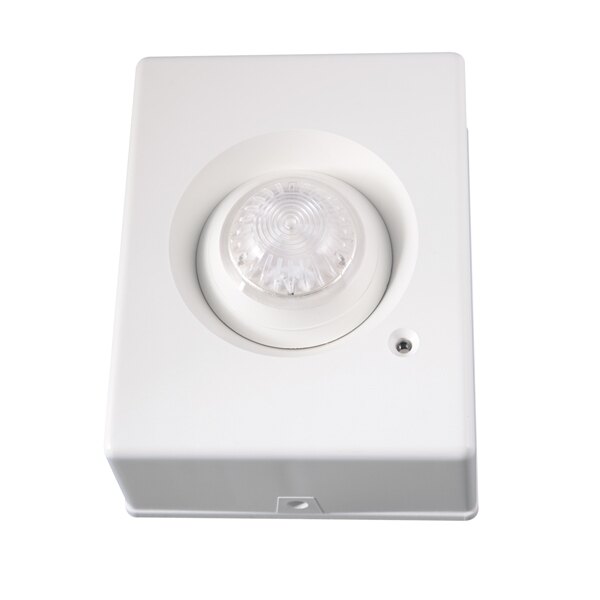

A durable UV-stabilised ABS plastic casing and the latest technology make this one of the most reliable and intelligent products on the market. Innovative radio-frequency communication allows this fully addressable LED beacon to be installed anywhere – even in historical buildings and temporary structures. Designed for use with the Zerio Plus range of wireless fire alarm system products, this beacon is approved to EN 54-25 and suitable for surface mounted installation. No wiring is necessary as the EDA-A6060 is powered by advanced lithium cells that provide power to the beacon for up to 5 years, with at least 60 days remaining once the low battery condition is indicated at the panel.
- Complies with and
- Fully addressable at the control panel
- Non-volatile memory protects configuration data from total power loss
- High-intensity, two-colour LED for status indication
- Internal monitoring and fault diagnostic reporting
- Control panel and built-in LED indication of alarm and fault events
- Designed for surface mounting applications
The tables below show all the units available from Safelincs that are compatible with this device.
Product Code
|
Type of unit
|
EDA-Z5008 |
8-Zone Control Panel |
EDA-Z5020 |
20-Zone Control Panel |
EDA-Z5100 |
100-Zone Control Panel |
Product Code
|
Type of unit
|
EDA-R5000 |
Optical Smoke Detector |
EDA-R6000 |
Optical Smoke Detector with Sounder |
EDA-R6030 |
Optical Smoke Detector with Sounder & Beacon |
EDA-D5000 |
A1 Heat Detector |
EDA-D6000 |
A1 Heat Detector with Sounder |
Product Code
|
Type of unit
|
EDA-C5000 |
Manual Call Point |
Technical Data
This is the technical data for the Zerio Plus Wireless LED Beacon.
Product Code |
EDA-A6060 |
Weight |
0.20kg |
Operating Temperature |
0°C to 60°C |
Operating Humidity |
0 to 95% (non-condensing) |
Radio Linking Frequency |
868MHz |
Radio-Frequency Range |
Narrow Band FM |
Dimensions (HxWxD) |
145x115x70mm |
Battery Life |
Up to 5 years |
Warranty |
1 year |
Product Datasheets
The following datasheets are available for this product.
