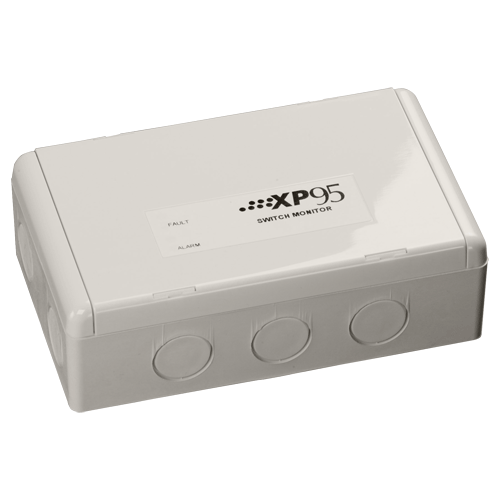

Apollo XP95 Switch Monitor with Isolator

The XP95 switch monitor is suitable for use with the XFP single and two loop addressable fire alarm panels. It is designed to monitor the state of one or more single pole volt free contacts on a single pair of cables. The switch monitor then reports the status of the contacts to the control equipment. The built-in isolator protects the switch monitor from short circuits on either loop input or output.

• Provides four input states to the control equipment:
  • "Normal", "Fault", "Pre-alarm" and "Alarm"
• Monitors the state of one or more single pole volt free contacts
• Reports the status of the contacts to the control equipment
• Designed for use with the XFP single and two loop fire alarm panels
• Fitted with a short-circuit isolator
• Supplied with a back box for surface mounting
• Suitable for indoor use only
• Three LED indicators:
  • One red LED - can be illuminated in the event of an alarm being detected
  • One yellow LED - illuminates if a fault is found in the monitoring circuit
  • Second yellow LED - illuminates when the isolator has sensed a short circuit loop fault
