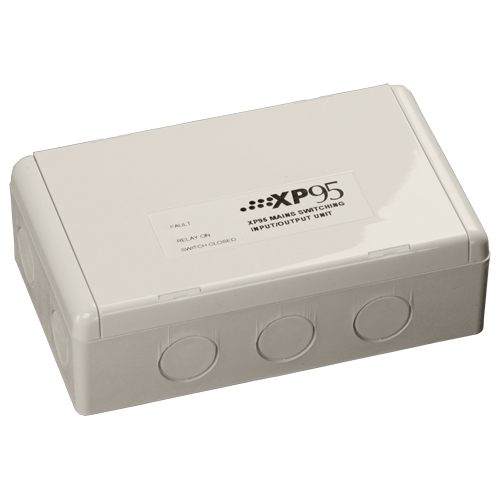

Apollo XP95 Single Channel Mains Switching Input/Output Unit

2 in stock Expected dispatch: 29th Sep
Save 4%
£57.59 inc VAT
£47.99 ex VAT
Product Overview

The XP95 mains switching input/output unit provides a voltage free single pole change-over relay output and a monitored switch input. Designed for use with the XFP addressable single and two loop fire alarm panels, the mains switching input/output unit is supplied with a surface mounting back box and is suitable for indoor use only.

  • Supervises one or more normally-open switches connected to a single pair of cables
  • Operates at 17-28V DC with protocol voltage pulses of 5-9V
  • Provides:
    • A voltage free single pole change-over relay output
    • A monitored switch input
  • Designed for use with the XFP single and two loop fire alarm panels
  • Supplied with a surface mounting back box
  • Suitable for indoor use only
  • Features three LEDS:
    • One red LED - illuminated to indicate that the relay is set
    • Second red LED - illuminated to indicate that the switch input is closed
    • One yellow LED - illuminated whenever a fault condition (open or short circuit) has been found
    • Polycarbonate enclosure
Technical Data
Product Code FLAPXP123
Alternative Product Codes 4700-103, SA4700-103APO, AP2518M
Brand Apollo
Dimensions

150x90x48mm

Manufacturer Part Number

SA4700-103APO

Maximum Current Consumption at 24V

Switch-on surge, max 150ms: 3.5mA LED enabled, 3.5mA LED disabled

Switch input closed LED on: 2.5mA LED enabled, 1.5mA LED disabled

Quiescent, 20k? EOL fitted: 1.25mA LED enabled, 1.2mA LED disabled

Operating Temperature

-20°C to +70°C

Operating Voltage

17-28V DC

Relative Humidity

0% to 95% (non condensing)

Switch Input Monitoring Voltage

9-11V DC (open-circuit condition)

Weight 0.24kg
Product Datasheets

Pricing & Availability

Model Stock Price
Product Code: FLAPXP123 Stock Level:
2 in stock Expected dispatch: 29th Sep
Price:

£57.59 inc VAT

£47.99 ex VAT
