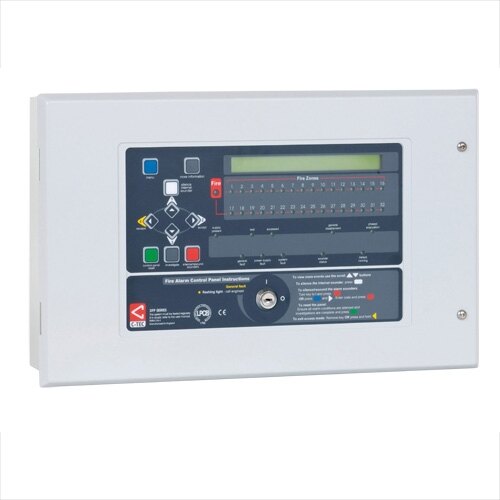

C-Tec XFP Addressable Two Loop Fire Alarm Panel - 32 Zone

The XFP addressable two loop panel has an LCD display which provides detailed information regarding the status of the system. There are 40 custom characters available per device, which means that the units can be named according to your application. As each device is individually addressed, this means that the panel can tell the user which particular device has been activated or if a fault has been identified. The XFP panel has 32 zones which can be spread over two loops. Some large applications may require the facility to have more loops in the system. To achieve this, a maximum of 8 main XFP panels can be linked using communication cards to form a fire alarm network.

• Full compliance with EN 54 parts 2 & 4
• Two loop addressable panel with 32 zones
• The panel can be surface or semi-flush mounted
• A maximum number of 126 devices can be installed on each loop
• Two programmable inputs
• Three zone dependency functions to choose from
• Key switch and key pad access
• Investigation delay period function
• Engineer programmable day/night changes
• 40 characters of custom text per device
• 500 event monitoring
• Two programmable conventional sounder circuits
• A fault output relay and 3 programmable relay outputs
• Phased evacuation facility
• Test, maintenance and commissioning functions
• Compatible with Apollo XP95 and Discovery protocol
• Can be connected with up to 8 XFP 32 zone repeaters
• 32 zone panels can be networked using communication cards - a total of 8 main panels per network
• Please note: The panel requires a 7Ah 24V back-up battery. These are sold separately.

Please note: Windows software is required to commission the fire panel. This is normally completed by the commissioning engineer; however the software can be purchased separately.
