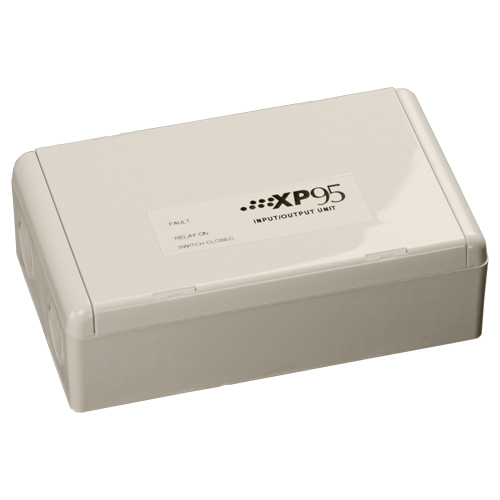

Apollo XP95 Single Channel Input/Output Unit with Isolator

3 in stock Expected dispatch: Tomorrow
£49.99 ex VAT
£59.99 inc VAT
Product Overview

The XP95 single channel input/output unit is fitted with a short circuit isolator and supplied with a surface mounting back box as standard. It provides two voltage free single pole change-over relay outputs and a single monitored switch input. The fitted isolator means that the input/output unit will be unaffected by loop short circuits.

  • Fitted with a bi-directional short circuit isolator
  • Supervises one or more normally-open switches
  • Provides the following inputs/outputs:
    • Two voltage free single pole change-over relay outputs
    • A single monitored switch input
  • Designed for use with the XFP single and two loop fire alarm panels
  • Supplied with a back box for surface mounting
  • Suitable for indoor use only
  • Features four LEDs - two red and two yellow:
    • One red LED - illuminated to indicate that the relay is set
    • Second red LED - illuminated to indicate that the switch input is closed
    • One yellow LED - illuminated when a fault condition (open or short circuit) is found
    • Second yellow LED - illuminated when the built-in isolator has sensed a short circuit loop fault
Technical Data

Technical Data

This is the technical data for the Apollo XP95 Single Channel Input/Output Unit with Isolator.

Product Code FLAPXP195
Weight 0.24kg
Dimensions 150x90x48mm
Operating Temperature -20°C to +70°C
Humidity Range 0% to 95% (non condensing)
IP Rating IP54
Operating Voltage 17-28V DC
Maximum Current Consumption at 24V Switch-on surge: 3.5mA
Switch input closed LED on: 2.5mA
Switch input closed LED disabled: 1.5mA
Relay operated: 2mA
Quiescent, 20kΩ EOL fitted: 1.25mA
Switch Input Monitoring Voltage Open-circuit condition: 9-11V DC
Opto-coupled Input Maximum voltage: 35V DC
Impedance: 10kΩ
Relay Output Wetting Current At 10mV DC: 10µA
Maximum Load 20x XP95 detectors

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price Weight
Product Code: FLAPXP195 Stock Level:
3 in stock Expected dispatch: Tomorrow
Price:

£49.99 ex VAT

£59.99 inc VAT

Weight:
0.24kg
