Apollo XP95 Open Area Weatherproof Sounder Beacon

Temporarily Unavailable

This product is temporarily unavailable and is not currently available to buy. View similar products: Addressable Sounders and Beacons.

View alternative products

Addressable Sounders and Beacons

A range of addressable sounders and beacons suitable for indoor and outdoor use.

View Products

Product Overview
Technical Data

Product Overview

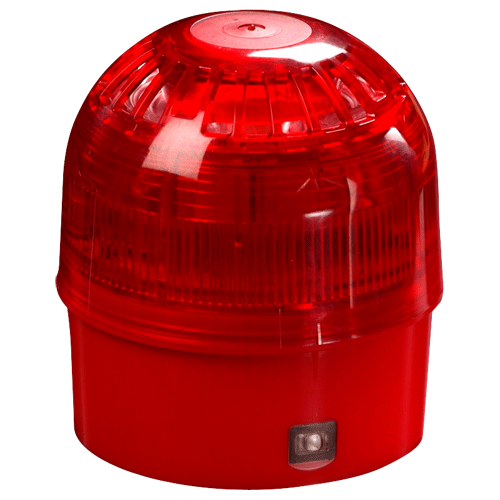

The XP95 open area sounder beacon is wall mounted and designed to work as part of a XFP or Kentec addressable fire alarm panel system. The sounder beacon is weatherproof (IP65 rated) and is supplied with a built-in isolator. The nominal sound output is 100dB; however the sound can be adjusted to 92dB using the volume control feature.

Combined sounder and beacon unit
Supplied with built-in isolator
Three selectable tones which comply with EN 54-3:2001
Suitable for use as a fire alarm system indicator
Wall mounted
Weatherproof (IP65 rated)
Volume control feature: adjustable sound output from 100dB to 92 dB
Tone and flash synchronisation
Designed to work with XFP and Kentec fire alarm panels
Responds to its own individual address
Can be group addressed - allows multiple sounders to be controlled simultaneously
No external power supply needed

Technical Data

Product Code	FLAPXPWSB
Alternative Product Codes	55000-005
Brand	Apollo
Dimensions (HxDia)	104x97.5mm
IP Rating	IP65
Manufacturer Part Number	55000-005
Maximum Loop Current Consumption at 24V	Quiescent: 333µA Alarm: 8mA Switch-on Surge: 1.2mA for <1 sec
Operating Temperature	-10°C to +55°C
Operating Voltage	17-28V DC
Sound Output	100dB (maximum)
Weight	0.26kg
Product Datasheets	xp95-open-area-weatherproof-sounder-beacon
