Apollo XP95 Three Channel Input/Output Unit with Isolator

Discontinued Product

This product has been discontinued and is no longer available to buy.

View Alternative Products
Product Overview

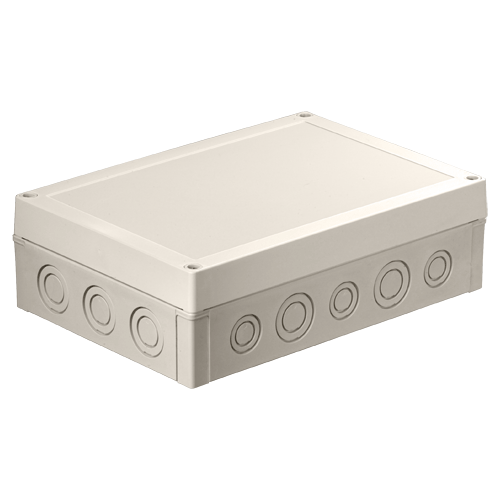

The XP95 three channel input/output unit is supplied in a surface mounting enclosure with dual diameter cable entry knockouts. It provides three relay outputs and three switch inputs, and supervises one or more normally-open switches on each of the three inputs. The three channel input/output unit has a built-in short circuit isolator.

  • Supplied in a self-extinguishing glass filled ABS surface mounting enclosure
  • Fitted with a built-in short circuit isolator
  • Provides the following inputs/outputs:
    • Three voltage free single pole change-over relay outputs
    • Three monitored switch inputs
  • Supervises one or more normally-open switches on each of the three inputs
  • Unaffected by loop short circuits on either loop input or output
  • Operates at 17-28V DC with protocol voltage pulses of 5-9V
  • Designed for use with the XFP single and two loop fire alarm panels
  • Ten 16mm/21mm and six 22mm/38mm dual diameter cable entry knockouts are provided
  • Features LED indicators for each channel:
    • One red LED - illuminated to indicate that the relay is set
    • Second red LED - illuminated to indicate that the switch input is closed
    • One yellow LED - illuminated to indicate an open or short circuit fault
    • Second yellow LED - illuminated whenever the built-in isolator has found a short circuit loop fault
Technical Data
Product Code FLAPXP395
Brand Apollo
Dimensions

250x175x75mm

IP Rating

IP54

Maximum Current Consumption at 24V DC

Switch Inputs Closed: 6mA LED enabled, 4mA LED disabled

Quiescent, 20k? EOL fitted: 3mA LED enabled, 3Ma LED disabled

Switch-on Surge, max 150ms: 6.5mA LED enabled, 6.5mA LED disabled

Relays Operated: 5.5mA LED enabled, 3.5mA LED diabled

Maximum Load

20 x XP95 detectors

Operating Temperature

-20°C to +70°C

Operating Voltage

17-28V DC

Relative Humidity

0% to 95% (non condensing)

Switch Input Monitoring Voltage

9-11V DC

Weight 0.65kg
