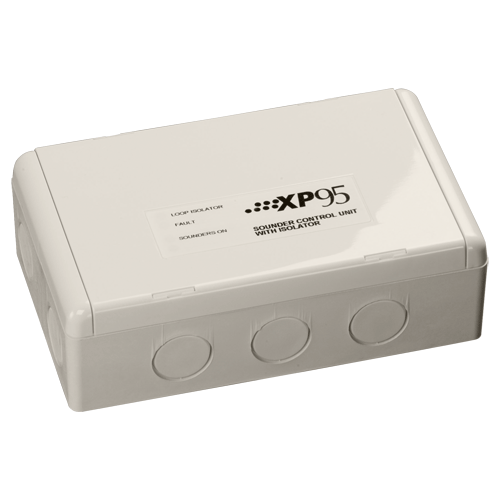

Apollo XP95 Sounder Circuit Controller with Isolator

Available to order Expected dispatch: 22nd Aug
£59.99 ex VAT
£71.99 inc VAT
Product Overview

The XP95 sounder circuit controller is designed for use with the XFP single and two loop addressable fire alarm panels. The unit controls the operation of a zone of externally powered sounders and reports their status back to the fire alarm control panel. Sounders can be operated individually, in groups, synchronised, and can work continuously or be pulsed.

  • Fitted with a bi-directional isolator - unaffected by loop short circuits
  • Controls the operation of a zone of externally powered sounders
  • Reports the status of the sounders to the fire alarm control panel
  • Designed for use with the XFP single and two loop fire alarm panels
  • Allows sounders to operate continuously or be pulsed, 1 second on/1 second off
  • Enables sounders to work individually, in groups and may be synchronised
  • Line powered and operates at 17-28V DC
  • Requires a local power supply of 9-32V DC to power the external load
  • Responds to its own individual address, group address and to a pulsed-mode synchronisation address
  • Monitors open and short circuit faults on the sounder wiring
  • Facility to monitor the presence and polarity of the external power supply
  • Supplied with a back box for surface mounting
  • Suitable for indoor use only
Technical Data

Technical Data

This is the technical data for the Apollo XP95 Sounder Circuit Controller with Isolator.

Product Code FLAPXPSCC
Weight 0.24kg
Dimensions 150x90x48mm
Operating Temperature -20°C to +70°C
Humidity Range 0% to 95% (non condensing)
IP Rating IP54
Operating Voltage 17-28V DC
Max. Sounder Circuit Voltage 32V DC
Max. Sounder Circuit Current 1A at 30V DC
Sounder Output Monitoring Voltage 9-11V DC
Current Consumption, loop at 24V Switch-on surge, max 100ms: 2.6mA
Quiescent, 10kΩ EOL fitted: 1.95mA
Sounders operated: 1.7mA
Fault (yellow LED on): 3.6mA
Sounder line short circuit: 2.8mA
Current Consumption, External Supply Relay off: 1mA at 9V, 3mA at 32V
Sounders and red LED on: 44mA at 9V, 47mA at 32V (+ sounder load)

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price Weight
Product Code: FLAPXPSCC Stock Level:
Available to order Expected dispatch: 22nd Aug
Price:

£59.99 ex VAT

£71.99 inc VAT

Weight:
0.24kg
