Battery Radio-Interlinked Wireless Control Unit - FireAngel Pro Connected FP1014W2-R

Radio-Interlinked Wireless Control Unit - FireAngel FP1014W2-R

Product Overview
Interlink
Technical Data

Product Overview

The FireAngel Pro Connected FP1014W2-R Wireless Control Unit provides complete alarm management for Wi-Safe 2 and Pro Connected devices to make testing, silencing and locating alarms easy. Powered by replaceable alkaline batteries, the FP1014W2-R connects to alarms wirelessly and can be wall mounted or placed on a table for convenience. The unit also has separate LED indicators to display smoke / heat or carbon monoxide detection alerts.

Battery: AA alkaline batteries (included)
Warranty: 1 year warranty
Can interlink wirelessly with up to 50 Wi-Safe 2 and Pro Connected devices
Separate LED indicators display smoke / heat or carbon monoxide detection alerts
Provides remote test, silence and locate functionality for alarms
Memory function provides indication that an alarm has been activated
Compatible with the FireAngel Pro Connected Gateway
Radio-frequency range: 200m in free space, up to 35m in buildings

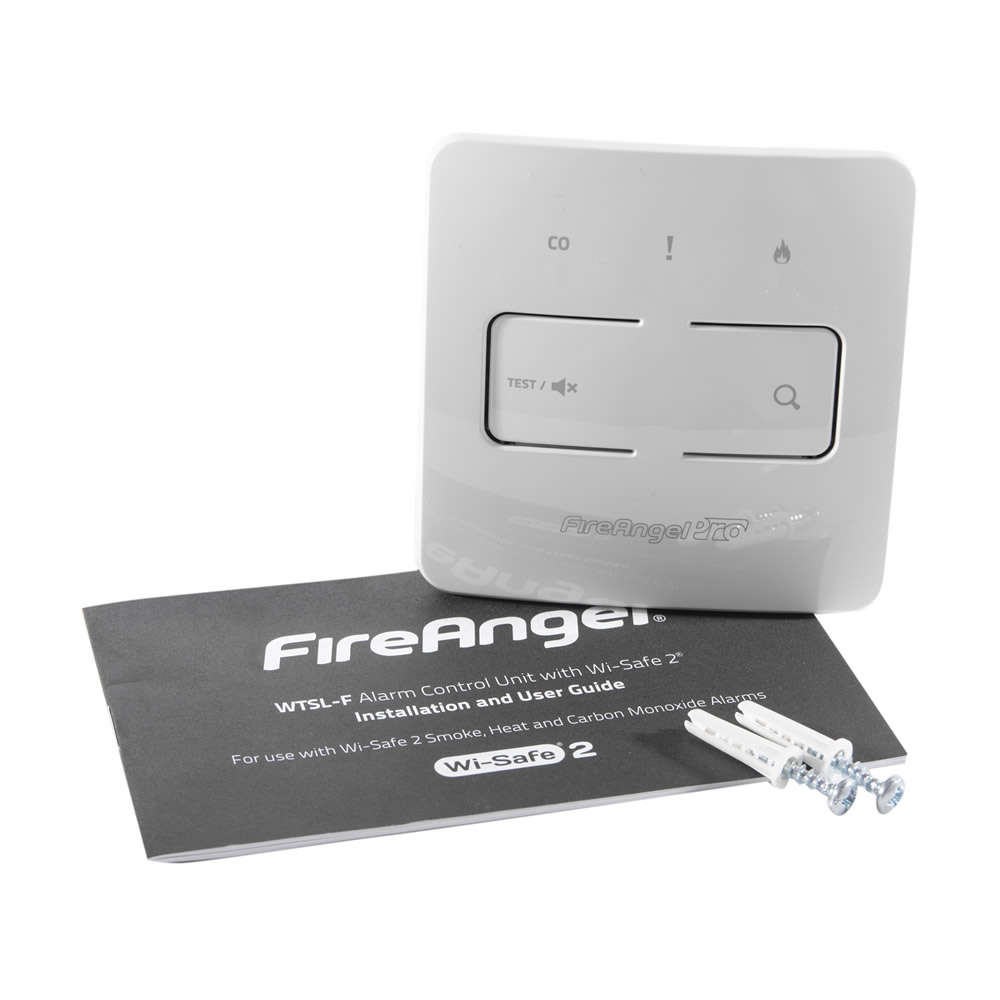

The FP1014W2-R includes a WTSL-F Control Unit

Interlink

The table below shows all the units that can interlink with the FireAngel Pro Connected range.

Alarms from the Same Series

Model Number	Type of Unit	Type of Interlink
FP1640W2-R	Mains Powered Wireless Smoke Alarm	Radio-Interlink
FP1740W2-R	Mains Powered Wireless Heat Alarm	Radio-Interlink
FP2620W2-R	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
FP1720W2-R	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink
FP1820W2-R	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Compatible Smoke and Heat Alarms

Model Number	Type of Unit	Type of Interlink
WST-230	Mains Powered Wireless Smoke Alarm	Radio-Interlink
WHT-230	Mains Powered Wireless Heat Alarm	Radio-Interlink
WST-630	Longlife Battery Powered Wireless Smoke Alarm	Radio-Interlink
WHT-630	Longlife Battery Powered Wireless Heat Alarm	Radio-Interlink

Compatible Carbon Monoxide Alarms

Model Number	Type of Unit	Type of Interlink
W7-CO-10X	Longlife Battery Powered Wireless Carbon Monoxide Alarm	Radio-Interlink

Ancillary Products

Model Number	Type of Unit	Type of Interlink
FP1000W2-R	Mains Powered Wireless Interlink Gateway	Radio-Interlink
FP1014W2-R	Longlife Battery Wireless Alarm Control Unit	Radio-Interlink
W2-SVP-630	Wireless Strobe and Vibrating Pad	Radio-Interlink
W2-LFS-630	Wireless Low Frequency Sounder	Radio-Interlink

Technical Data

Product Code	FAPCBCUW
Alternative Product Codes	FP1014W2-R, WTSL-F, WTSL
Brand	FireAngel
Battery Type	2 x Replaceable AA Alkaline Batteries
Dimensions (HxWxD)	90 x 90 x 22.5mm
Operating Humidity	Up to 90% RH non-condensing
Operating Temperature	+4°C to +38°C
Radio-Frequency Range	In Buildings: 35m Free Space: 200m
Storage Temperature	Storage: -20°C to +60°C
Warranty	1 year
Weight	0.15kg
Product Datasheets	FireAngel-FP1014W2-R-Control-Unit-Datasheet FireAngel-FP1014W2-R-Control-Unit-Instructions
