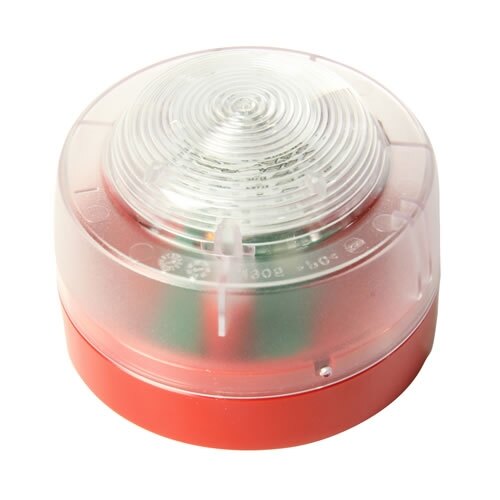

Honeywell EN 54-23 Approved Beacon

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

Approved to the EN 54-23 standard for visual alarm devices, these Honeywell non-addressable beacons ensure safe evacuation for a range of applications through the use of high output LEDs and an advanced lens design for outstanding illumination. Saving time during installation, the Honeywell EN 54-23 approved beacons use first fix mounting, which allows for electrical continuity testing to take place prior to device fitting. Available with red or white light flash options to suit the users requirements, the Honeywell EN 54-23 approved beacons reduce the number of devices required due to their superior maximum illumination capacity.

  • Suitable for use with Morley Horizon 2 zone, 4 zone and 8 zone fire alarm panels
  • Fully compliant to EN 54-23 categories C (ceiling mount) and W (wall mount)
  • First fix mounting helps to reduce installation time
  • Available with deep base to achieve IP65 protection
  • Advanced optics ensure superior light coverage
  • Choice of white or red light flash options
  • Designed for wall or ceiling mounting
  • Synchronised flash exceeds requirements of the EN 54-23 standard
  • Red body and clear lens construction
  • Fitted with high output LEDs and innovative lens design
Technical Data

Technical Data

This is the technical data for the Honeywell EN 54-23 Approved Beacon.

Product Code
Low Profile Base, White Flash MINASWFF
Deep Base, White Flash MINASWDFF
Low Profile Base, Red Flash MINASRFF
Deep Base, Red Flash MINASRDFF
Low Profile Base, White Flash 0.174kg
Deep Base, White Flash 0.181kg
Low Profile Base, Red Flash 0.174kg
Deep Base, Red Flash 0.181kg
Dimensions (HxDia) Low Profile Base: 72x100mm
Deep Base: 97x100mm
Operating Voltage 12-29V DC
Current Consumption Average at 29V DC: 26mA
Operating Temperature -25 °C to +70 °C
Relative Humidity (non-condensing) 93%
IP Rating Low Profile Base: IP21C
Deep Base: IP65
Construction Lens: PC
Body: PC/ABS
