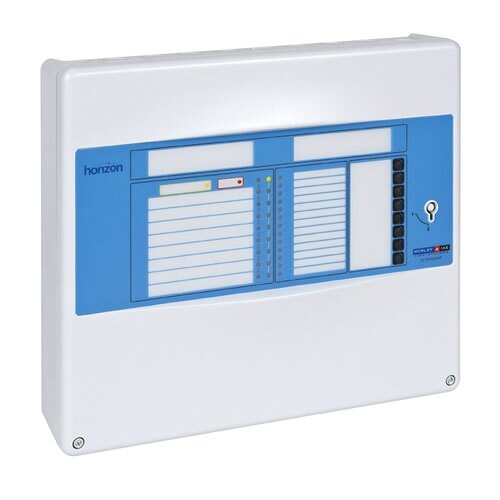

The Horizon 2 zone conventional fire alarm panel from Morley has been specially designed for use in small to medium sized commercial environments. Designed to comply with EN 54 Part 2 and Part 4, the Morley Horizon panel offers a reliable solution for conventional fire alarm system requirements, and is able to support a range of protocol from Apollo, Morley IAS and System Sensor.
- Four-wire installation design
- Designed to comply with EN 54 Part 2 and Part 4
- Allows you to identify in which zone a fire alarm has been activated
- Programmable delays can be set to allow for alarm verification
- Supplied with key and integrated key switch to activate the panels controls
- Capable of running up to 2mA current per zone - typically >20 detectors
- Supports Apollo (Series 60, Series 65 & Orbis), Morley IAS (Horizon HRZ series) & System Sensor (ECO1000 & Series 300) protocol
- Features 2 separate sounder outputs
- LED indicators display the panel status and zone indication
- Integrated fire and fault relays
- Ideal for small to medium sized commercial environments e.g. garages, retail units, restaurants, etc.
- Available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
Technical Data
This is the technical data for the Morley Horizon Fire Alarm Panel - 2 Zone.
Dimensions (HxWxD) |
318x356x96mm |
Operating Temperature |
+5 °C to +45 °C |
Relative Humidity (non-condensing) |
5% to 95% |
IP Rating |
IP30 |
Construction |
Enclosure: Fire retardant ABS plastic |
Operating Voltage |
230V AC, 50/60Hz |
Number of Zones |
Two |
Product Datasheets
The following datasheets are available for this product.
