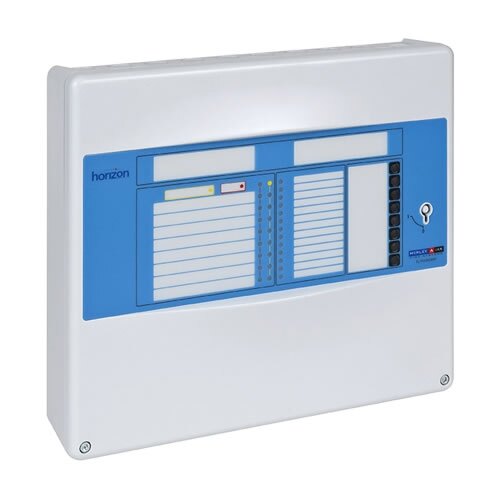

The Morley Horizon 8 zone fire alarm panel is capable of running up to 2mA current (typically >20 detectors) per zone, making it suitable for medium to large commercial applications. Featuring 2 dedicated sounder circuits, integrated fire and fault relays and advanced programming settings, the Horizon 8 zone panel provides a reliable conventional fire alarm solution, with a simple, user friendly set-up process.
- Four-wire installation design
- Designed to comply with EN 54 Part 2 and Part 4
- Features LED indicators to display the panel status as well as zone indication
- Allows you to identify in which zone a fire alarm has been activated
- Integrated key switch enables activation of the panel control buttons
- Two separate circuits for installation of sounders
- Supports Apollo (Series 60, Series 65 & Orbis), Morley IAS (Horizon HRZ series) & System Sensor (ECO1000 & Series 300) protocol
- Capable of running up to 2mA current per zone - typically >20 detectors
- Enables programmed delays for alarm verification
- Features integrated fire and fault relays
- Ideal for medium to large commercial applications e.g. schools, offices, etc.
- Available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
Technical Data
This is the technical data for the Morley Horizon Fire Alarm Panel - 8 Zone.
Dimensions (HxWxD) |
318x356x96mm |
Operating Temperature |
+5 °C to +45 °C |
Relative Humidity (non-condensing) |
5% to 95% |
IP Rating |
IP30 |
Construction |
Enclosure: Fire retardant ABS plastic |
Operating Voltage |
230V AC, 50/60Hz |
Number of Zones |
Eight |
