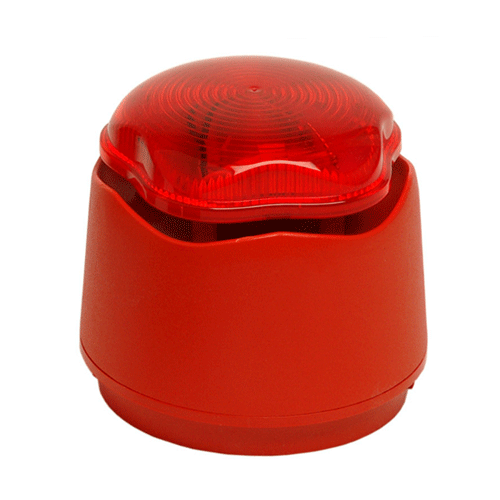

Banshee Excel Lite Sounder with Xenon Beacon - Capsule Horn

From: £28.79 inc VAT
£23.99 ex VAT
Product Overview

The Banshee Excel Lite combined sounder beacon units have been tested and approved to EN 54 part 3, are CE marked and are suitable for use in DDA compliant installations. Available with either a standard or a deep push and twist bayonet fitting base, the Banshee units feature a capsule driven horn as well as a bright xenon beacon. The horn can be controlled with the use of three volume settings and has 32 different tones to choose from.

  • EN 54 part 3 tested and CE marked
  • VdS approved and DDA (Disability Discrimination Act) compliant
  • Combined capsule driven horn sounder and bright xenon beacon
  • Suitable for use as a fire alarm system indicator
  • Flame retardant polymer construction
  • Two main body colours to choose from: red or white
  • Red or clear/white lens available
  • Push and twist bayonet base fitting with locking screw supplied
  • Available with either a standard base (IP45 rated) or with a deep base (IP66 rated)
  • 32 user selectable tones
  • Choice of three volume levels
  • Low current consumption
  • Easy to install
  • Side and rear cable entry
  • "Two in two out" 2.5mm2 terminals
  • LPCB (Loss Prevention Certification Board) approval pending
  • 12 month warranty
  • Compatible with all major fire panel manufacturers including Kentec, Advanced, C-TEC, CEL and Morley

Please note: The Banshee Excel Wall Fixing Clip is available for use with the deep base sounder beacon units. This helps to retain the weatherproof (IP66) rating during installation.
Technical Data

Technical Data

This is the technical data for the Banshee Excel Lite Sounder with Xenon Beacon - Capsule Horn.

Product Code
Standard Base, Red Body, Red Lens VXBCHXRR
Standard Base, Red Body, Clear/White Lens VXBCHXRC
Standard Base, White Body, Red Lens VXBCHXWR
Standard Base, White Body, Clear/White Lens VXBCHXWC
Deep Base, Red Body, Red Lens VXBCHXRRD
Deep Base, Red Body, Clear/White Lens VXBCHXRCD
Deep Base, White Body, Red Lens VXBCHXWRD
Deep Base, White Body, Clear/White Lens VXBCHXWCD
Weight
Standard Base, Red Body, Red Lens 0.26kg
Standard Base, Red Body, Clear/White Lens 0.26kg
Standard Base, White Body, Red Lens 0.26kg
Standard Base, White Body, Clear/White Lens 0.26kg
Deep Base, Red Body, Red Lens 0.28kg
Deep Base, Red Body, Clear/White Lens 0.28kg
Deep Base, White Body, Red Lens 0.28kg
Deep Base, White Body, Clear/White Lens 0.28kg
Operating Temperature -20 °C to +55 °C
Operating Voltage 9-30V DC
Construction Flame retardant polymer
IP Rating Standard base unit: IP45
Deep base unit: IP66
Dimensions (HxDia) Standard base unit: 85x92mm
Deep base unit: 109x92mm

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price
Red Body
Red Lens
Standard Base
Product Code: VXBCHXRR
Stock Level:
1 in stock Expected dispatch: Today
Price:

£28.79 inc VAT

£23.99 ex VAT

Red Body
Red Lens
Deep Base
Product Code: VXBCHXRRD
Stock Level:
Available to order Expected dispatch: 23rd Aug
Price:

£29.99 inc VAT

£24.99 ex VAT

Red Body
Clear/White Lens
Standard Base
Product Code: VXBCHXRC
Stock Level:
Available to order Expected dispatch: 23rd Aug
Price:

£28.79 inc VAT

£23.99 ex VAT

Red Body
Clear/White Lens
Deep Base
Product Code: VXBCHXRCD
Stock Level:
Available to order Expected dispatch: 23rd Aug
Price:

£29.99 inc VAT

£24.99 ex VAT

White Body
Red Lens
Standard Base
Product Code: VXBCHXWR
Stock Level:
8 in stock Expected dispatch: Today
Price:

£28.79 inc VAT

£23.99 ex VAT

White Body
Red Lens
Deep Base
Product Code: VXBCHXWRD
Stock Level:
Available to order Expected dispatch: 23rd Aug
Price:

£29.99 inc VAT

£24.99 ex VAT

White Body
Clear/White Lens
Standard Base
Product Code: VXBCHXWC
Stock Level:
6 in stock Expected dispatch: Today
Price:

£28.79 inc VAT

£23.99 ex VAT

White Body
Clear/White Lens
Deep Base
Product Code: VXBCHXWCD
Stock Level:
Available to order Expected dispatch: 23rd Aug
Price:

£29.99 inc VAT

£24.99 ex VAT
