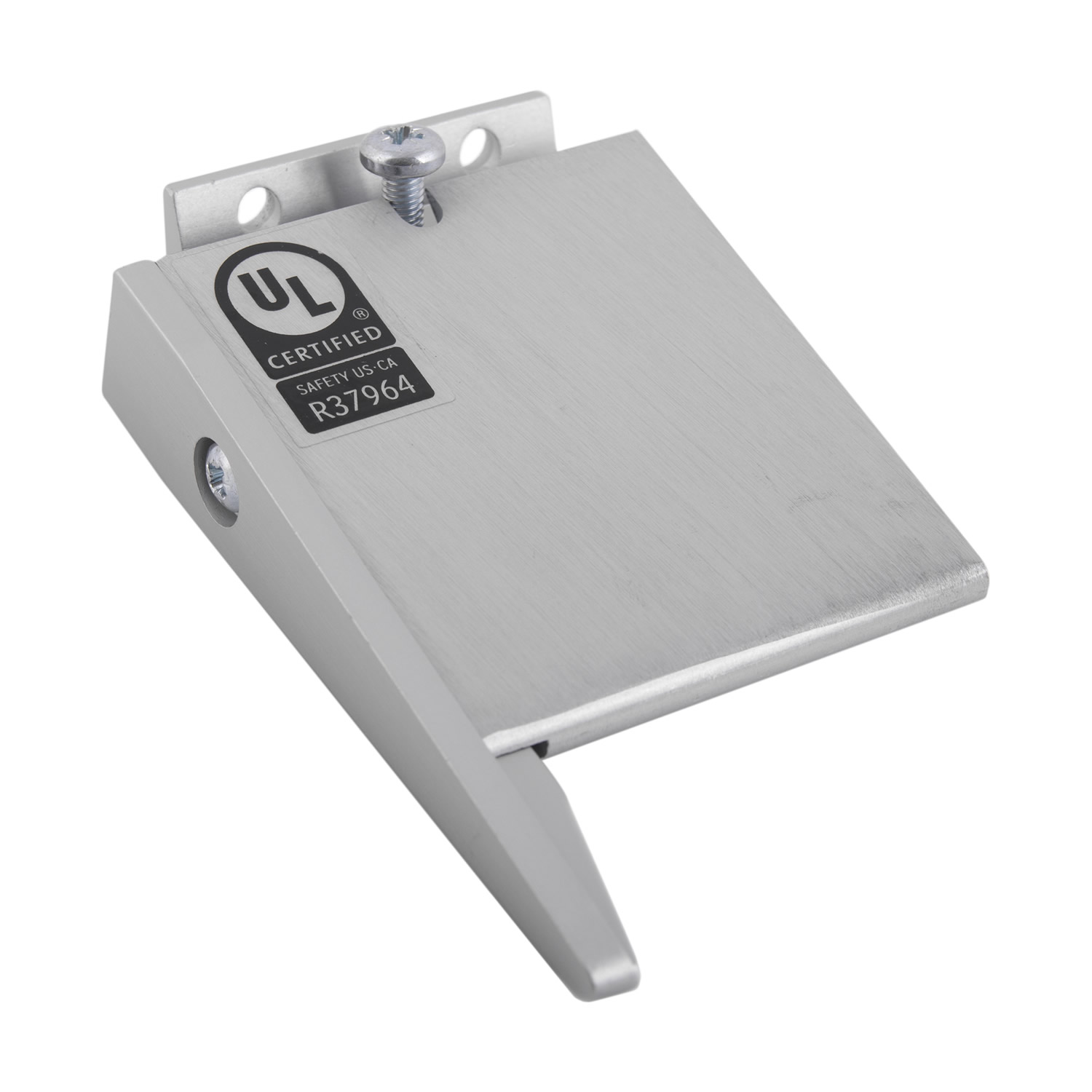

Manufactured in the UK, the Selectrite MK2 fire door co-ordinator is designed for use on rebated double doors, working in conjunction with fire door closers. The Selectrite co-ordinator ensures that rebated double door meeting stiles close in the correct sequence, enabling each door leaf to shut fully, and helping to maintain the fire integrity of your doors.
Please note: suitable for use on double doors where the maximum rebate size is 25mm. For larger rebates, an extended rebate catch is available (sold separately).
This is the technical data for the Selectrite MK2 Fire Door Co-ordinator.
|Dimensions (HxW)||Main Body: 103x71mm
Catch Block: 55x48mm
Lift Arm: 55x65mm
|Door Suitability||Maximum door weight (each leaf): 100kg
Maximum rebate: 25mm
Door width (each leaf): Minimum: 700mm, Maximum: 1000mm
Door thickness: Minimum: 38mm, Maximum: 58mm
|Finish||Silver anodised aluminium|

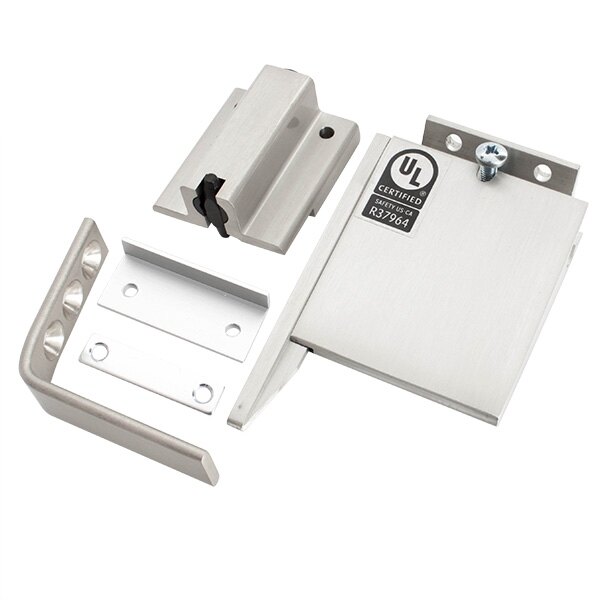

|Kit Contents||1 x Standard 102 adjuster arm
1 x Standard fire regulated rebate catch
1 x Lift arm
Fixing screws and impact plates
The following technical data sheets are available for this product:
|Product Code: SRMK2S||
Lead Time: 7–10 days
£35.99 ex VAT
£43.19 inc VAT
The following delivery options are available on this product.
