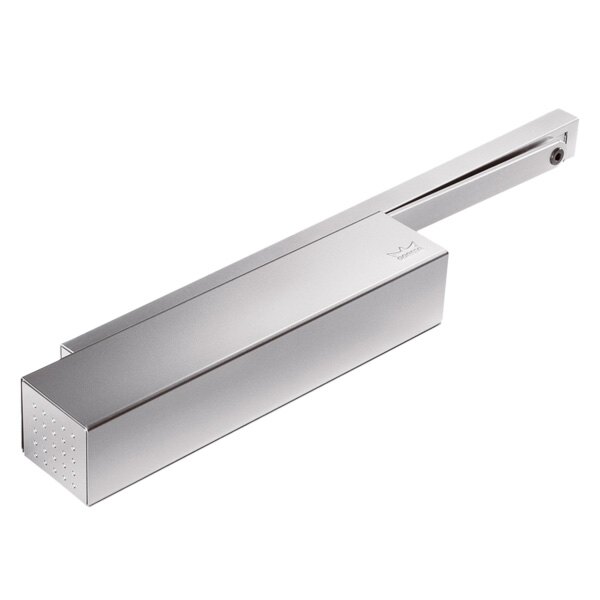

Dorma TS91 Overhead Door Closer with Slide Arm - Power Size EN 3

The Dorma TS91 is a cam action overhead door closer with slide channel arm. The cam action construction enables a door to be opened using a low amount of force, making it easy for use by children, the disabled and the elderly. Featuring an adjustable closing speed and latching action, the Dorma TS91 overhead door closer is available with electro-magnetic hold-open functionality. The electro-magnetic function allows the unit to be wired in to the existing fire alarm system and closes the door when the fire alarm system is activated, during a power failure or when closed manually.

• Suitable for use on single action doors
• Certifire approved - CF119 certificate
• CE marked
• Designed specifically for internal doors
• 120 minute fire rating
• 5 year warranty
• Fixed power size EN 3 - suitable for maximum door width of 950mm
• Cam action overhead door closer
• Independently tested to BS EN 1154
• Slide channel/track arm
• Two versions available:
  • TS91 - Standard Closer
  • TS91EMF - Closer with electro-magnetic hold-open function
• Adjustable closing speed and latching action as standard
• Electro-magnetic hold-open version is wired in to the fire alarm system
• Suitable for pull-side door leaf / push-side transom fixing
• Non-handed - for left and right handed applications
• Ideal for applications where children, the disabled or elderly may use the doors frequently
• High quality silver finish
• Full classifications:
  • TS91: 4 | 8 | 3 | 1 | 1 | 3
  • TS91EMF: 3 | 8 | 3-5 | 1 | 1 | 3
