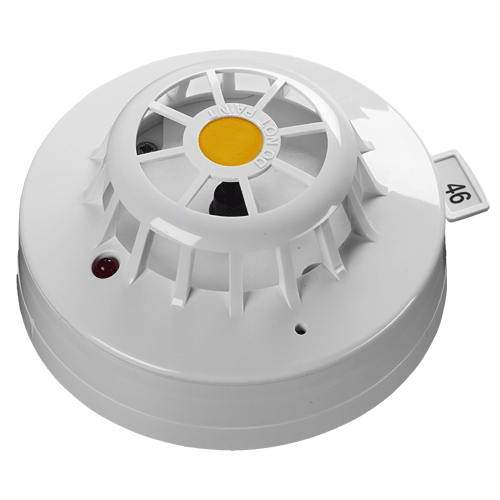

Apollo XP95 Class A2S Heat Detector

To operate with the XFP and Kentec fire alarm panels, the Apollo XP95 heat detector needs to be installed using a standard XP95 series mounting base or an XP95 isolating base. The mounting bases contain an XPERT card which allows the detector to become part of the addressable fire alarm system. The Apollo XP95 heat detector monitors the air using a single thermistor network.

• Activates when the temperature reaches 55°C (class A2S)
• Contains a single thermistor to monitor heat
• LPCB and VdS approved
• CE marked
• Designed for use with addressable fire alarm panels including:
  • XFP Single Loop Panel - 16 Zone
  • XFP Two Loop Panel - 32 Zone
  • Kentec Syncro AS Single Loop Panel - 16 Zone
• Unaffected by atmospheric pressure
• Self-extinguishing white polycarbonate base
• Red LED alarm indicator
• Supply voltage: 17 to 28 Volts dc
• Operating temperature: -20°C to +70°C
• IP53 rating
• Please note: The Apollo XP95 detectors require an XP95 mounting base or an XP95 isolating base to operate with the XFP and Kentec addressable fire alarm panels
