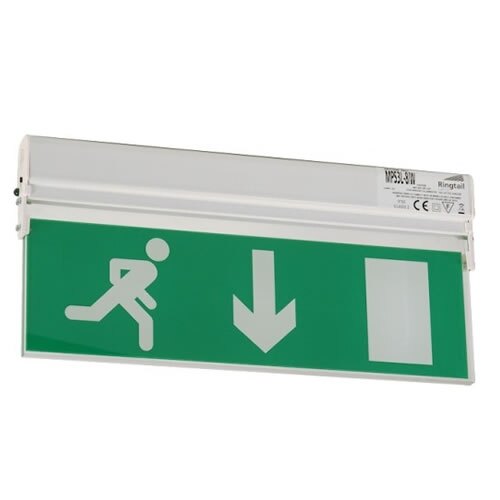

Slimline LED Fire Exit Sign - MPS3L-W
Product Overview
FAQs (1)
The MPS3L-W is an elegant and compact fire exit sign blade with a slimline body. The use of white LEDs makes it extremely economical over its life span as well as offering good luminance. The MPS3L-W is suitable for incorporation into an emergency lighting system complying with BS 5266-1:2011.
Technical Data
- Maintained units
- Backup duration: 3 hours
- Available with optional viewing distances:
- Model RL-MPS3L-8 - 18 metres
- Model RL-MPS3L-11 - 30 metres
- IP42 rating (Interior use)
- 3 Year Warranty on Maintained units
- Fully complies to BS EN 60598-2-22
- Supplied complete with LEDs and battery
- Can be hung, ceiling-mounted, wall-mounted and side-mounted (all fittings included)
- Elegant slim profile
- Manufactured in UK
Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.
Typical Applications
Typical applications for the MPS3l-W slimline white LED fire exit sign include installations on exit routes in public areas, bars, restaurants, cafes etc.Technical Data
This is the technical data for the Slimline LED Fire Exit Sign - MPS3L-W.
| Power Consumption | RL-MPS3L-8: 6 W RL-MPS3L-11: 6.5 W |
|---|---|
| Battery Type | 3.6V 1Ah |
| Backup Duration | 3 Hours |
| Light Output | RL-MPS3L-8: 12 LED's - 80 Lumens RL-MPS3L-11: 15 LED's - 80 Lumens |
| Dimensions (HxWxD) | RL-MPS3L-8: 130x285x25 RL-MPS3L-11: 200x345x25mm |
| Weight | RL-MPS3L-8: 520g RL-MPS3L-11: 860g |
| Viewing Distance | RL-MPS3L-8: 18 Metres RL-MPS3L-11: 32 Metres |
Product Datasheets
The following datasheets are available for this product.
Q. Can these units be fitted using surface mounted cabling / trunking?
A. Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.
Pricing & Availablity
| Model | Stock | Price | Weight |
|---|---|---|---|
|
Arrow Down 18 Metres Product Code: RL-MPS3L-8/W |
Stock Level:
In stock Expected dispatch: 4th Jun
|
Price:
£78.99 ex VAT £94.79 inc VAT |
Weight:
1.75kg
|
|
Arrow Down 30 Metres Product Code: RL-MPS3L-11/W |
Stock Level:
In stock Expected dispatch: 4th Jun
|
Price:
£95.79 ex VAT £114.95 inc VAT |
Weight:
1.75kg
|
|
Arrow Left / Right 18 Metres Product Code: RL-MPS3L-8/W/LR |
Stock Level:
In stock Expected dispatch: 4th Jun
|
Price:
£78.99 ex VAT £94.79 inc VAT |
Weight:
1.75kg
|
|
Arrow Left / Right 30 Metres Product Code: RL-MPS3L-11/W/LR |
Stock Level:
In stock Expected dispatch: 4th Jun
|
Price:
£95.79 ex VAT £114.95 inc VAT |
Weight:
1.75kg
|
