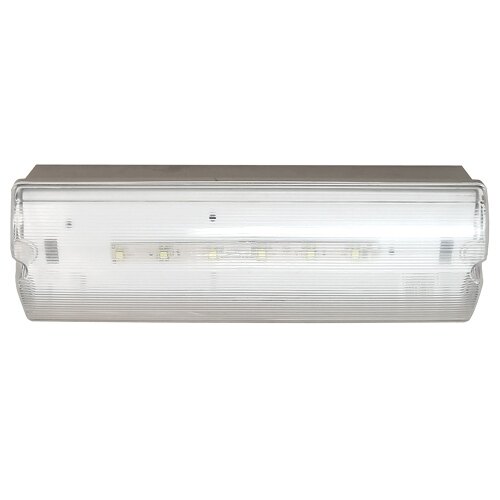

LED Emergency Bulkhead Light with Self-Test - X-CSL
Product Overview
Technical Data
FAQs (2)
The X-CSL LED emergency bulkhead will provide the same output and performance as a standard emergency light but with the added advantage of low power consumption and running costs. The light is fitted with a self-test feature and has an IP65 rating making them ideal for installing in internal or external environments. The X-CSL is suitable for incorporation into an emergency lighting system complying with BS 5266-1:2011.
- Maintained units
- Switchable emergency lighting function (included on maintained units only)
- Backup duration: 3 hours
- Light output: 150 Lumens
- IP65 (Weatherproof)
- 3 Year Warranty on Maintained units
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Polycarbonate/ABS Construction
- Hinged/removable gear tray
- Supplied complete with LEDs and battery
- Built in self-test facility
- Universal Legend Available
- Suitable for wall or ceiling mounting
- Manufactured in UK
Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.
Typical Applications
Typical applications for the X-CSL LED emergency light include installations in student accommodation courtyards, offices, hotels, pubs, restaurants, factories, warehouses, shops, sports halls, youth clubs etc.
Technical Data
This is the technical data for the LED Emergency Bulkhead Light with Self-Test - X-CSL.
| Product Code | RL-X-CSL3M |
|---|---|
| Weight | 1.00kg |
| Lamp Type | 6 CREE LEDs |
| Power Consumption | 7W |
| Battery Type | 3.6V 4Ah |
| Backup Duration | 3 Hours |
| Light Output | 150 Lumens |
| Dimensions (HxWxD) | 75x350x120mm |
Product Datasheets
The following datasheets are available for this product.
Q. Can these units be fitted using surface mounted cabling / trunking?
A. Yes, these emergency lighting units also have cable knock-outs allowing you to surface mount the cabling to the unit and if you so wish, to use trunking.
Q. Can the emergency lights with IP65 rating be fitted with emergency showers?
A. Yes, as this rating identifies that the unit is protected against low pressure jets from all directions - limited ingress permitted.
