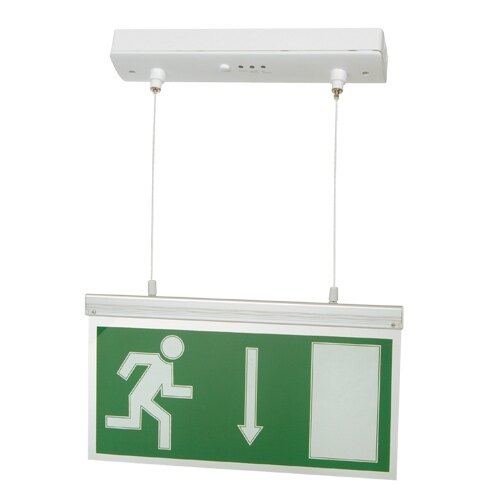

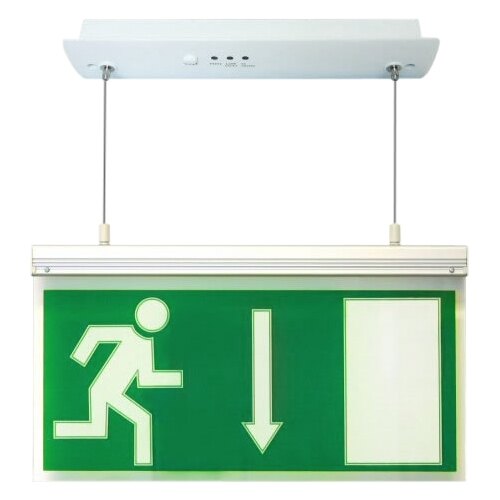

Hanging LED Fire Exit Sign with Self-Test - MPL3M

Discontinued Product

This product has been discontinued.

Product Overview
The MPL3M is a hanging, LED, illuminated emergency escape route sign suitable for interior applications. The use of LEDs makes it extremely economical over its life and suitable for incorporation into an emergency lighting system complying with BS 5266-1:2011. The use of light materials ensures that the unit can be mounted in many locations easily.
  • Maintained units
  • Available in two viewing distances:
    • Model RL-MPL3M-8: 18 Metres
    • Model RL-MPL3M-11: 32 Metres
  • IP30 rating (Interior use)
  • 3 Year Warranty on Maintained units
  • Backup duration: 3 hours
  • Lightweight build reduces units weight
  • Hot-wire tested as defined by ICEL
  • Fully complies to BS EN 60598-2-22
  • Supplied complete with LEDs and battery
  • Built in self-test facility
  • Suitable for recess or surface mounting
  • Charge and status indication LED
  • Manufactured in UK

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Technical Data
Product Code
Arrow Down, 18 Metres RL-MPL3M-8
Arrow Left / Right, 18 Metres RL-MPL3M-8/LR
Arrow Down, 32 Metres RL-MPL3M-11
Arrow Left / Right, 32 Metres RL-MPL3M-11/LR
Brand Ringtail Lighting
Backup Duration

3 Hours

Battery Type

3.6V 1ah

Dimensions (HxWxD)

RL-MPL3M-11: 340 x 17 0x 8 mm

RL-MPL3M-8: 278 x 90 x 8 mm

Lamp Type

RL-MPL3M-8: 12 LEDs

RL-MPL3M-11: 15 LEDs

Light Output

RL-MPL3M-8: 12 LEDs - 55 Lumens

RL-MPL3M-11: 15 LEDs - 45 Lumens

Power Consumption

RL-MPL3M-8: 6W

RL-MPL3M-11: 6.5W

Weight

RL-MPL3M-8: 0.98kg

RL-MPL3M-8/LR: 0.98kg

RL-MPL3M-11: 1.15kg

RL-MPL3M-11/LR: 1.15kg
