Outdoor Defibrillator Cabinet with Code Lock, Heating System and LED Light

Discontinued Product

This product has been discontinued.

alternative product

Outdoor Defibrillator Cabinet with Lock, Heating and Light

Manufactured in the UK from a durable polycarbonate, this IP66 rated cabinet is suitable for all environments and designed for all makes of defibrillator. Featuring a heater, LED lighting and marine grade stainless steel keypad for maximum security.

  • Ideal for public access outdoor installations
  • Battery powered, removable LED light for use as a torch in a rescue situation

£551.03 inc VAT

£459.19 ex VAT

View Product
Product Overview

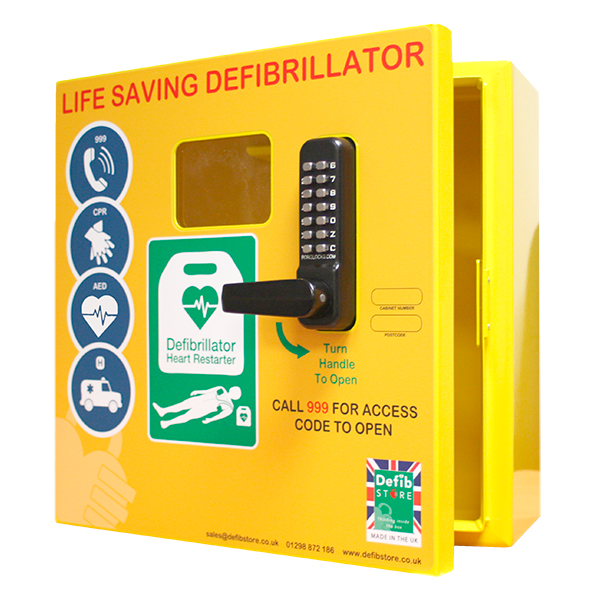

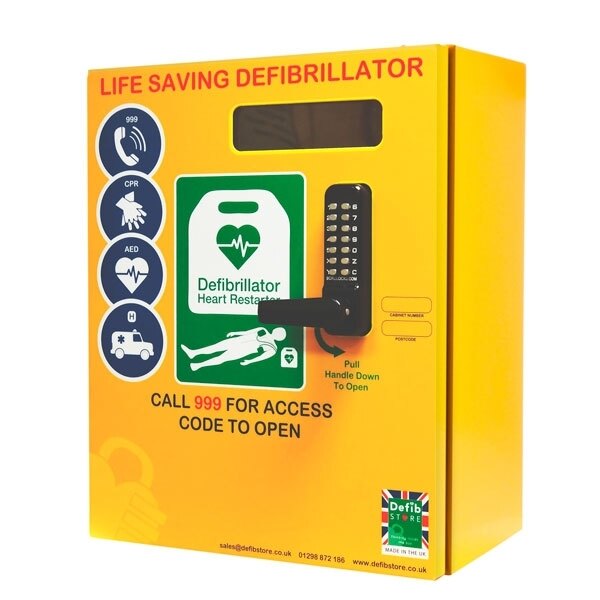

Our UK manufactured outdoor cabinets have a high grade powder coated yellow finish and are supplied with a IP66 rating to provide a secure storage solution for your defibrillator. For additional security, these cabinets are also fitted with a stainless steel code lock that has been salt spray tested for 10,000 hours. The cabinets are ideal for storing in a public access location. The thermostatically controlled heater built into the cabinets maintains the internal temperature to ensure the defibrillator is stored within its operating temperature.

  • Suitable for all makes of defibrillator:
    • 1000 model will accommodate all defibs without a carry case
    • 2000 model will accommodate all defibs with a carry case
    • Please compare cabinet and AED dimensions before purchase
  • 1000 model:
    • Internal dimensions: 330x280x140mm
    • External dimensions: 400x400x200mm
  • 2000 model:
    • Internal dimensions: 400x300x180mm
    • External dimensions: 500x400x250mm
  • Designed for outdoor installation - IP66 weatherproof rated
  • High grade powder coated yellow finish

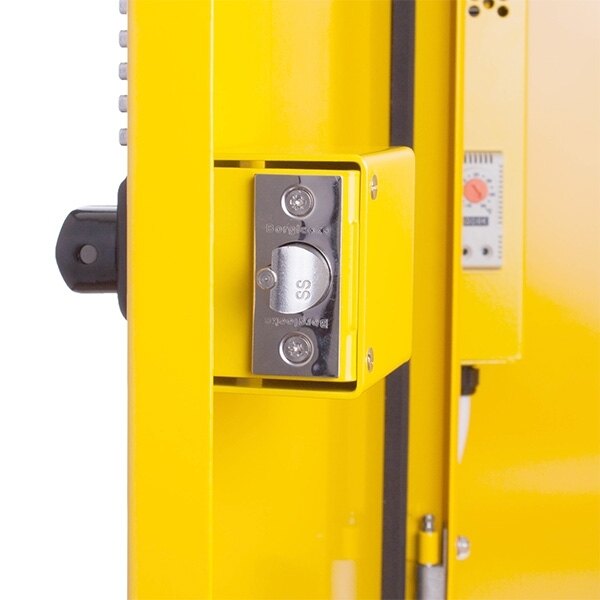

  • Fitted with salt spray tested (10,000 hours) stainless steel code lock
  • Secure access code is set by the manufacturer - for security purposes please remove the access code sticker from the cabinet

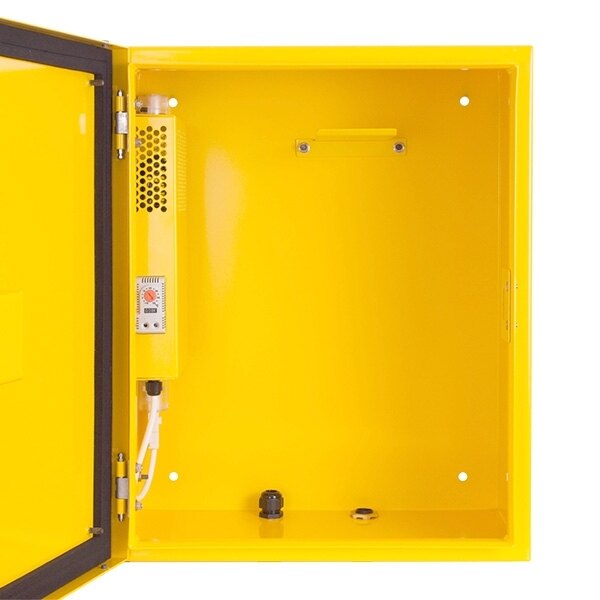

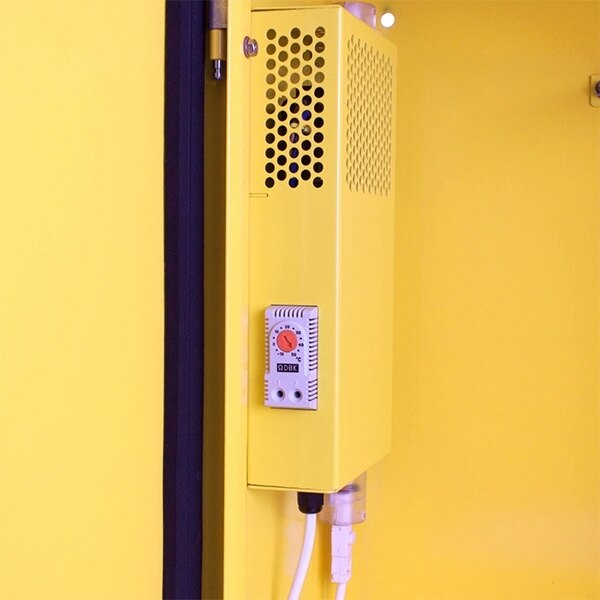

  • Mains powered thermostatically controlled heating system maintains the internal temperature (above 7 °C)
  • Magnetic LED light helps to aid visibility and provides indication that the mains power is present
  • Defibrillator remains accessible but protected against misuse or theft
  • Viewing window allows the defibrillator status indicator to be seen without opening the cabinet
  • Completely water and dust proof - IP66 rated
  • Internal hook holds the defibrillator in place
  • Breather drain at the bottom helps against a build-up of condensation - 2000 model only
  • Ideal for sports stadiums, town centres and other public access locations
  • Manufactured in the UK
  • 2 year manufacturers warranty

Please note:

  • Unsuitable for coastal areas, please enquire for information on the new stainless steel model
  • It is recommended that mains powered heated cabinets are installed by a qualified electrician. For installation in a redundant Telephone Box special wiring is required, please enquire for further details - only available for the 2000 model.
  • The cabinets should be opened and aired out on a monthly basis to prevent condensation - 1000 model only
  • Not all ambulance services support or advocate the use of lockable cabinets and some do not keep or issue lock codes. Before you order, please check with your local emergency services.

The table below shows the defibrillators that can be stored using these cabinets. The 2000 Model cabinet can accommodate all defibrillators with their AED carry case, however the 1000 Model cabinet is smaller and may not suit all defibrillators within their carry case. To be certain, please check that the internal dimensions of your chosen cabinet can accommodate your device before ordering.

Cardiac Science

Model Number
Powerheart G5 Semi-Auto Defibrillator
Powerheart G5 Fully Auto Defibrillator


Model Number
Lifeline AED Defibrillator
Lifeline Auto Defibrillator


Model Number
Samaritan PAD 350P Defibrillator
Samaritan PAD 360P Defibrillator
Samaritan PAD 500P Defibrillator


Model Number
HeartOn A15 Defibrillator


Model Number
HeartStart HS1 Defibrillator
HeartStart FRx Defibrillator


Model Number
Lifepak CR Plus Fully Auto Defibrillator
Lifepak CR Plus Semi-Auto Defibrillator
Lifepak 1000 Defibrillator
Lifepak 1000 ECG Defibrillator


Model Number
HeartSave PAD Defibrillator
HeartSave AED Defibrillator
HeartSave AED-M Defibrillator


Model Number
FRED Easy Life Fully Auto Defibrillator
FRED Easy Semi-Auto Defibrillator
FRED Easyport Pocket Defibrillator


Model Number
Zoll AED Plus Semi-Auto Defibrillator
Zoll AED Plus Fully Auto Defibrillator Unit
Technical Data
Product Code

1000 Model:  DSSCLHLED

2000 Model:  DSMCLHLED


Mild Steel

Dimensions (HxWxD)

Model 1000 (Internal): 330x280x140mm

Model 1000 (External): 400x400x200mm

Model 2000 (Internal): 400x300x180mm

Model 2000 (External): 500x400x250mm

Manufacturer Part Number

Model 1000: DFS1K442LLE

Model 2000: DFS5425LLE




Excellent Warranty

This product is supplied with a 2 year manufacturers warranty as standard
