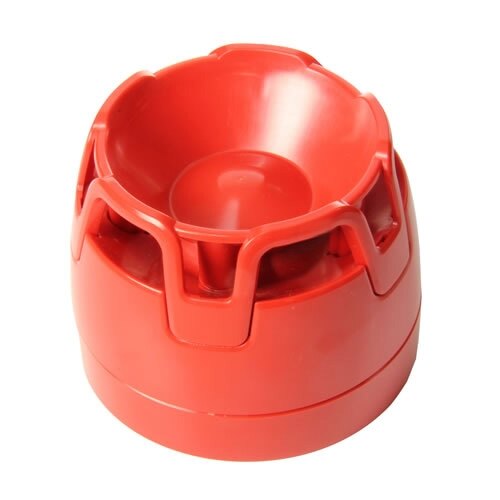

Honeywell Non-Addressable Sounder

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

Compliant with EN 54-3 standard, the Honeywell non-addressable sounder has a number of installer and user friendly features, including first fix mounting, adjustable volume settings and a superior sound output at low power consumption. Designed to provide audible warning in the event of an activated conventional fire alarm system, the Honeywell sounder has 32 tones to choose from and can be synchronised or staged for phased evacuation.

  • Suitable for use with Morley Horizon 2 zone, 4 zone and 8 zone fire alarm panels
  • Fully approved to EN 54-3 standard
  • Available with deep base to achieve IP65 protection
  • First fix mounting allows electrical continuity testing prior to device fitting
  • 32 tones to choose from
  • Average 100dB sound output
  • Highly visible red body
  • Easily adjustable volume settings
  • Suitable for wall or ceiling mount applications
  • Allows synchronised or staged sound output
Technical Data

Technical Data

This is the technical data for the Honeywell Non-Addressable Sounder.

Product Code
Low Profile Base MINASORFF
Low Profile Base 0.2kg
Deep Base 0.207kg
Dimensions (HxDia) Low Profile Base: 77x100mm
Deep Base: 102x100mm
Operating Voltage 9-29V DC
Current Consumption Average at 29V DC: 31mA
Operating Temperature -25 °C to +70 °C
Relative Humidity (non-condensing) 93%
Sound Output Maximum: 107dB at 1m (Tone 23)
IP Rating Low Profile Base: IP21C
Deep Base: IP65
Construction Flame Retardant PC/ABS

Product Datasheets

The following datasheets are available for this product.
