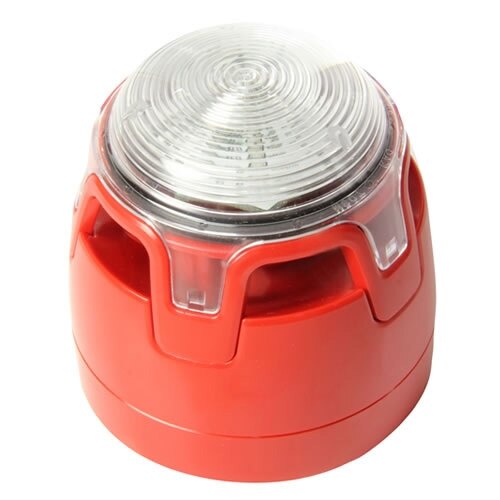

Honeywell EN 54-23 Approved Sounder Beacon

Discontinued Product

This product has been discontinued and is no longer available to buy.

Product Overview

These Honeywell sounder beacons are designed for use where dual audible and visual alarm devices complying with EN 54-23 and EN 54-3 are required. Featuring 32 tones and high output LEDs, the Honeywell sounder beacons provide superior light coverage and synchronised audible and visual cues to ensure the safest evacuation possible. The EN 54-23 approved sounder beacons are suitable for wall or ceiling mounting, and are available with a deep base fixing for IP65 rated protection.

  • Suitable for use with Morley Horizon 2 zone, 4 zone and 8 zone fire alarm panels
  • Approved to meet EN 54-23 and EN 54-3 standards
  • First fix installation design allows electrical continuity testing prior to device fitting
  • Choice of white or red light flash options
  • Features 32 tones and high output LEDs for audible and visual warning
  • Available with a deep base for IP65 rated protection
  • Suitable for wall or ceiling mounting
  • High sound output: 100dB
  • Maximum illumination output reduces the number of devices required
  • Red body and clear lens as standard
Technical Data

Technical Data

This is the technical data for the Honeywell EN 54-23 Approved Sounder Beacon.

Product Code
Low Profile Base, White Flash MINASSRWF
Deep Base, White Flash MINASSRWDF
Low Profile Base, Red Flash MINASSRRF
Deep Base, Red Flash MINASSRRDF
Low Profile Base, White Flash 0.283kg
Deep Base, White Flash 0.293kg
Low Profile Base, Red Flash 0.283kg
Deep Base, Red Flash 0.293kg
Dimensions (HxDia) Low Profile Base: 98x100mm
Deep Base: 122x100mm
Operating Voltage 12-29V DC
Current Consumption Average at 29V DC: 49mA
Operating Temperature -25 °C to +70 °C
Relative Humidity (non-condensing) 93%
IP Rating Low Profile Base: IP21C
Deep Base: IP65
Construction Flame retardant PC/ABS
