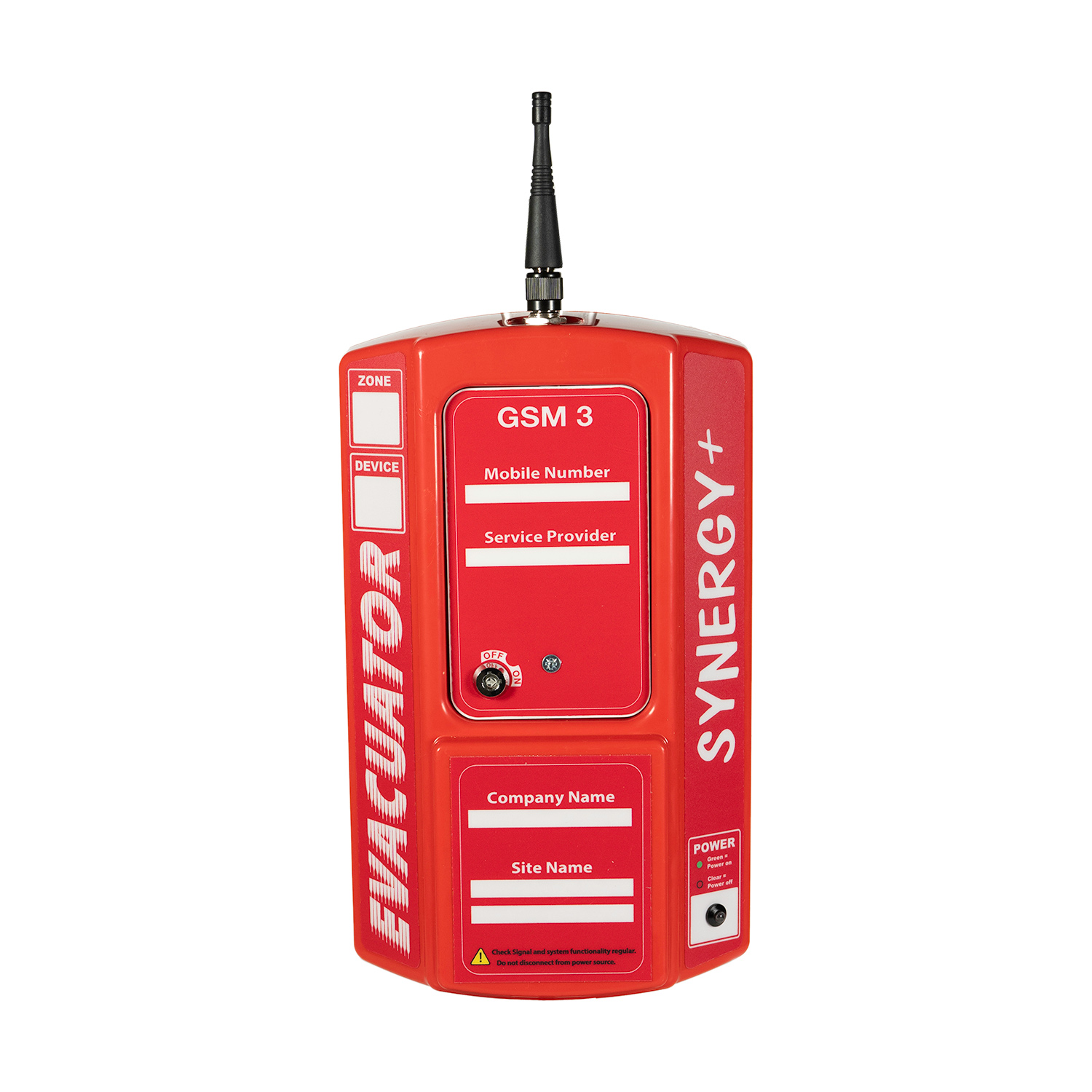

Evacuator Synergy+ Wireless Site Alarm GSM Gateway

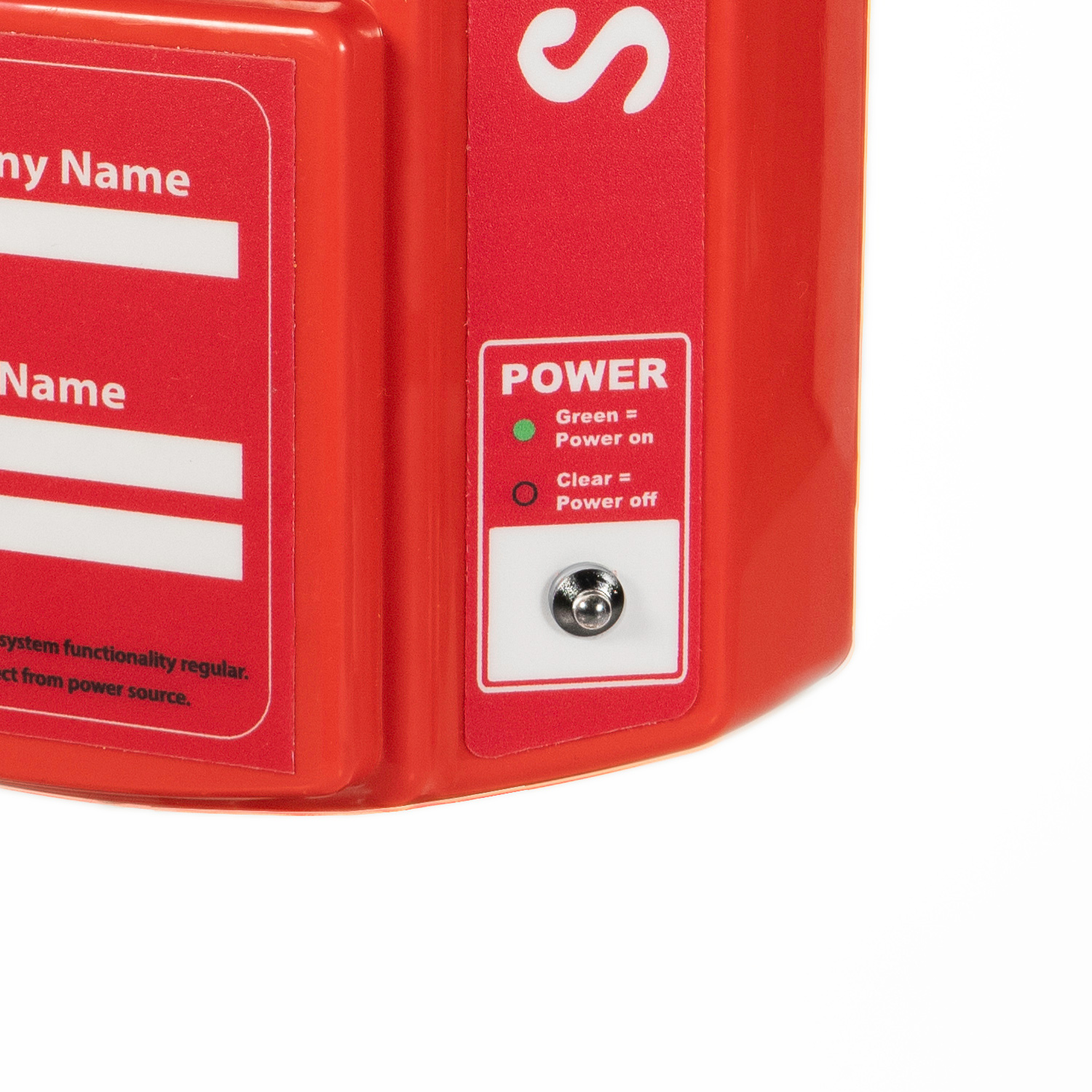

The Synergy+ GSM Gateway connects to a touchscreen Base Station to enable both SMS notifications of fire & first aid emergencies and remote monitoring of the all devices on site via the evac-m web portal. It is powered by an included 4.5V mains adaptor but also includes an internal, replaceable battery pack as a backup power supply in the event of mains failure and features a bright mains indicator LED. 12 months subscription to the evac-m portal is included with each GSM Gateway, and it is compatible with most mobile networks so customers can install their own SIM card (not included) based on local signal coverage on-site.

Please Note: The Synergy+ range (red) is not compatible with the previous Synergy RF range (white).

• Enables real-time system monitoring of device status and event history
• Synergy+ Base Station unit required for GSM Gateway functionality
• Notify to up to 5 phone numbers each for fire and first aid – email notifications can be setup via the evac-m web portal
• Multiple GSM Gateway units can be registered to monitor many sites via one evac-m dashboard
• Mains powered via included 4.5V adaptor with battery backup
• Part of the Synergy+ wireless site alarm range
  • Wirelessly interlink up to 250 other Synergy+ devices
  • Mesh network connectivity – all in-range units communicate with each other, no single point of failure
  • Monitor, test, and reset all units in a system from a single location (some features require a Base Station)
  • Category One radio module using 869MHz
  • Radio frequency range: 2000m line-of-sight
• Works with most mobile networks – pick a SIM card (not included) on each site to achieve the best signal
• 12 months subscription to evac-m web portal included with purchase (annual subscription required)
• Suitable for indoor use only
• Designed for wall or post mounting
• Replacement battery packs (black) available separately
• Dimensions (HxWxD): 350 x 163 x 98mm
• CE, UKCA, RoHS, and EMC compliant

Please Note: Base Station units are required for First Aid or GSM Gateway functionality and also provide additional benefits for maintenance and testing, however they are not required for systems only utilising Call Points, Smoke & Heat Detectors, and Sounder / Strobe units.
