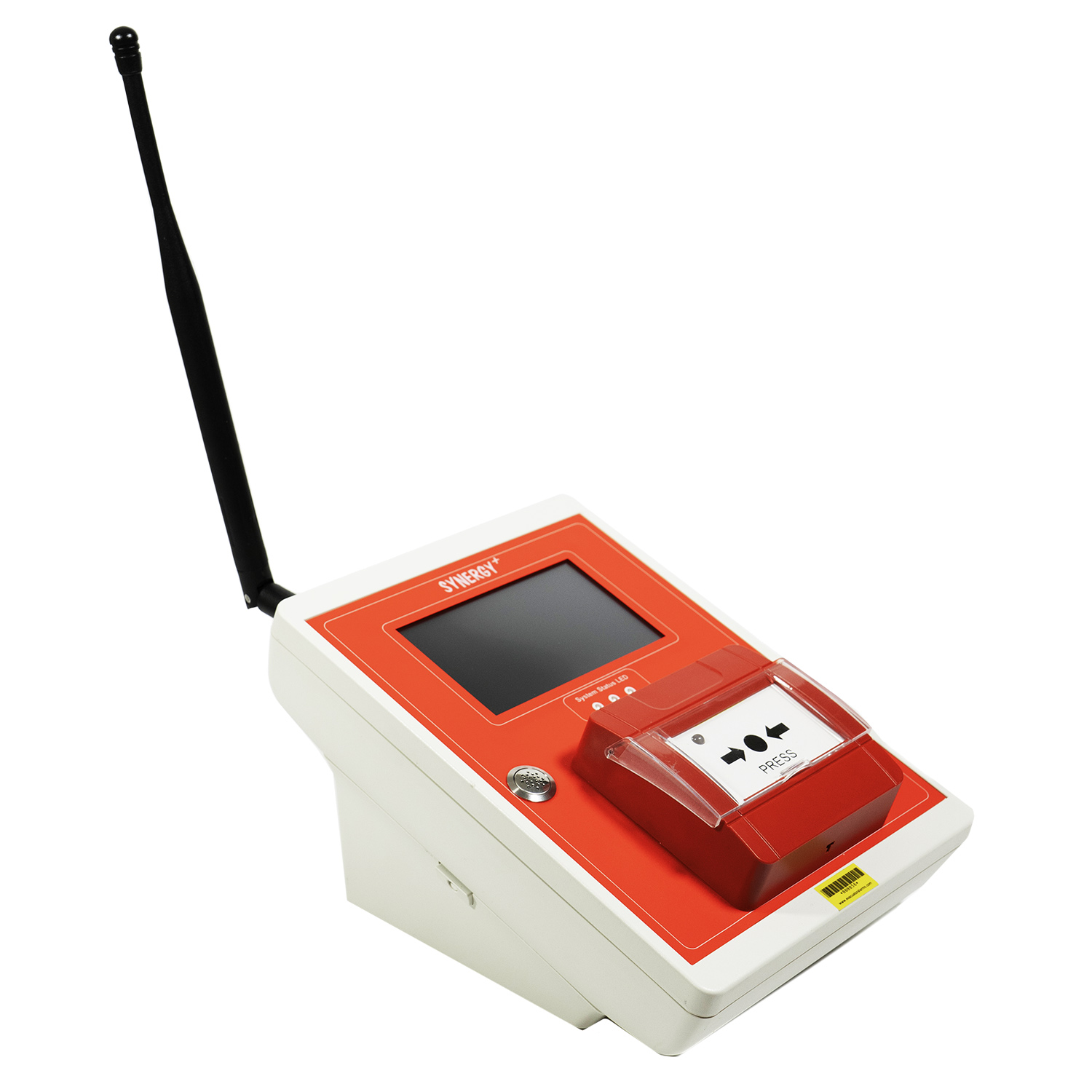

Evacuator Synergy+ Wireless Site Alarm Base Station with Call Point

With easy monitoring and maintenance of larger systems , the Synergy+ Base Station is ideal for areas such as site management or security offices, where the display can be easily seen as well as enabling additional features such as first aid. The full-colour touchscreen makes it easier to link more units and shows the system status at a glance. While a Synergy+ site alarm system will work without a Base Station, they are required for first aid notifications, GSM Gateway functionality, and the ability to group devices into Zones.

Please Note: The Synergy+ range (red) is not compatible with the previous Synergy RF range (white).

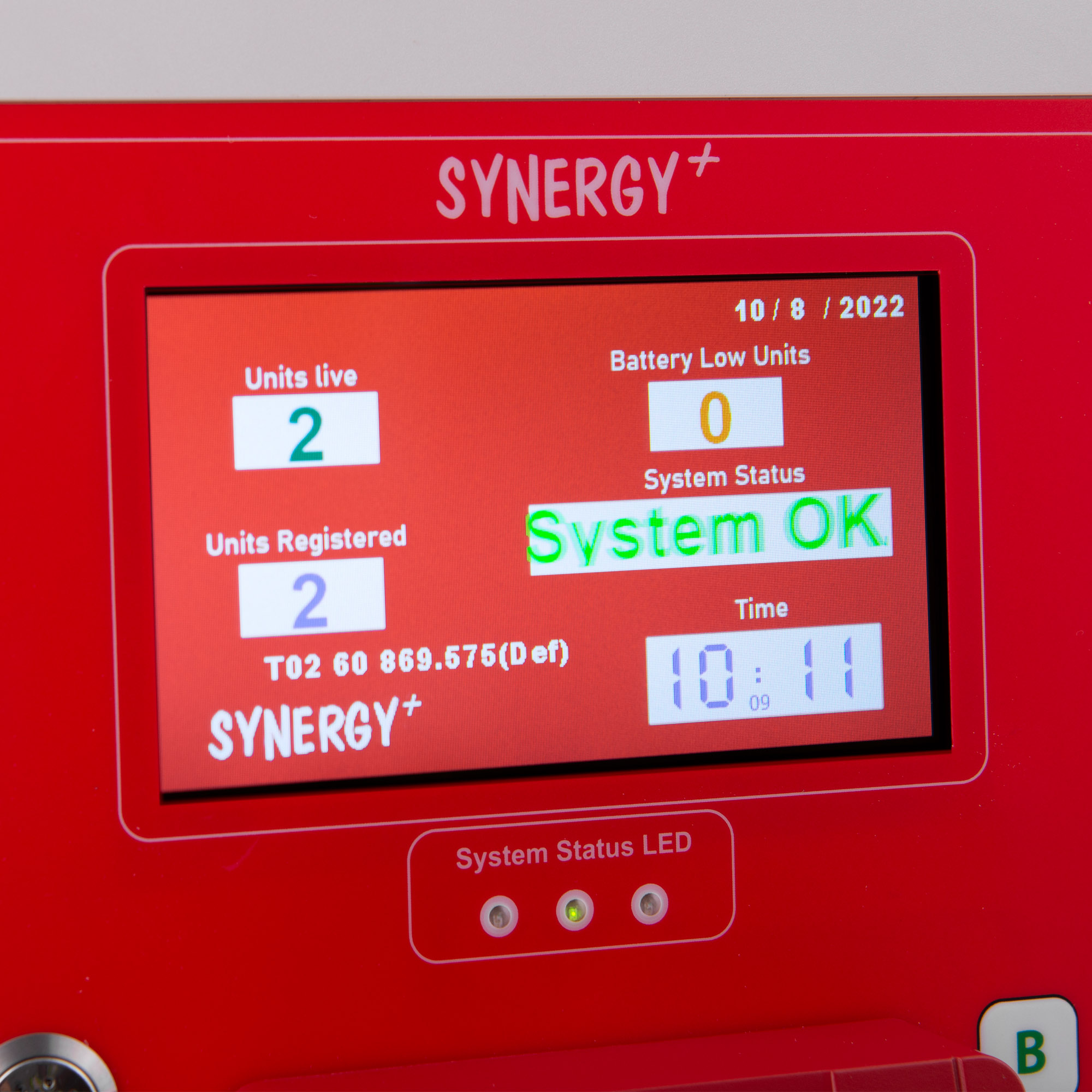

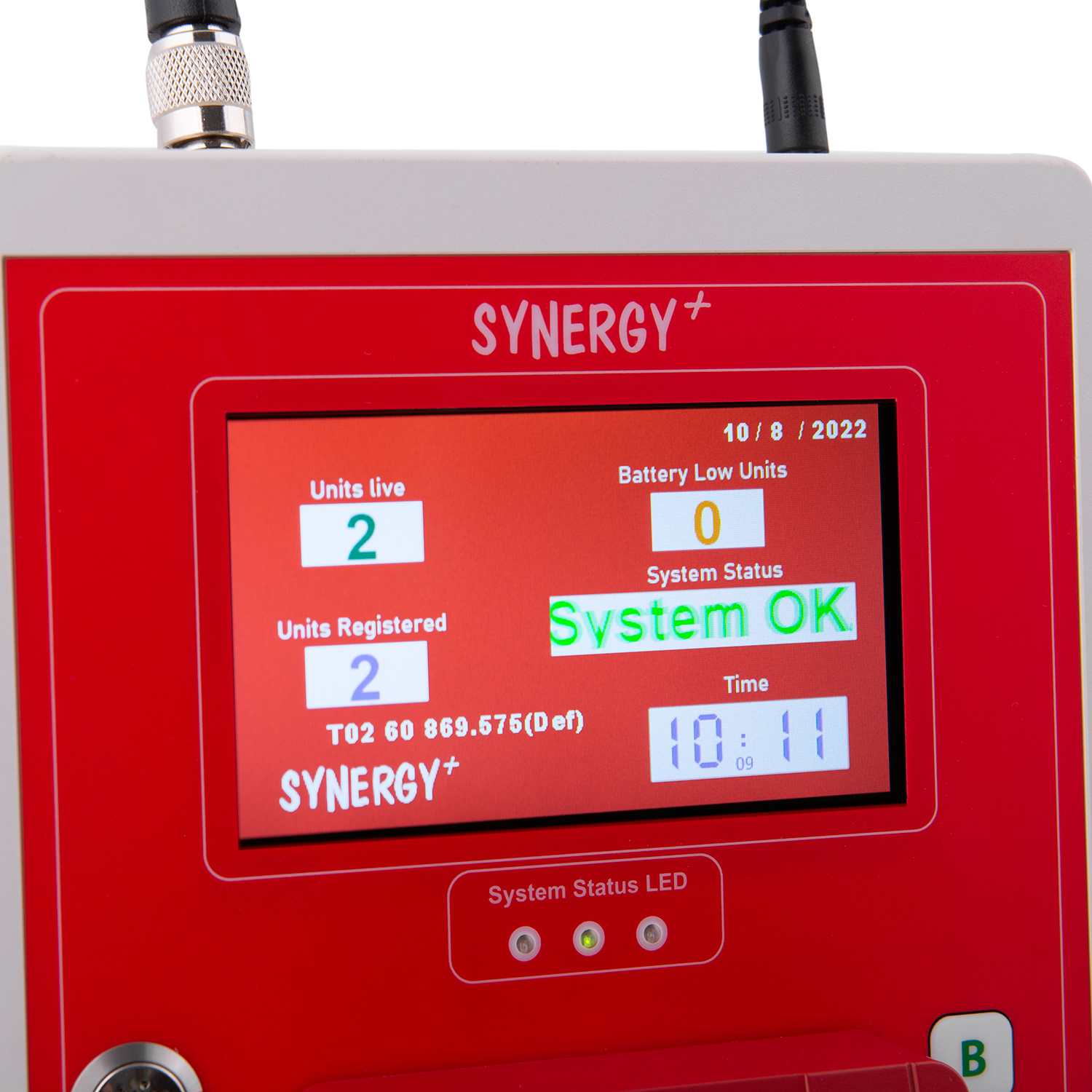

• Full colour touchscreen display for easy system setup and monitoring
• Front facing call point for manual activation, supplied with hinged cover
• Allows all linked devices to be tested from a single location
• Mains powered via included 4.5V adaptor
• Real-time RF connectivity status and low battery warnings
• Part of the Synergy+ wireless site alarm range
  • Wirelessly interlink up to 250 other Synergy+ devices
  • Mesh network connectivity – all in-range units communicate with each other, no single point of failure
  • Monitor, test, and reset all units in a system from a single location
  • Category One radio module using 869MHz
  • Radio frequency range: 2000m line-of-sight
• Sounds an 85dB buzzer to alert if any devices have been activated
• Suitable for indoor use only
• Dimensions (HxWxD): 225 x 166 x 75mm
• CE, UKCA, RoHS, and EMC compliant

Please Note: Base Station units are not required for interlinking Synergy+ systems of Call Points, Smoke & Heat Detectors, and Sounder / Strobe units, but they do provide additional benefits for maintenance and testing, and are required for First Aid or GSM Gateway functionality.
