Product Overview

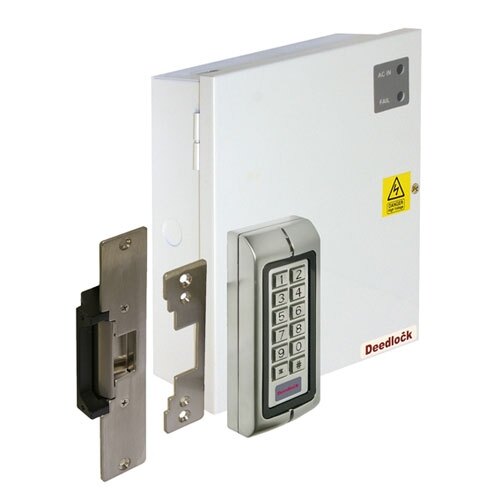

Designed to provide secure access control in to a building, this Deedlock access kit consists of a 1.0 amp power supply unit, a waterproof keypad and a 12V DC electric release strike. Suitable for external use, the keypad is IP68 rated and offers a high level of vandal resistance. On entering a correct programmed code, the electric strike releases the door for access in to the building. The access control kit is suitable for use on timber and hollow metal/aluminium door frames fitted with a mortice nightlatch.

  • Access control kit with keypad and electric release strike
  • 12V DC 1.0 amp power supply unit allows the keypad and electric release to operate
  • Weatherproof keypad is IP68 rated
  • Suitable for external use
  • Power supply unit has full electronic short circuit and overload protection
  • Electric release strike opens the door when the correct keypad code is entered
  • Designed for use with mortice nightlatches
  • Electric strike is supplied with a short faceplate (for metal frames) and long faceplate (for timber frames)
  • Pin access codes can be between 4-8 digits
  • Up to 1200 user codes available
  • Back lit keys for ease of visibility
  • Strong zinc alloy electroplated keypad case for protection against vandalism
  • Kit requires eight core alarm and security cable (not included)
  • Optional power supply unit back-up battery (12V 7Ah) not included
Technical Data

Technical Data

This is the technical data for the Access Control Maglock Kit with Keypad .

Product Code SUAKT4228
Weight 3.45kg
Dimensions (HxWxD) Power Supply Unit: 247x207x77mm
Keypad: 135x58x26mm
Electric Release (Short Faceplate): 124x40x33mm
Electric Release (Long Faceplate): 202x40x33mm
Voltage Power Supply Unit (on mains power): 13.4-14.2V DC
Power Supply Unit (on battery standby): 10.0-12.3V DC
Electric Release: 12V DC
Keypad: 12-24V AC/DC
