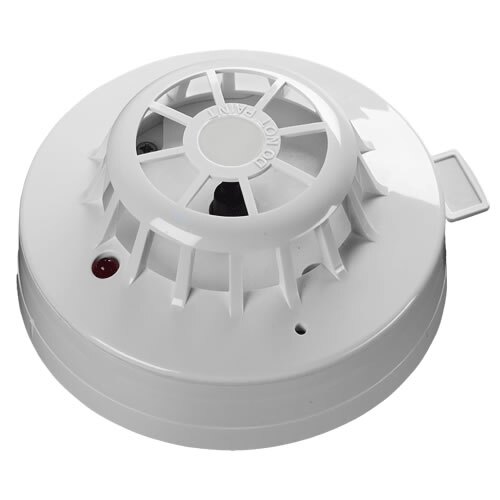

The Apollo Discovery heat detector can operate under 5 response modes according to the behaviour required for the particular environment. Incorporating a fixed temperature response for all modes, the Discovery heat detector can also be configured as a rate of rise unit. The Apollo heat detector uses a single thermistor to sense the air temperature and has a self-extinguishing white polycarbonate housing.
- Uses a single thermistor to sense the air temperature
- Features 5 modes all incorporating a fixed temperature response
- Can be configured as a rate of rise detector
- Ideal for environments that are dirty or smoky under normal conditions
- Unaffected by wind or atmospheric pressure
- Two red LED alarm indicators
- Forms part of an addressable fire alarm system
- Designed for use in conjunction with Morley DXc, Kentec Syncro AS and XFP panels
- Self-extinguishing polycarbonate housing
- IP54 rating
- LPCB and VdS approved and CE marked
Please note: The Apollo Discovery detectors require a
standard,
isolated or
sounder beacon base to operate with addressable fire alarm panels
Technical Data
This is the technical data for the Apollo Discovery Heat Detector.
Product Code |
FLAPDISH |
Weight |
0.15kg |
Dimensions (HxDia) |
42x100mm |
Relative Humidity (non-condensing) |
0% to 95% |
IP Rating |
IP54 |
Operating Voltage |
17-28V DC |
Construction |
Housing: White polycarbonate V-0 rated Terminals: Nickel plated stainless steel |
Alarm Current |
LED illuminated: 3.5mA |
Product Datasheets
The following datasheets are available for this product.
