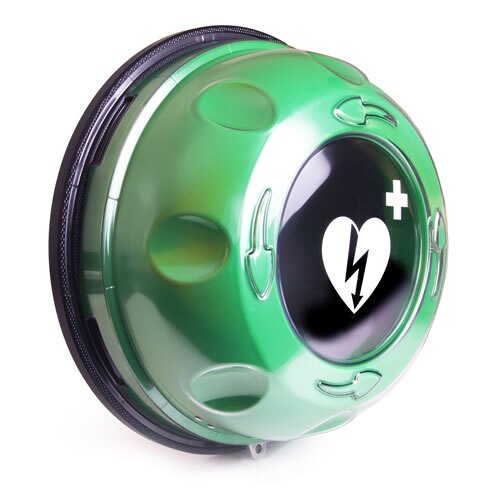

Rotaid Solid Plus Heat Defibrillator Cabinet with LEDs and Alarm

Temporarily Unavailable

This product is temporarily unavailable and is not currently available to buy. View similar products: Defibrillator Cabinets.

View alternative products

Defibrillator Cabinets

Suitable for indoor and outdoor use, we offer a range of cabinets designed for the protective storage of defibrillators.

Product Overview

Designed for outdoor installations, the Rotaid Solid Plus Heat cabinet features a heating device that maintains the internal temperature, protecting your defibrillator from the elements. This robust cabinet provides high resistance against water and dust, is fitted with UV filters to protect against direct and indirect sunlight and is operational at temperatures as low as -25 °C. It's unique circular design and twist off cover makes the defibrillator easy to access in the event of an emergency, and the LED lighting helps to illuminate the cabinet in darkness.

  • Defibrillator (only) storage cabinet
  • Designed for outdoor installation
  • Available with a 90dB audible alarm to deter theft
  • Clear vision panel allows the defibrillator to be seen at all times
  • High resistance against water and dust
  • UV filters help to protect against direct and indirect sunlight
  • 100% robust polycarbonate construction
  • Heating device maintains the internal temperature of at least +5 °C
  • Operational at temperatures as low as -25 °C
  • Low power consumption
  • 8 LED lights help to illuminate the cabinet in darkness
  • LEDs also provide visual indication if there is a heater fault or loss of power
  • IP54 water and dust ingress protection rating
  • Unique circular design with easy to remove twist off cover
  • Suitable for storing most makes of defibrillator
  • Ideal for parks, city centres, sports arenas and other outdoor applications
  • Defibrillators shown in the images are not included

Please note: The heating device is powered by a low power consumption 24V DC transformer and supplied with a 3 pin plug. It is recommended the cabinet is installed by a qualified electrician.

Technical Data
Product Code RTDHPLSLA
Brand Rotaid
Construction

Cover: 100% Polycarbonate

Back Plate: 100% HDPE Plastics

Dimensions

Depth x Diameter: 180 x 480mm

IP Rating

IP54

Weight 6.70kg
Product Datasheets
FAQs (2)
Q. Are locked AED cabinets allowed?
A.

For added security against misuse you may wish to have a lockable cabinet, for indoor cabinets, it is important that the key or key holder is easily accessible so that the defib can be removed quickly in the event of an emergency.

For outdoor cabinets, code locks give additional security against casual vandalism and theft, but may signal the device is valuable and other crime prevention measures, like door-open alarms and tracking devices, should be considered instead of or as well as a code lock. This is in line with guidance from the Resuscitation Council UK. If your defib is to used as a public access device, you will need to make sure that your local ambulance service is willing to store the access code so that in an emergency the cabinet can be unlocked.

Q. Can defibrillators be kept outside or in low temperatures?
A.

Defibrillators can be kept outside but must be kept in specially designed outdoor heated cabinets to protect them against the elements. Defibrillators have an operating temperature, usually between 0 °C to +50 °C, if the temperature falls below 0 °C the defib may not work as expected. Prolonged exposure to low temperatures is likely to significantly shorten the service life of the battery and affect the performance of the pads. Most defibs have an IP Rating of IP55 meaning that prolonged exposure to wind (dust) and rain may also damage the defib meaning that it may not work when required in an emergency.
