Geofire Doormouse Wall Mounted Electromagnetic Fire Door Holders

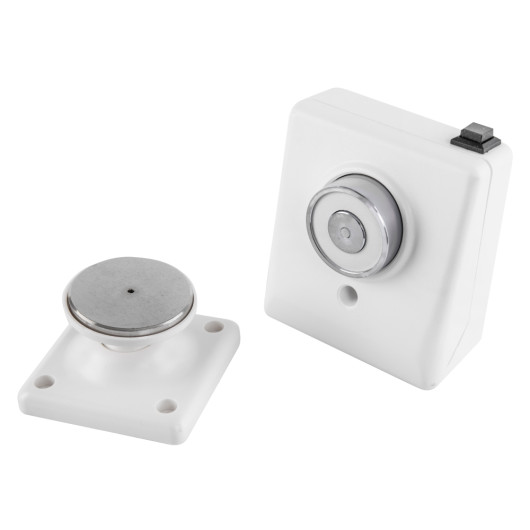

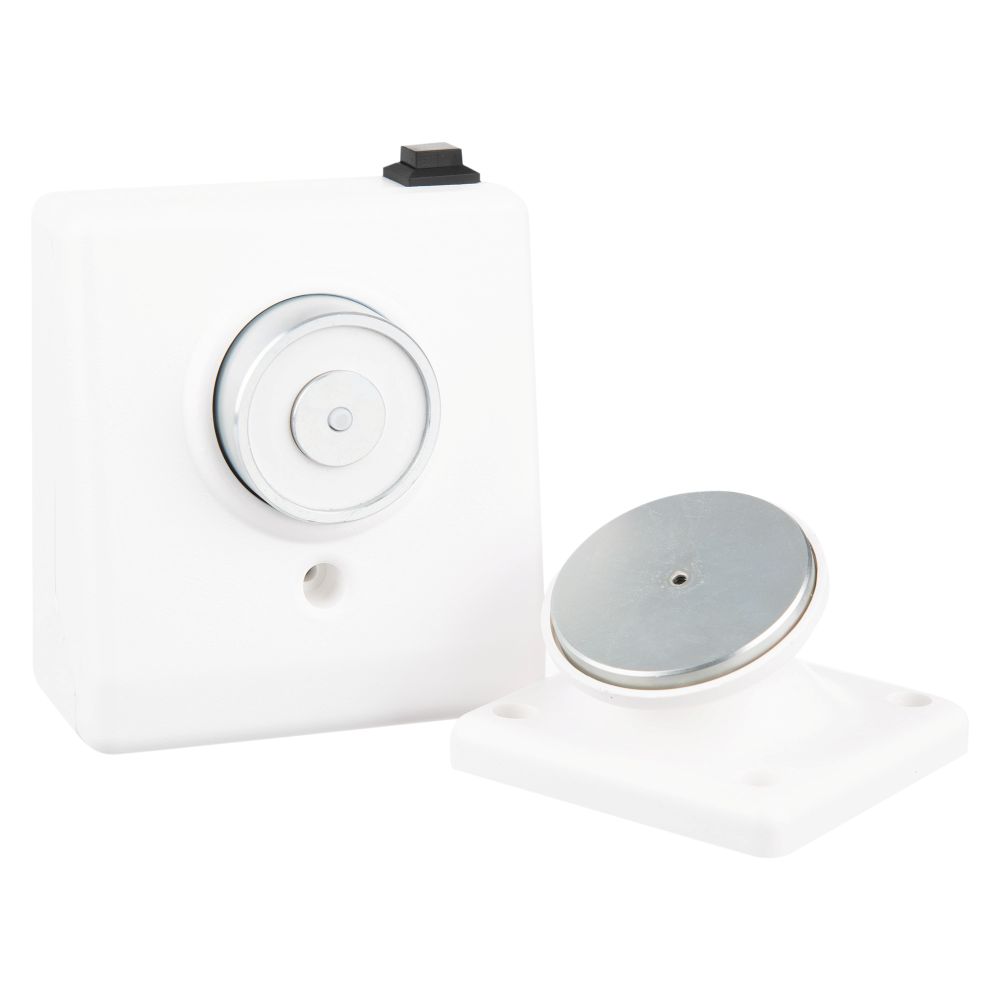

Image of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing main unit and magnet plate on a white background

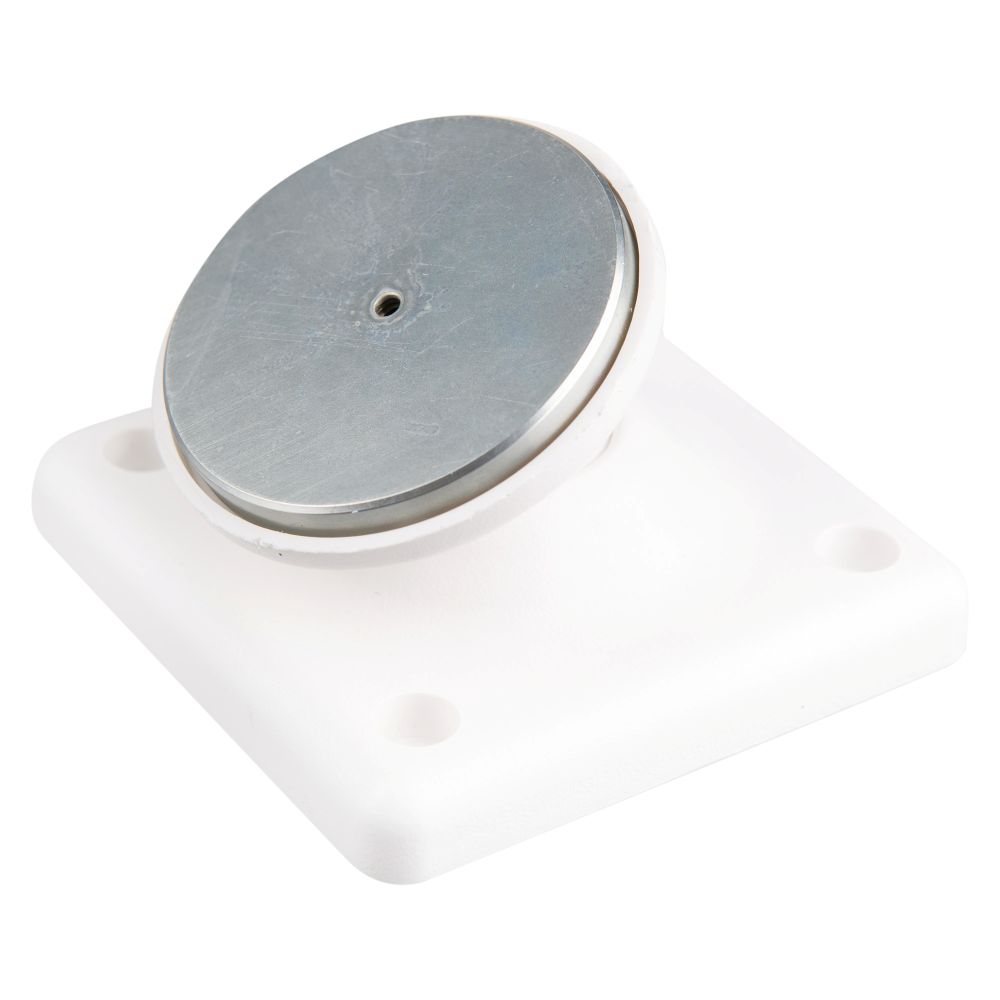

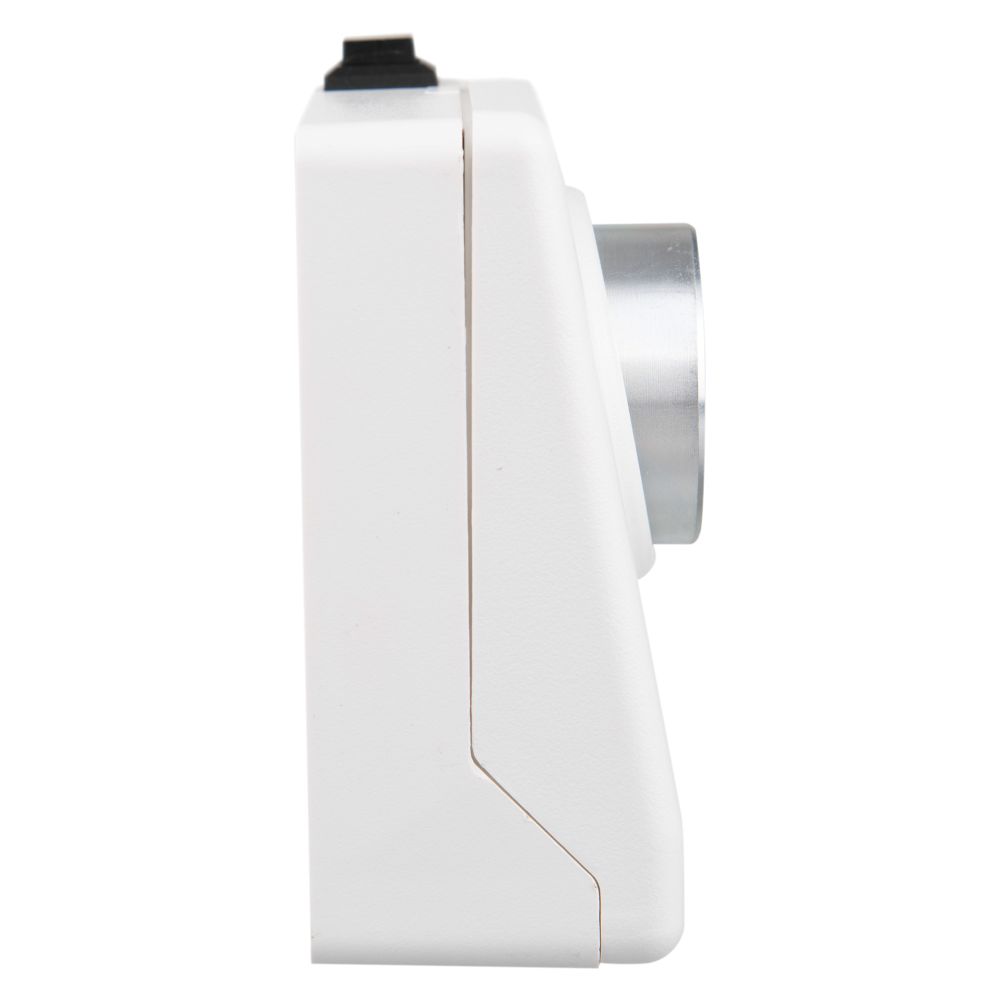

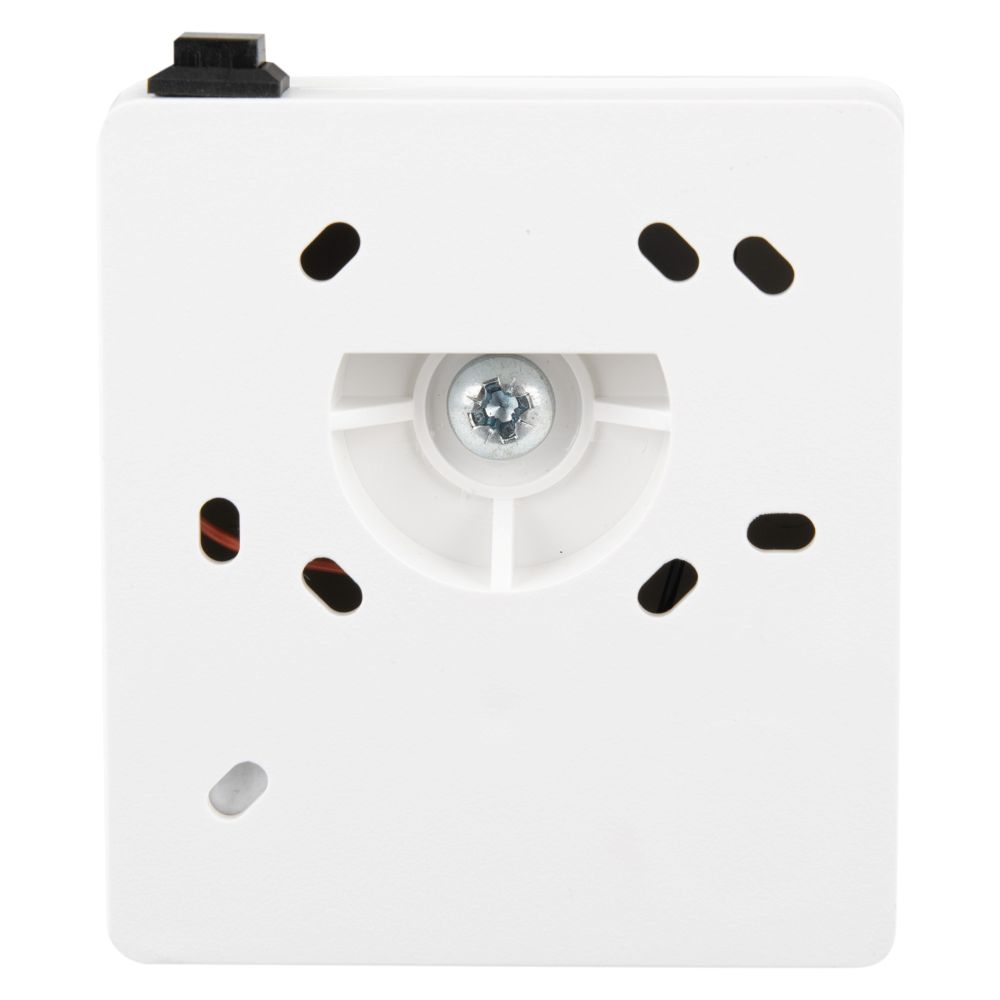

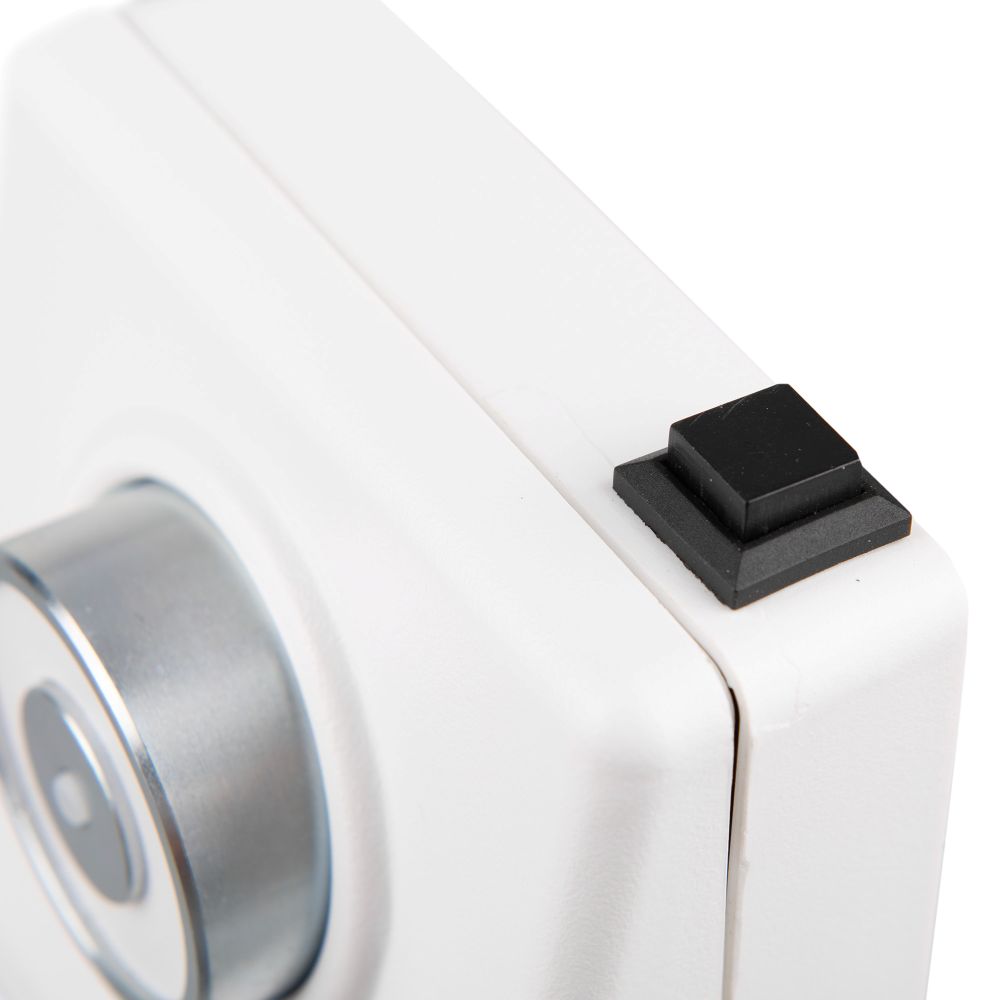

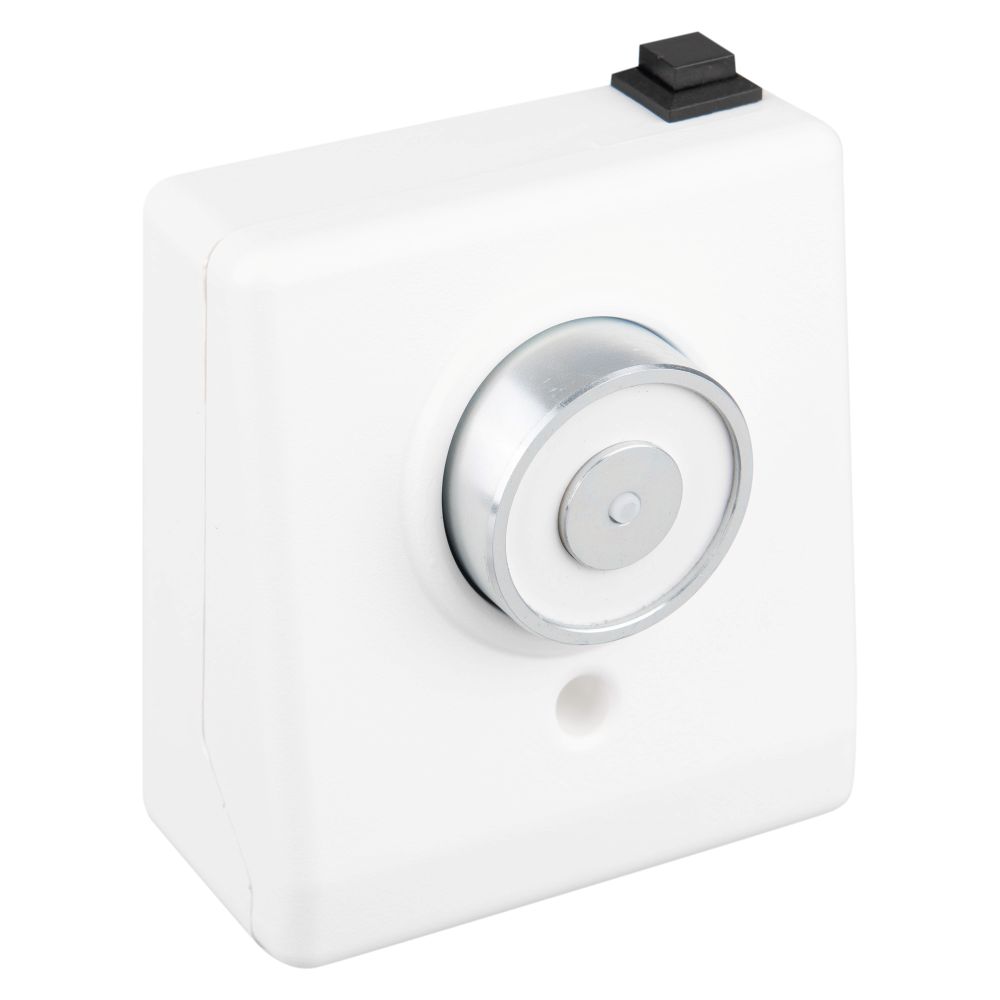

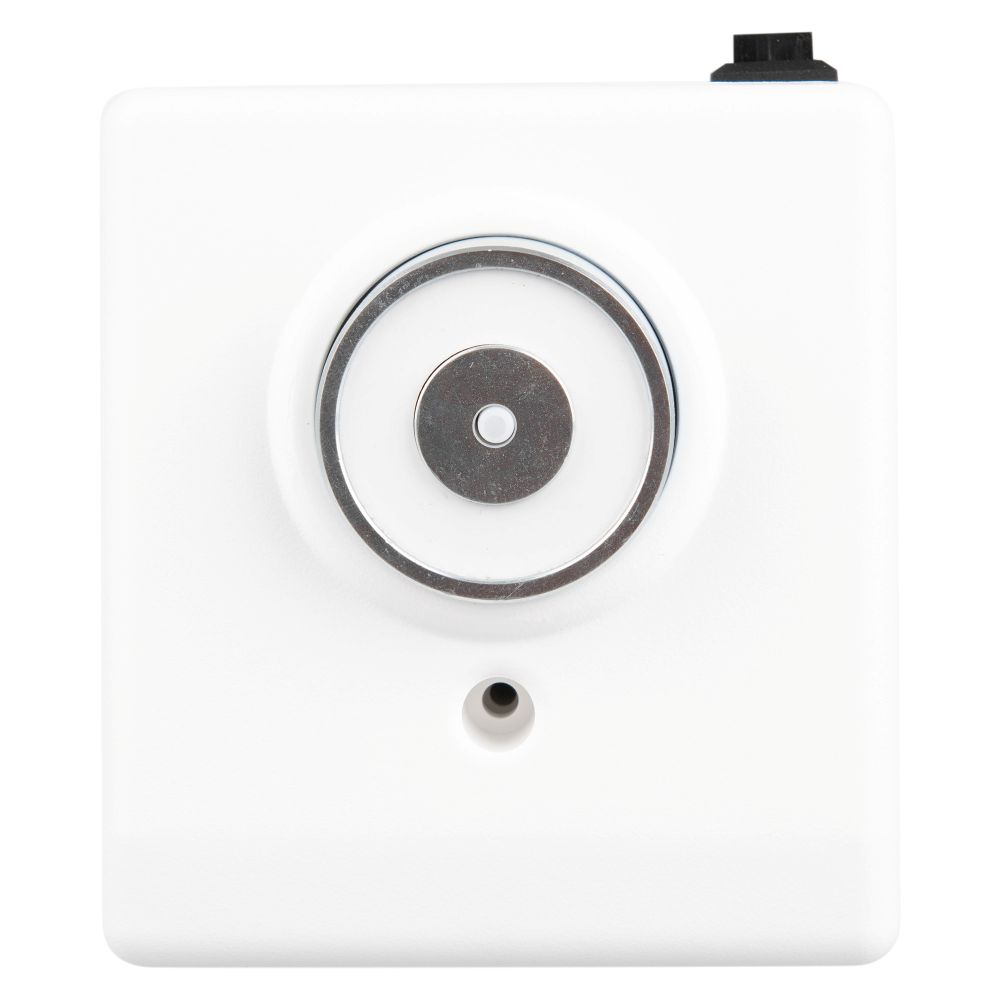

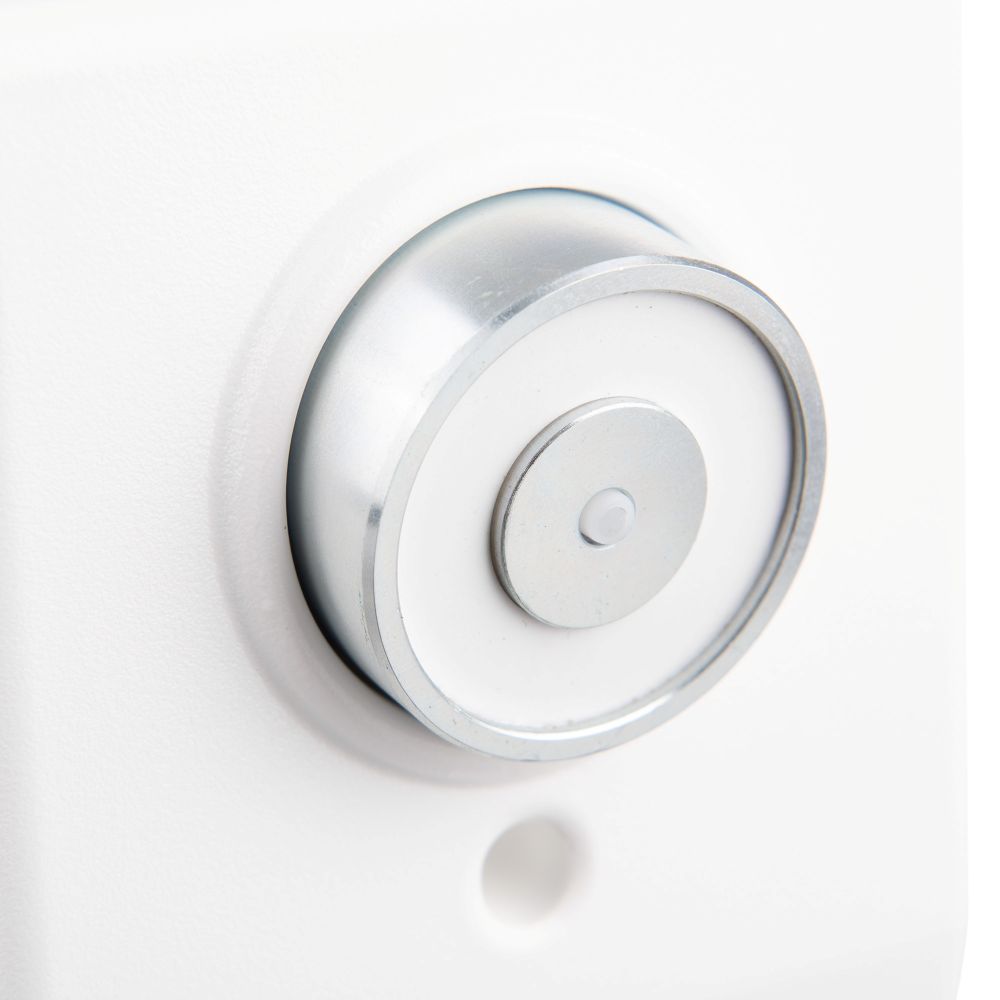

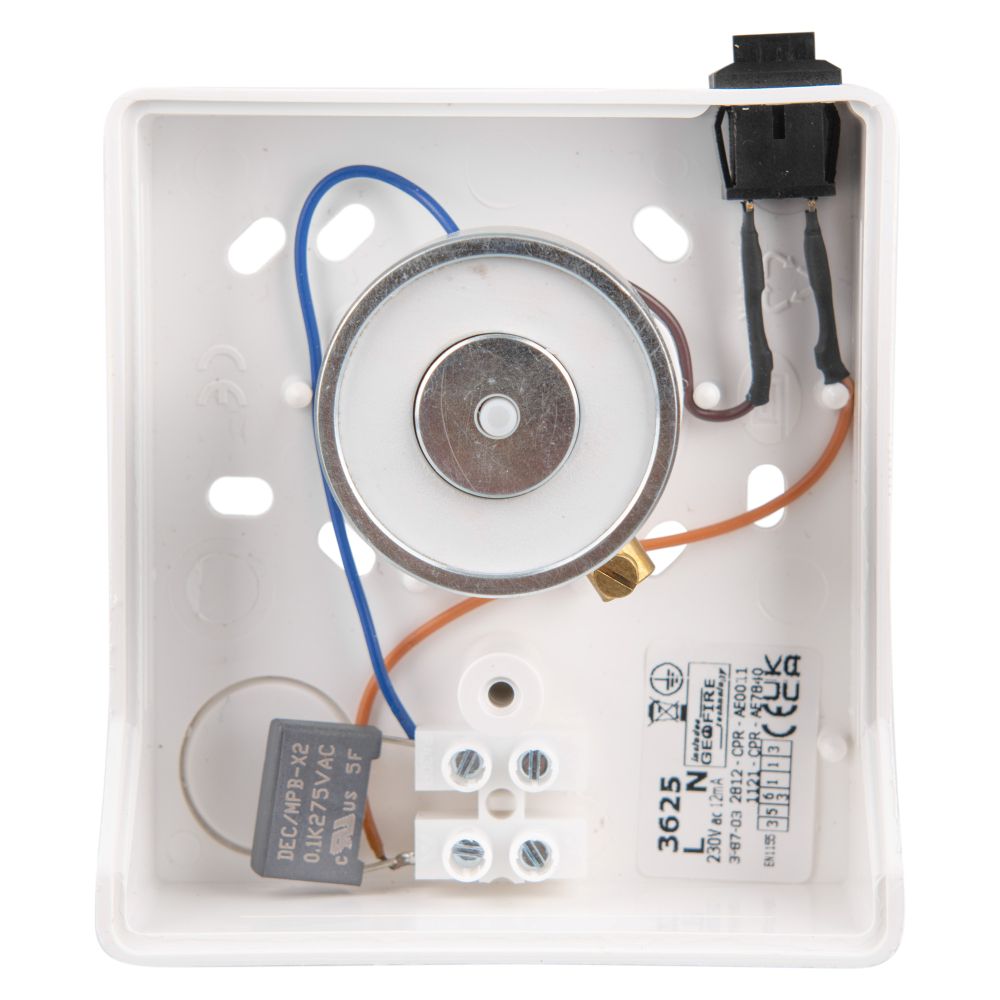

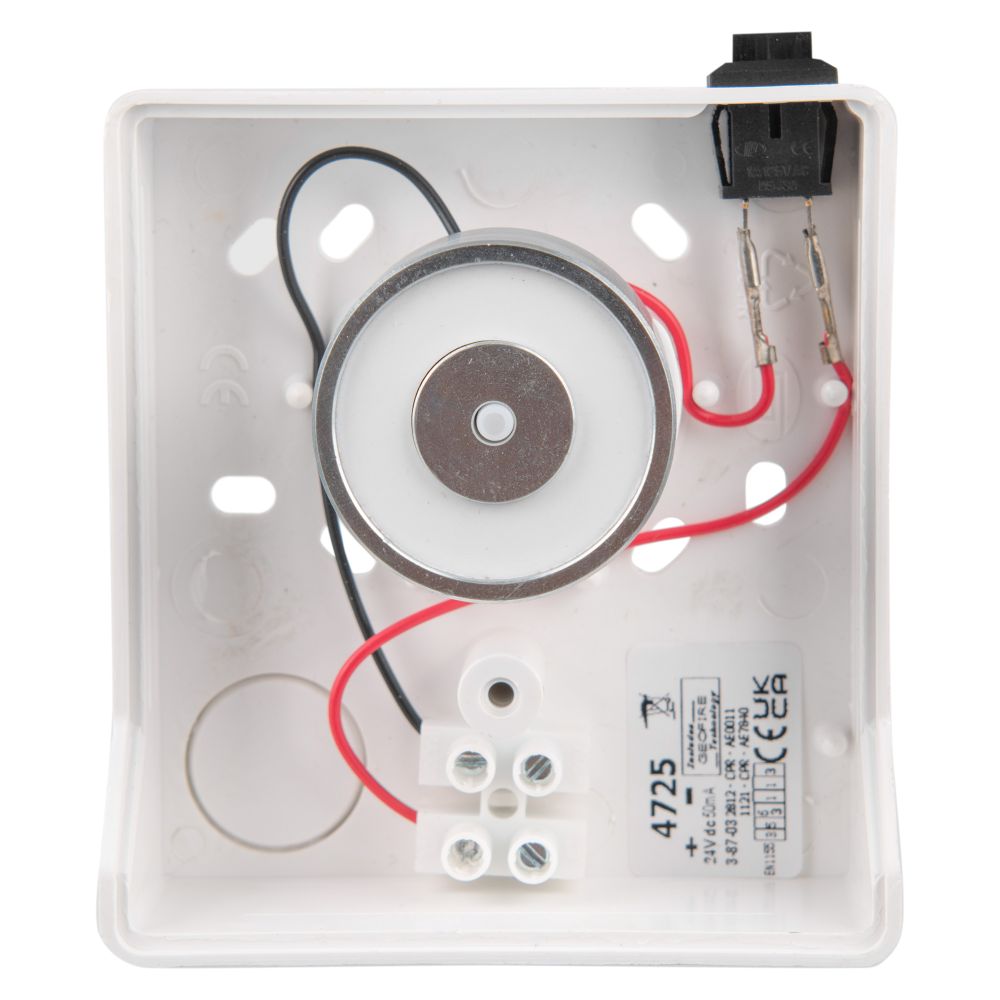

Image of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing main unit and magnet plate on a white background Front view of the Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing its square shape and circular magnetic part Inside view of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing wiring and mounting box White Gf3870351 Doormouse Wall Mounted Door Retainer 24V 200N shown at an angled view Close-up of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N Magnet showing white base and round metal magnet Side view of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing the white casing and metal component White Gf3870351 Doormouse Wall Mounted Door Retainer 24V 200N showing back with screw and mounting holes visible Closeup of Gf3870351 Doormouse Wall Mounted Door Retainer White 24V 200N showing round magnet and white plastic casing Close up of the black button on the white Gf3870351 Doormouse Wall Mounted Door Retainer 24V 200N White Gf3870352 Doormouse Wall Mounted Door Retainer showing main unit and separate magnetic base Front view of Gf3870352 Doormouse Wall Mounted Door Retainer in white showing circular magnet and mounting hole Gf3870352 Doormouse Wall Mounted Door Retainer White 230V 200N Internal showing internal wiring and components inside white plastic casing Image of the Gf3870352 Doormouse Wall Mounted Door Retainer White 230V 200N Angled showing a white rectangular base with a metallic circular component and a small black switch on top White Gf3870352 Doormouse wall mounted door retainer with a round metal magnet plate and four mounting holes Side view of Gf3870352 Doormouse Wall Mounted Door Retainer in white with silver metal part and black switch on top White Gf3870352 Doormouse Wall Mounted Door Retainer 230V 200N showing back mounting plate and screw hole details Closeup of Gf3870352 Doormouse Wall Mounted Door Retainer in white showing round metal and plastic parts on white background Close-up of the black button on the white Gf3870352 Doormouse Wall Mounted Door Retainer White 230V 200N Button
4.3 out of 5 stars

20+ In Stock

For dispatch today order within
5 Hrs 21 Mins

£29.63 inc VAT

£24.69 ex VAT

Standard Delivery

Will usually be delivered in 2-3 working days

£4.20 inc VAT

Next Day Delivery

Will usually be delivered the next working day

£7.00 inc VAT

Keep fire doors open safely during normal operation while ensuring they close automatically in an emergency with the Doormouse Wall-Mounted Fire Door Holder. This hard-wired electromagnetic retainer provides convenient access, improved ventilation, and easier movement through busy areas, while maintaining full fire safety compliance.

When connected to a fire alarm system, the holder automatically releases the door when the alarm is activated or if power is lost, allowing the fire door to close and help prevent the spread of fire and smoke.

  • Ideal for offices, hospitals, care homes, schools, and other high-traffic environments
  • Keeps fire doors securely open during normal operation, improving accessibility and ease of movement through buildings
  • Direct connection to fire alarm panels for reliable emergency operation and system integration
  • Automatic release during emergencies as it is connected to a fire alarm system
  • Manual release switch allows the door to be released at any time when required
  • Fail-safe operation releases the door automatically in the event of a power failure for enhanced safety
  • Suitable for fire doors up to 120kg, making it ideal for a wide range of compatible doors
  • Wall-mounted, low-profile design provides a discreet appearance and simple installation
  • Available in 24V DC or 230V AC versions to suit different fire alarm and electrical system requirements
  • Zero residual holding force ensures reliable and unhindered door closure once released
  • Durable fire-resistant ABS housing with an IP51 rating
  • CE Marked and certified to BS EN 1155, providing confidence in compliance and performance
  • Supplied complete with adjustable keep plate and fitting instructions for straightforward installation
Customer Reviews

Customer Reviews (19)

4.3 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5

Reviewed by

H H

Published on

17th July 2022

No problems

Applies to option(s): 24V DC

Rating: 5 / 5

Reviewed by

Anonymous

Published on

21st March 2019

Good product and easy to install

Applies to option(s): 24V DC

Rating: 1 / 5

Reviewed by

Anonymous

Published on

25th July 2017

Short circuited and blew fuses

Replacement took 8weeks.

Applies to option(s): 24V DC

Rating: 4 / 5

Reviewed by

Anonymous

Published on

22nd July 2017

Great Service, quality product, will recommend

Applies to option(s): 24V DC

Rating: 5 / 5

Reviewed by

Anonymous

Published on

12th June 2017

right product, right price, speedy delivery

Replacement for an existing broken retainer which fitted easily in its place

Applies to option(s): 24V DC

FAQs

FAQs (4)

Does the Doormouse wall mounted fire door holder type 87 require hard wiring to an alarm or control box?

Yes, the Geofire Doormouse Wall Mounted Electromagnetic Fire Door Holder does require to be hard wired to the control box or fire alarm panel system.

Is the Doormouse unit powered by batteries?

No, the Geofire Doormouse Wall Mounted Electromagnetic Fire Door Holders are designed to be connected and powered by your fire alarm panel. This means that they are not powered by batteries. This is a key safety feature of the device, to ensure that the door releases even the event of power failure.

Can the 230VAC Doormouse door retainer be connected directly to a mains operated smoke alarm or is a panel alarm required?

Yes, the Geofire Doormouse Wall Mounted Fire Door Holder can be directly wired to a mains powered alarm. In order to so, the device can be linked to the Ei3000 series of alarms with the Ei128R relay base unit and this will make the connection from the alarm series to the holder.

What door weight are they Dormouse holders suitable for? What position should they be mounted?
The Doormouse wall mounted fire door holders are suitable for doors weighing 60-120kg and they should be mounted 650mm or more from the hinge.
Technical Data

Technical Data

Product Code GF3870351
Brand Geofire
Manufacturer's Part Number 3-87-0370
Activation Fire Alarm Signal
Approvals & Markings CE Marked
Colour White
Compliance BS 7273-4 - Category A
BS EN 1155
Connection Wired
Equipment Type Door Retainer
Fixing Options Screws (not included)
Hold Open Angle Fully Open Position Only
Holding Force 200N
Installation Position Top Of Door
IP Rating IP51
Material Plastic
Power Type 24V DC
Dimensions (Unit)
  • Height: 97mm
  • Width: 87mm
  • Depth: 46mm
Weight 360g
