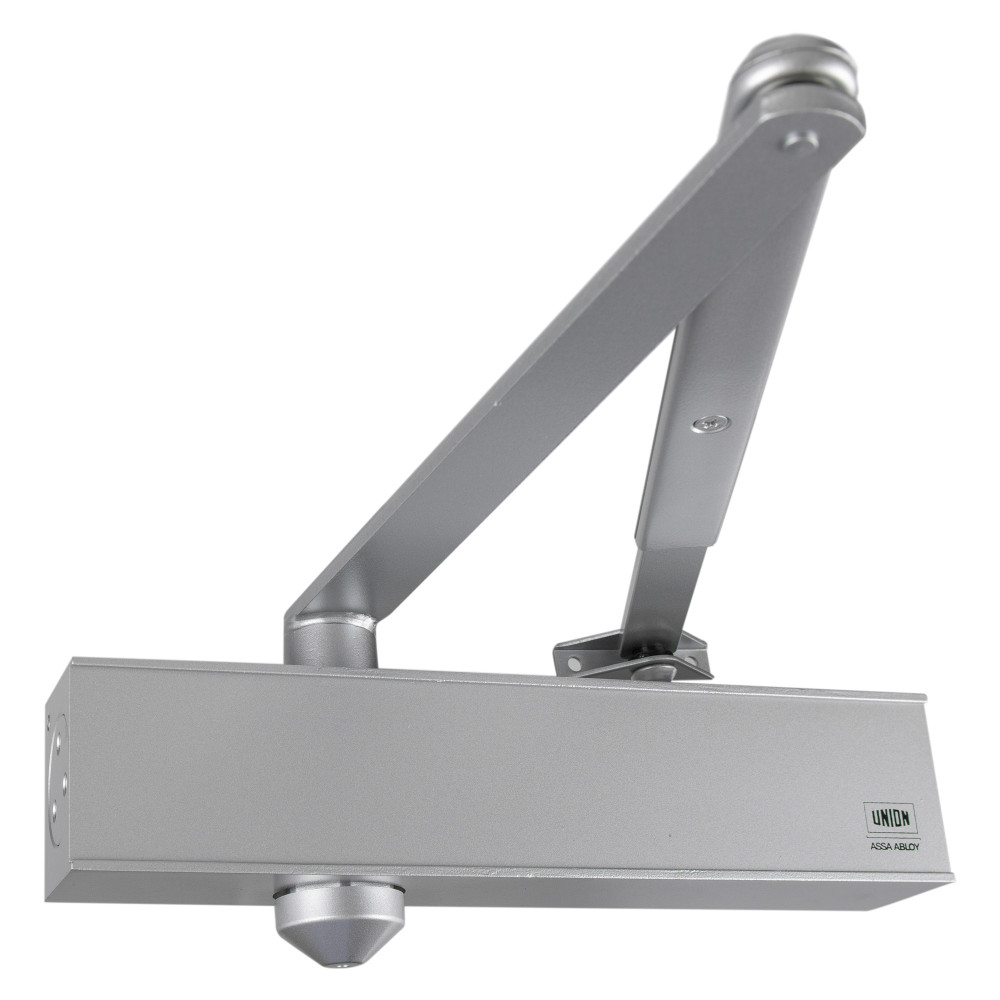

Union CE26V Overhead Door Closer - Power Size EN 2 - 6

The Union CE26V rack and pinion overhead door closer features an adjustable power size (EN 2-6) and is suitable for installing on timber fire resistant doors up to FD120. The adjustable EN power size makes it ideal for larger and heavier doors, and for installations in new projects or refit applications. The versatile fitting options (Fig 1, Fig 61, Fig 66) give installers more flexibility for installation, as it comes supplied with fitting templates and universal fixings for push and pull side mounting. This closer also features adjustable latching action and closing speed.

• Suitable for:
  • Left and right-handed opening doors (non-handed)
  • Single action internal doors
  • Installation in Fig 1, 61 and 66 configurations
  • Doors up to 1400mm wide and weighing up to 120kg – EN size 2 - 6
• 10 Year Warranty
• Certifire approved for use on 120 minute timber fire doors – CF410 certificate
• CE marked and tested to EN 1154 in all 3 configurations

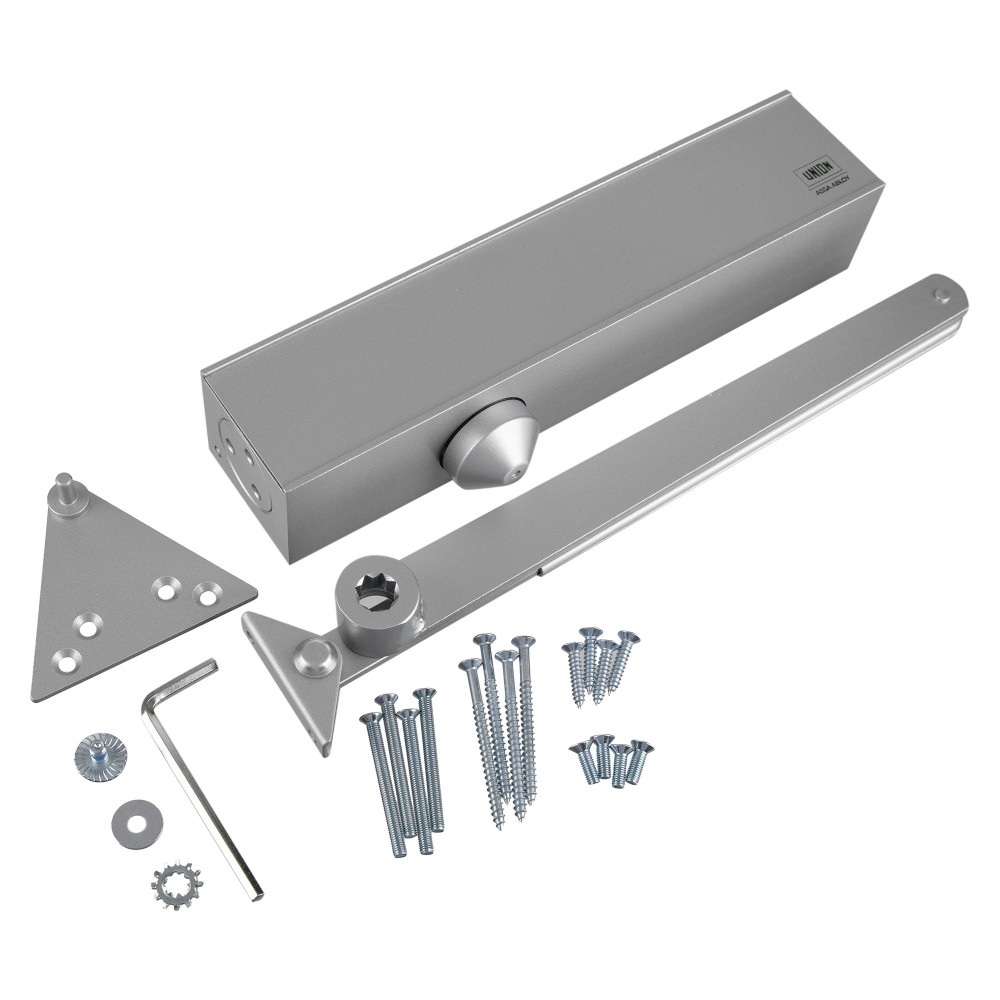

• Supplied with fixings for all standard fitting applications
• Easy-to-follow pictorial instructions with fitting templates

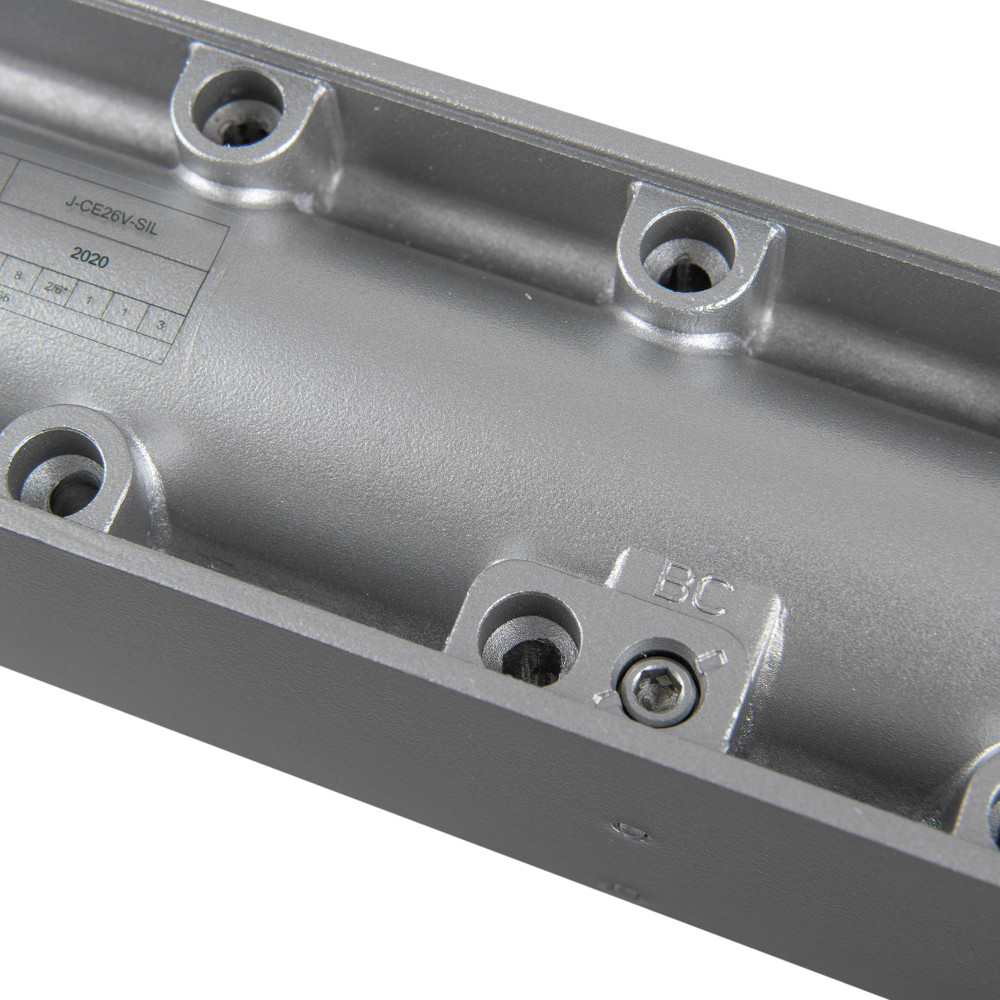

• Adjustable features to suit any premises
  • Closing speed controls how fast the door closes
  • Latching action governs the speed the door closes during the last 15° of the closing cycle
  • Back check ensures that no damage is caused by the door when it is opened rapidly
• Available in silver finish as standard
• Full classification 3 | 8 | 2-6 | 1 | 1 | 3
