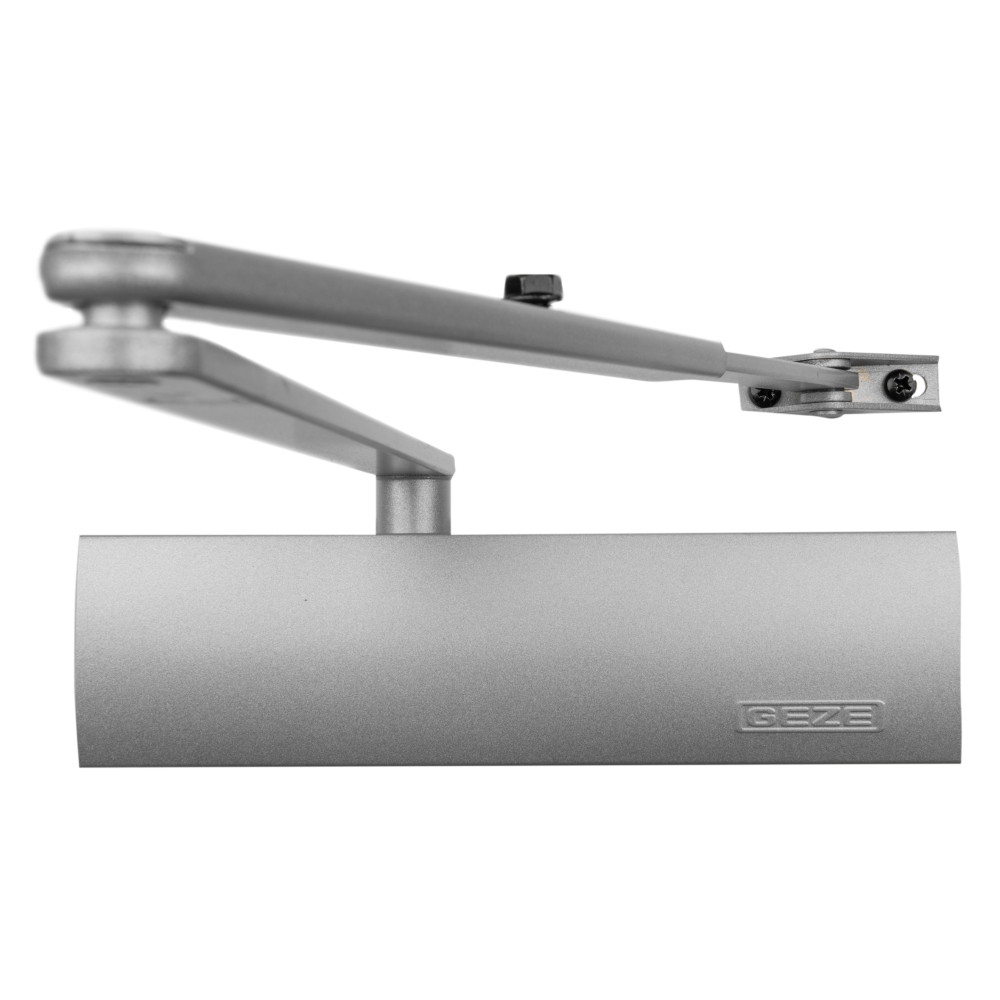

GEZE TS2000 NV Overhead Door Closer - Power Size EN 2-4
The GEZE TS2000 NV overhead door closer has a 120 minute fire rating and 10 year manufacturers warranty. With an adjustable power size of EN 2-4, the closer is suitable for use on doors with a maximum leaf size of 1100mm, and its adjustable latching action (TS2000 NV BC version only) allows the closing speed during the last 15° to be tweaked for additional resistance. Its direct fitting template eliminates the need for a backing plate and comes supplied with universal fixing for push and pull side mounting. The GEZE TS2000 NV is suitable for internal applications.
- Suitable for:
- Use on internal single action doors
- Doors up to 1100mm wide and weighing up to 80kg –
- Installation in

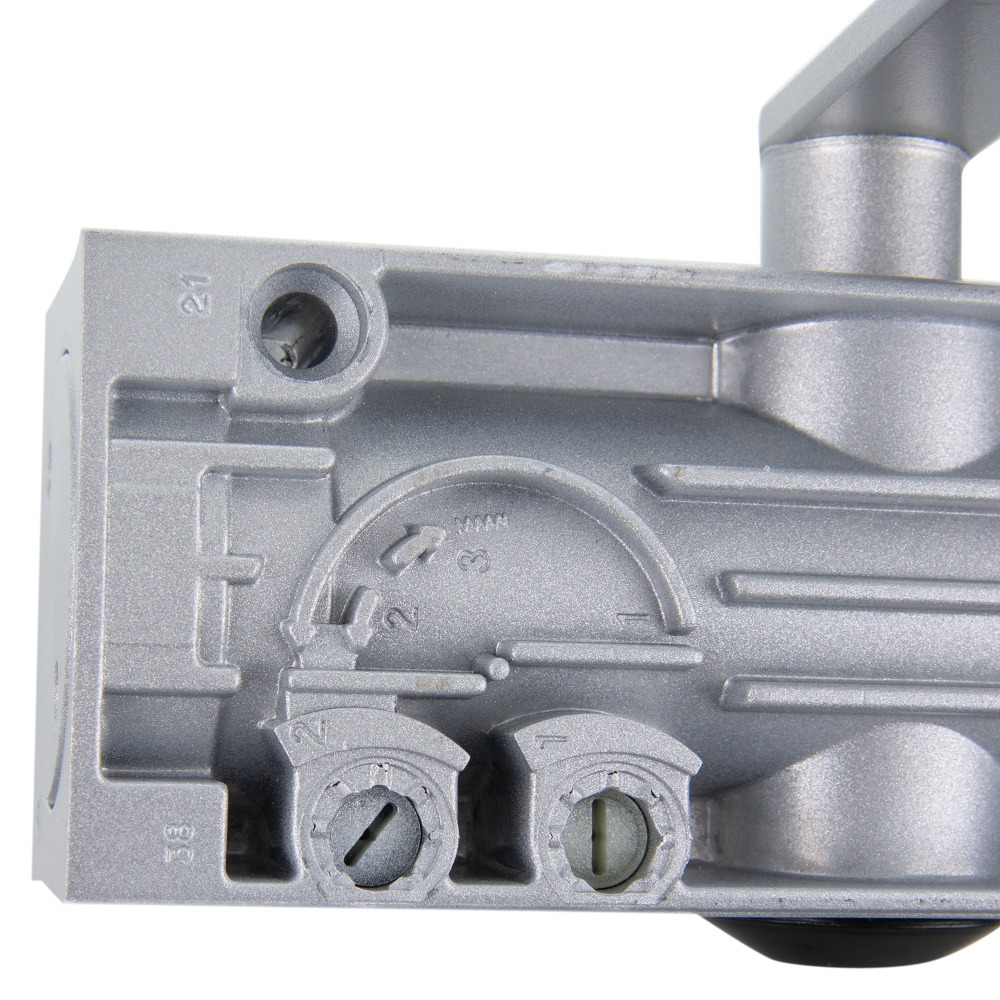

- Closing force adjustable via a control on the end of the closer body

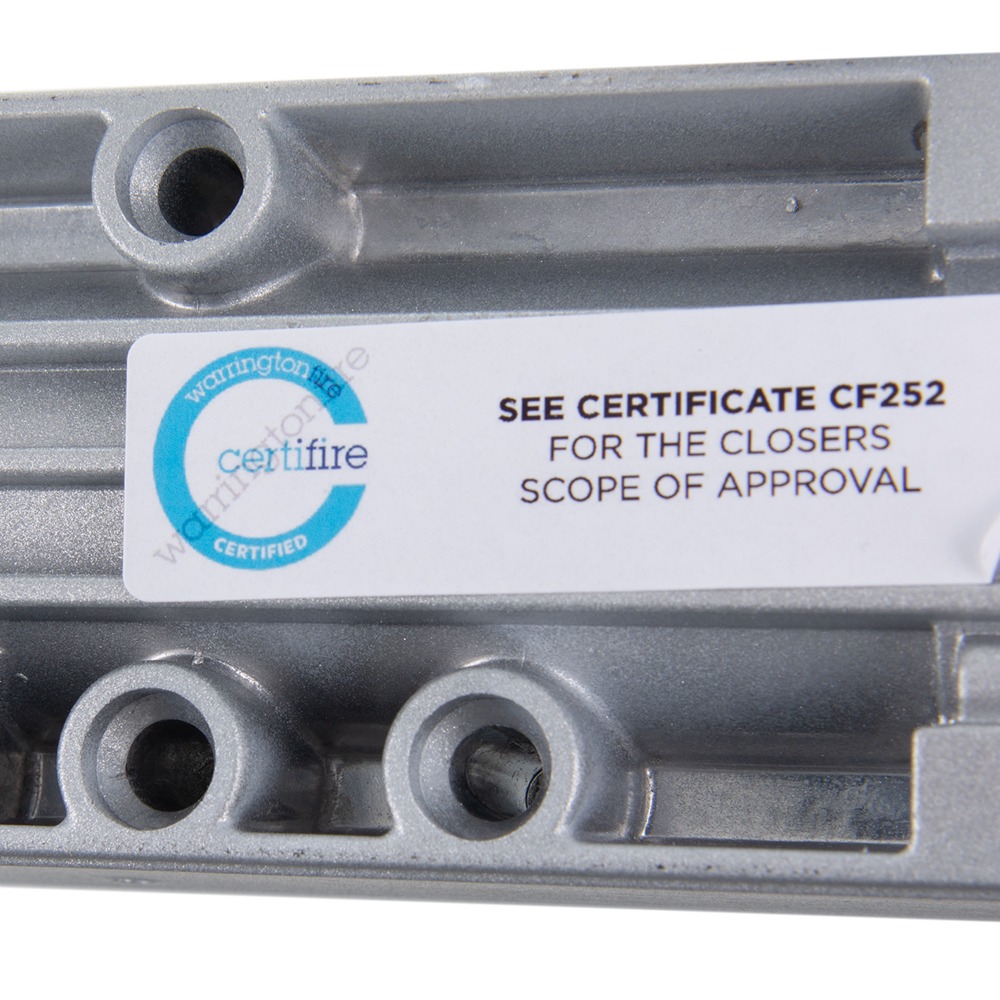

- Certifire approved for use on FD120 fire rated doors – CF 252 certificate
- Available in two versions:
- TS2000 NV – Standard overhead door closer

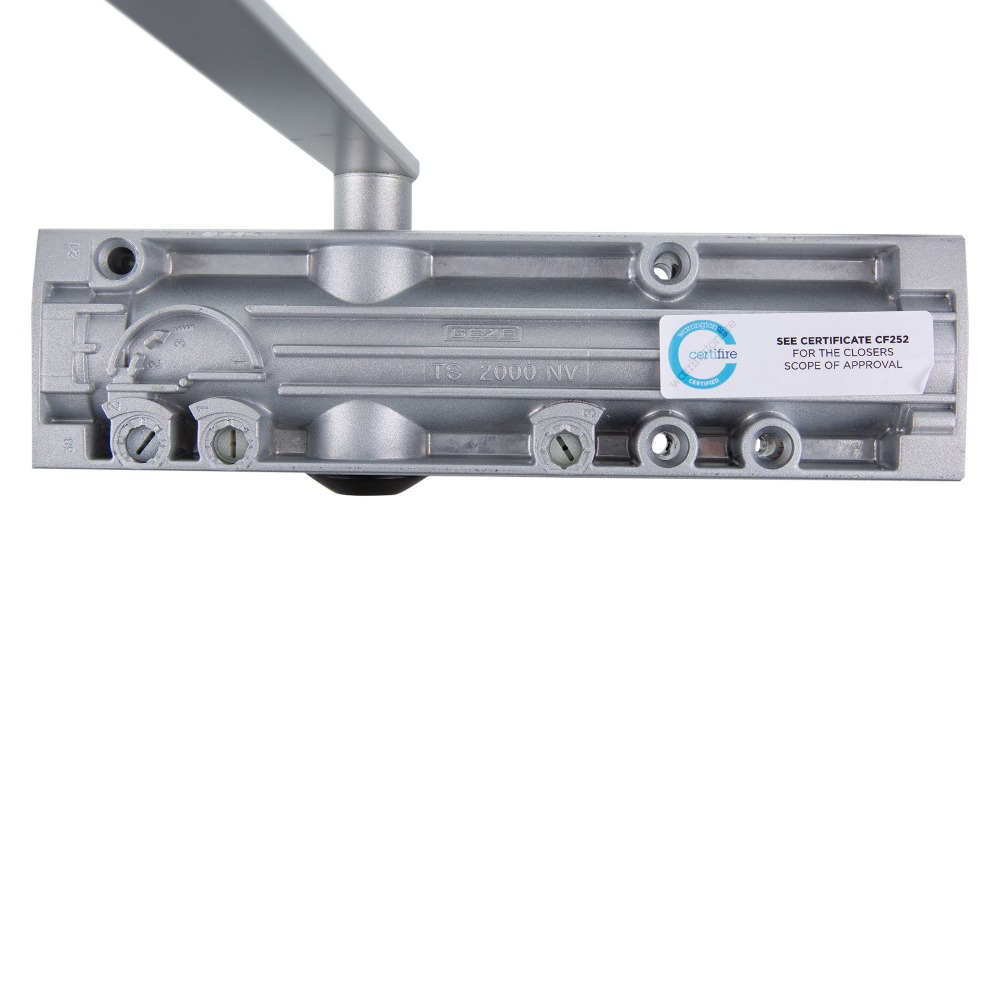

- TS2000 NV BC – Overhead door closer with adjustable back check
- Adjustable closing speed controls how fast the door closes
- Adjustable latching action controls the final part of the closing arc, to ensure the door latches properly
- Direct fitting template – quick and easy installation, eliminating the need for a backing plate
- Universal fittings for mounting to the push and pull side of the door
- CE Marked to EN 1154
- Made in Germany
- 12 Month Warranty
- Full classification: 4 | 8 | 2-4 | 1 | 1 | 4
Customer Reviews (12)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
H F
Published on
29th July 2022
Reviewed by
R C
Published on
21st June 2022
As above
As above
Reviewed by
G C
Published on
8th February 2022
Nice and easy to install, good quality product
Reviewed by
J H
Published on
15th June 2021
Easy to install and performs very well
Reviewed by
S B
Published on
15th May 2021
Easy to fit
Technical Data
| Product Code | GZTS2000NVBC |
|---|---|
| Brand | Geze |
| Back Check | Adjustable |
| Closing Speed | Adjustable |
| Colour | Silver |
| Approvals & Markings | CE Marked |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF252 | |
| Door Type | Single Door |
| EN Classification | 4 | 8 | 2-4 | 1 | 1 | 4 |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 66 | |
| Latching Action | Adjustable |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Material | Metal |
| Power Size | EN 2 - 4 |
| Warranty | 1 Year |
| Dimensions (Unit) |
|
| Weight | 2.90kg |
