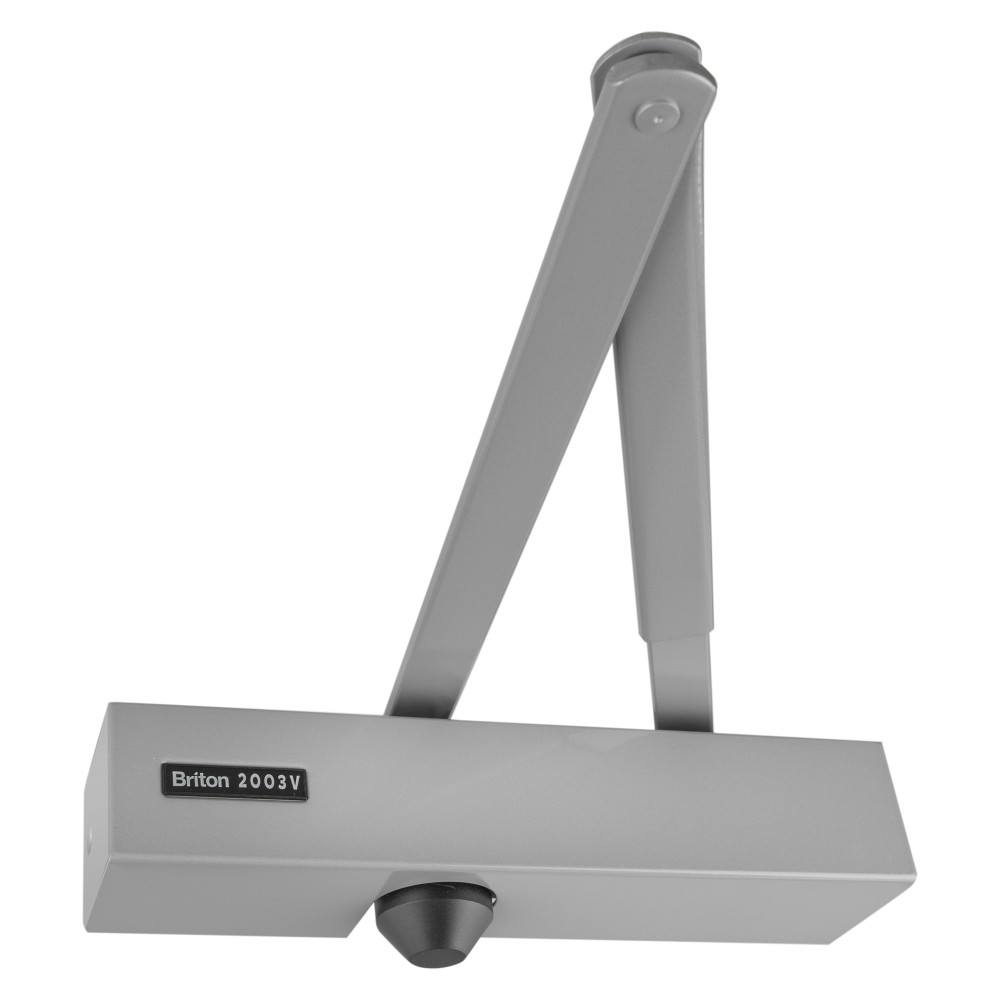

Briton 2003V Overhead Door Closer - Power Size EN 1 - 4

The Briton 2003V is a variable powered door closer suitable for EN 1-4 door sizes. The adjustable power of the 2003V enables it to achieve the low opening forces required by the Approved Document M of The Building Regulations and guidance of BS8300 in relation to the Disability Discrimination Act (DDA). The Briton 2003V comes with the same fixings and footprint as the standard 2003 overhead door closer, but benefits from extra features such as back check and adjustable power size.

• Suitable for:
  • Left and right handed opening doors
  • Doors up to 1100mm wide and weighing up to 80kg – EN size 1 - 4
    • Fig.1 Door Mount: EN size 2-4
    • Fig.61 Transom Mount: EN size 2-4
    • Fig.66 Parallel Arm Mount: EN size 1-3
  • Installations in Fig 1, 61 and 66 configurations
• Tested to all requirements of EN 1154
• CE and UKCA marked
• Certifire approved for use on FD120 (Timber) and FD240 (Steel) fire rated doors - CF 111 Certificate
• BWF Certified
• Designed to help satisfy the DDA requirements of BS8300

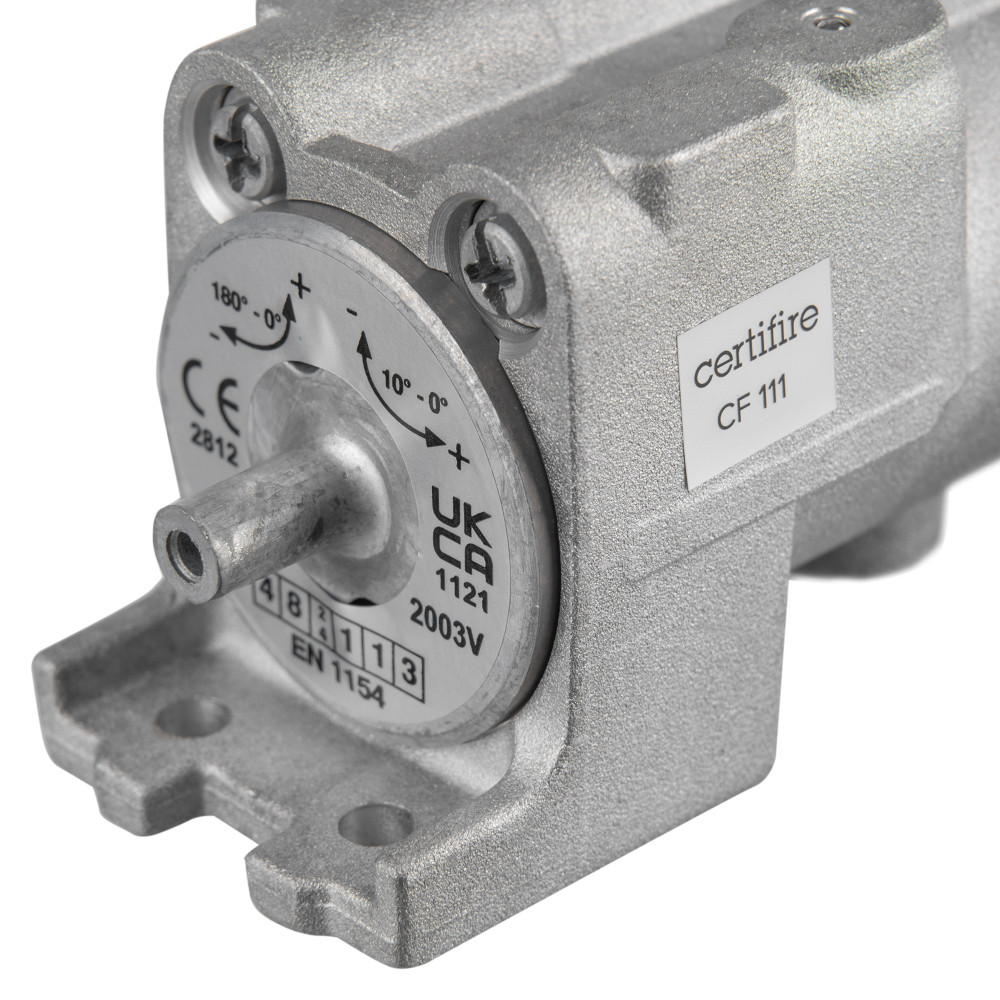

• Alter the door closer to suit your premises with these adjustable features

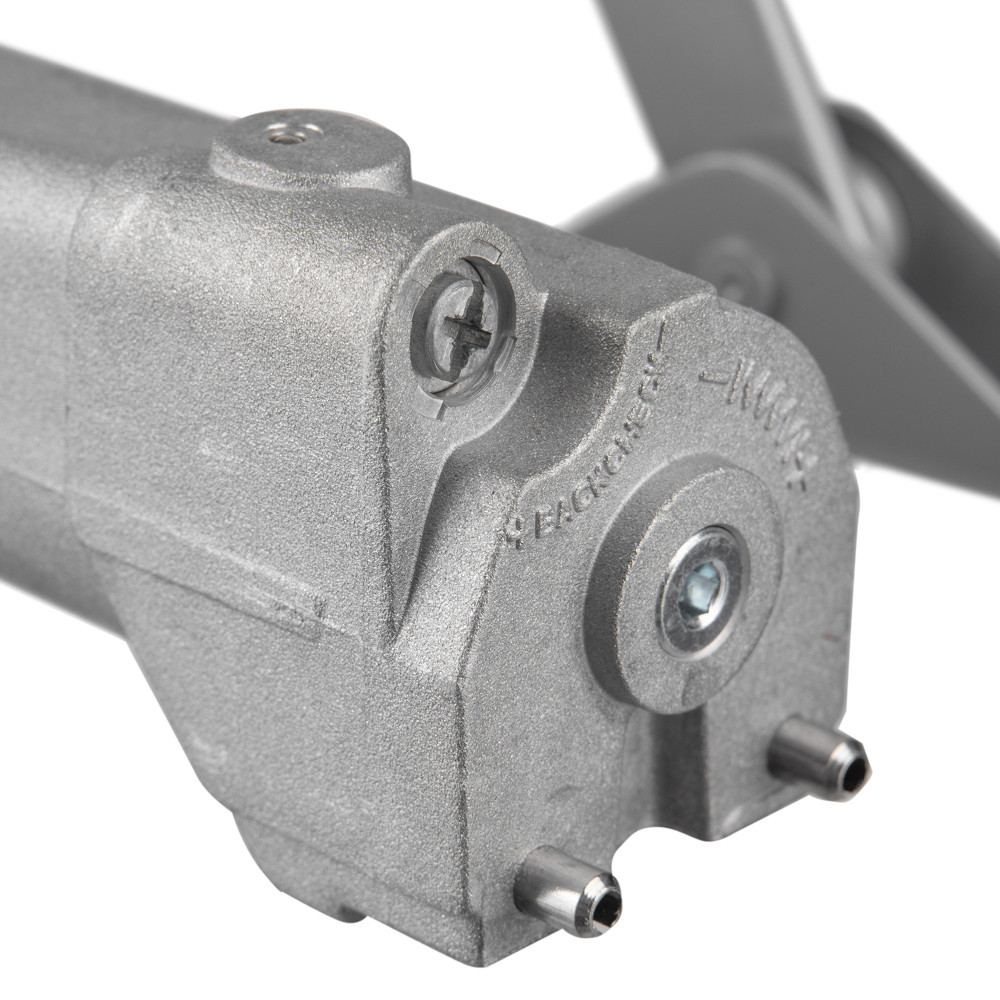

  • Closing speed controls how quickly the door closes between maximum opening angle and the last 15°
  • Latching action governs the speed of the final 15° of the cycle
  • Back check ensures that no damage is caused by the door when it is opened rapidly
• 10 Year Warranty

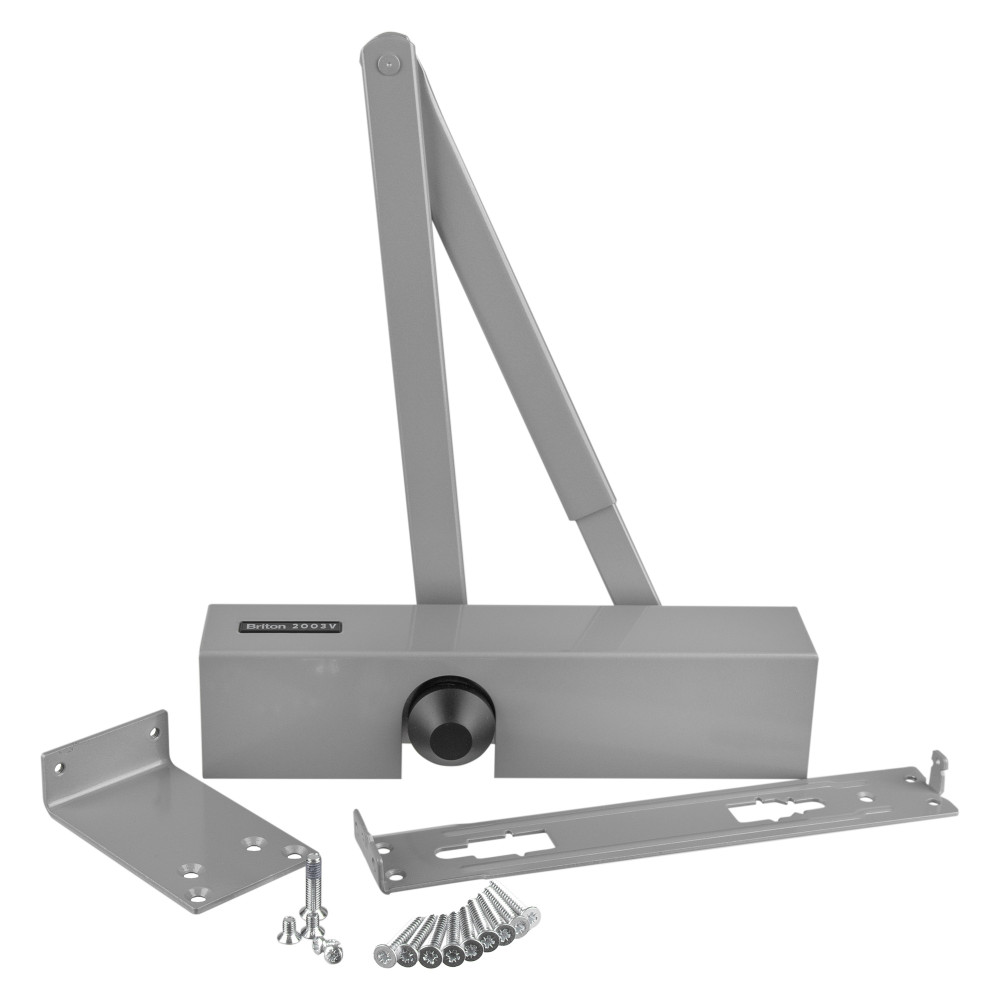

• All standard application fixings included
• Available in silver as standard
• Full classifications:
  • Fig.1 Door Mount: 4 | 8 | 2-4 | 1 | 1 | 3
  • Fig.61 Transom & Fig.66 Parallel: 3 | 8 | 2-4 | 1 | 1 | 3
