GEZE TS1000C Overhead Door Closer - Power Size EN 2 - 3

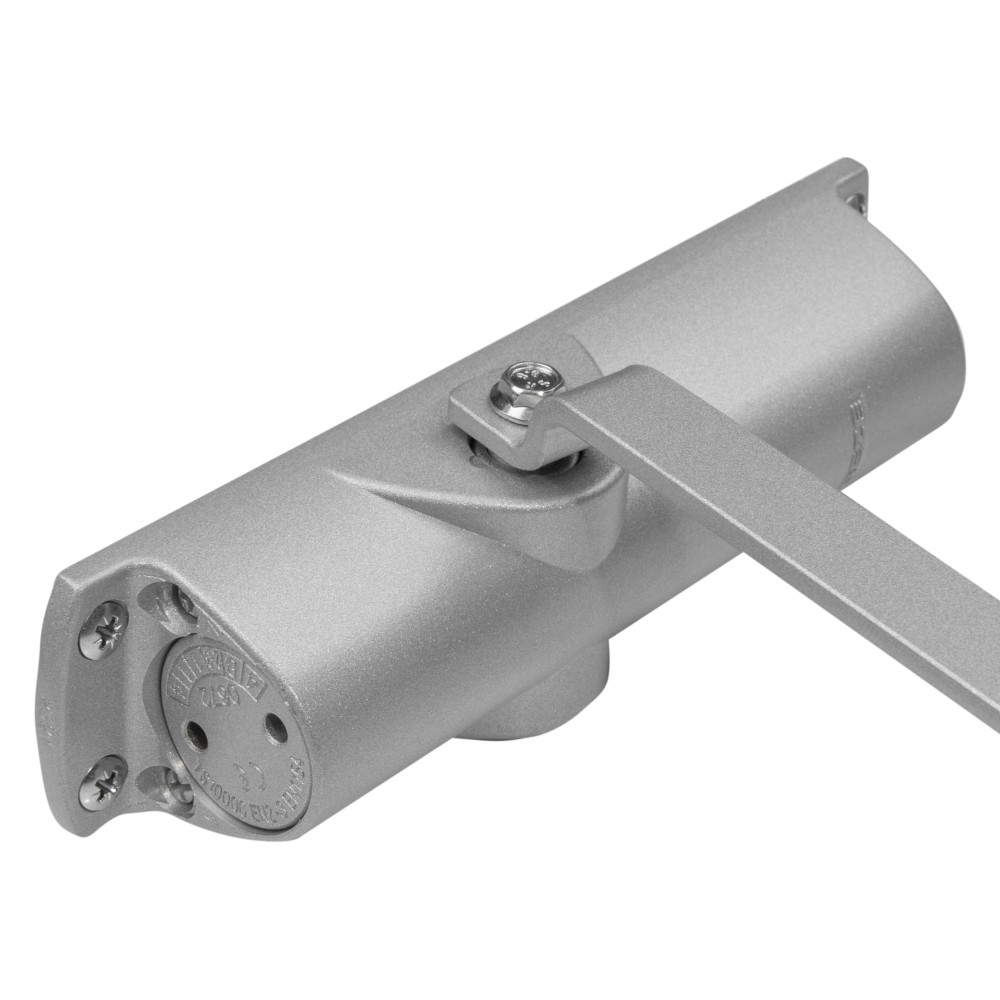

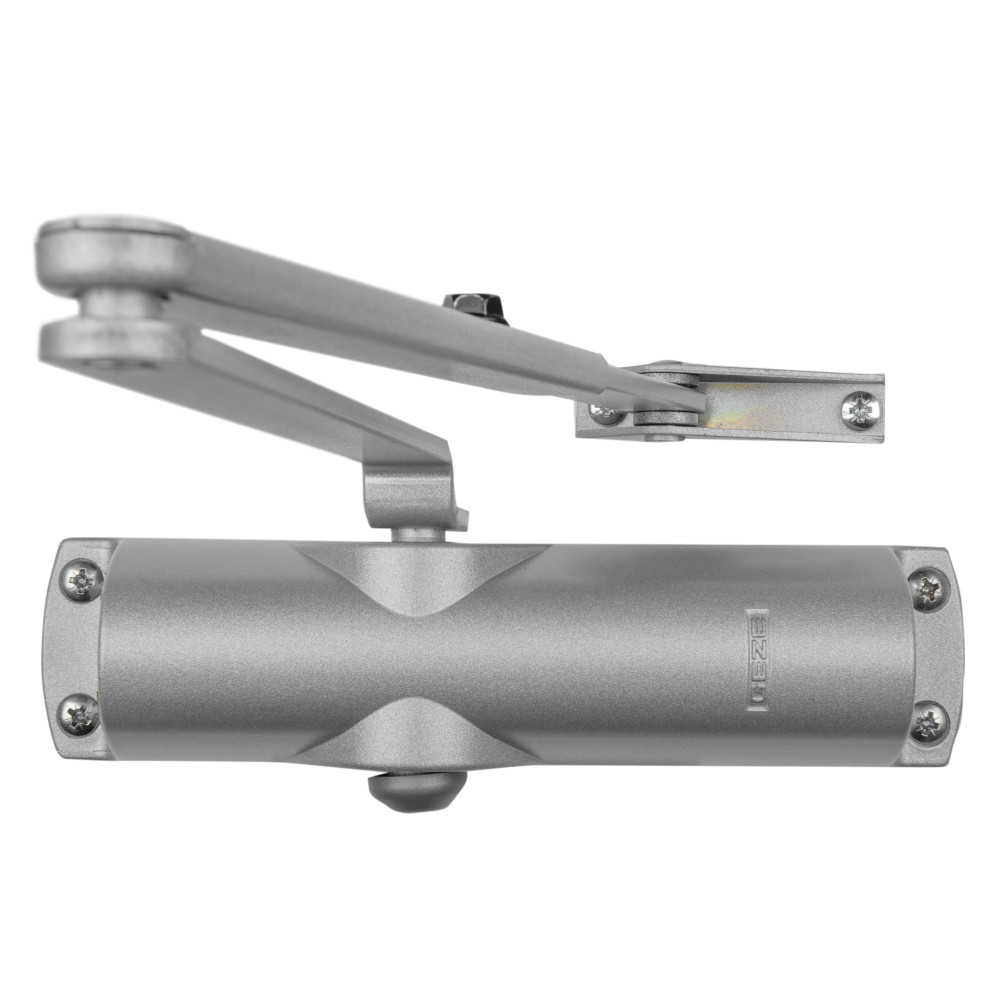

The GEZE TS1000C is an overhead link arm door closer suitable for internal applications on door leafs up to 950mm wide. The TS1000C has been Certifire approved for installation in standard (hinge side) or transom (opposite hinge) configurations when fitted as EN power size 2 or 3. Supplied with a silver finish and featuring both adjustable closing speed and adjustable latching action as standard.
- Suitable for:
- Internal single action doors
- Installation in
- Doors up to 950mm wide and weighing up to 60kg –
- Certifire approved for FD120 fire rated doors - CF144 certificate
- CE marked to EN 1154
- BWF Certified
- Adjustable features to suit any premises
- Closing speed controls how fast the door closes
- Latching action governs the speed the door closes during the last 15° of the closing cycle
- Direct fitting template - quick and easy installation, eliminating the need for a backing plate
- Supplied with universal fixings for push and pull side mounting
- Manufactured in Germany
- 12 Month Warranty
- Full classification: 4 | 8 | 2-3 | 1 | 1 | 4
Customer Reviews (2)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
J B
Published on
11th June 2022
Reviewed by
Anonymous
Published on
27th December 2010
Due to my own lack of knowledge about the product I phoned for help and found the staff very friendly, very knowledgeable and I learned exactly what i needed to know before placing my order on-line and I was staggered to receive it the next despite the distance, Christmas period and weather conditions that had delayed many other purchases
Technical Data
| Product Code | GZTS1000C |
|---|---|
| Brand | Geze |
| Closing Speed | Adjustable |
| Compliance | Certifire - CF144 |
| BS EN 1154: 1997 | |
| BWF Certified | |
| Approvals & Markings | CE Marked |
| EN Classification | 4 | 8 | 2-3 | 1 | 1 | 4 |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Width | 950mm |
| Maximum Door Weight | 60kg |
| Power Size | EN 2 - 3 |
| Warranty | 1 Year |
| Dimensions (Unit) |
|
| Weight | 1.70kg |
