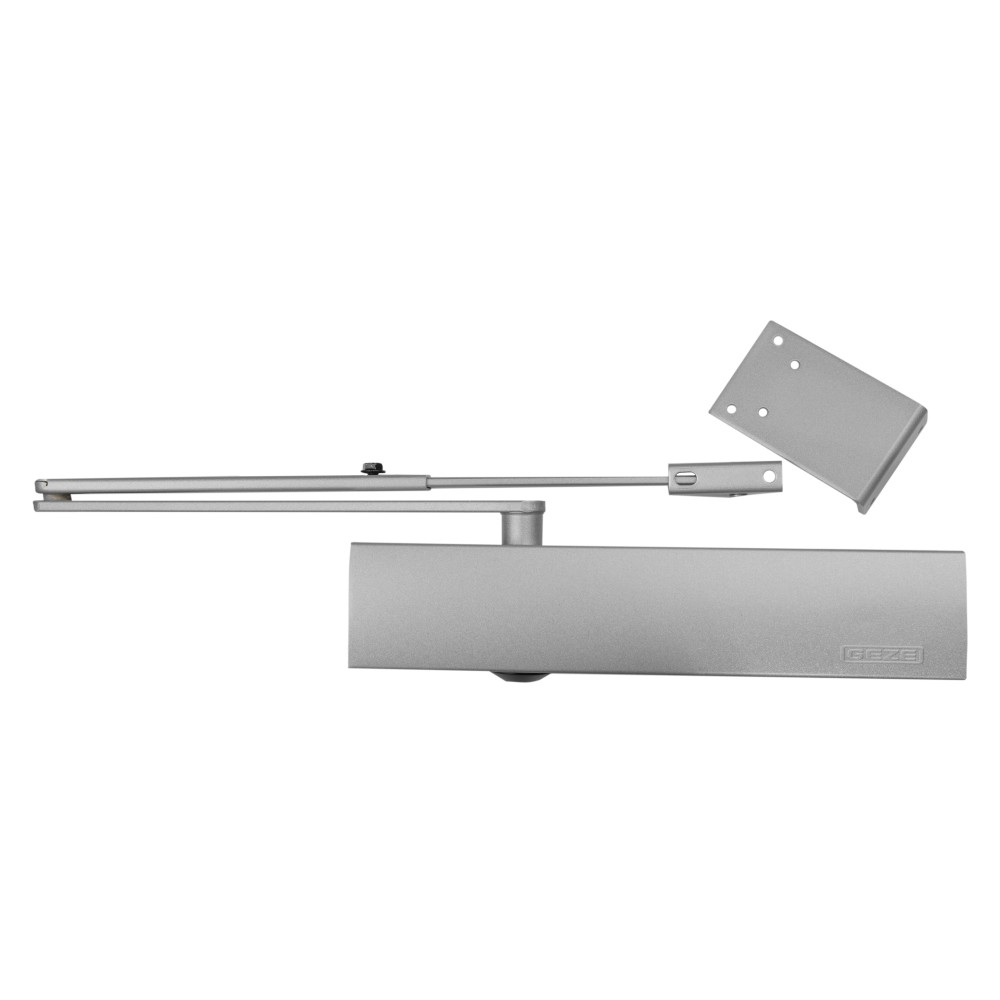

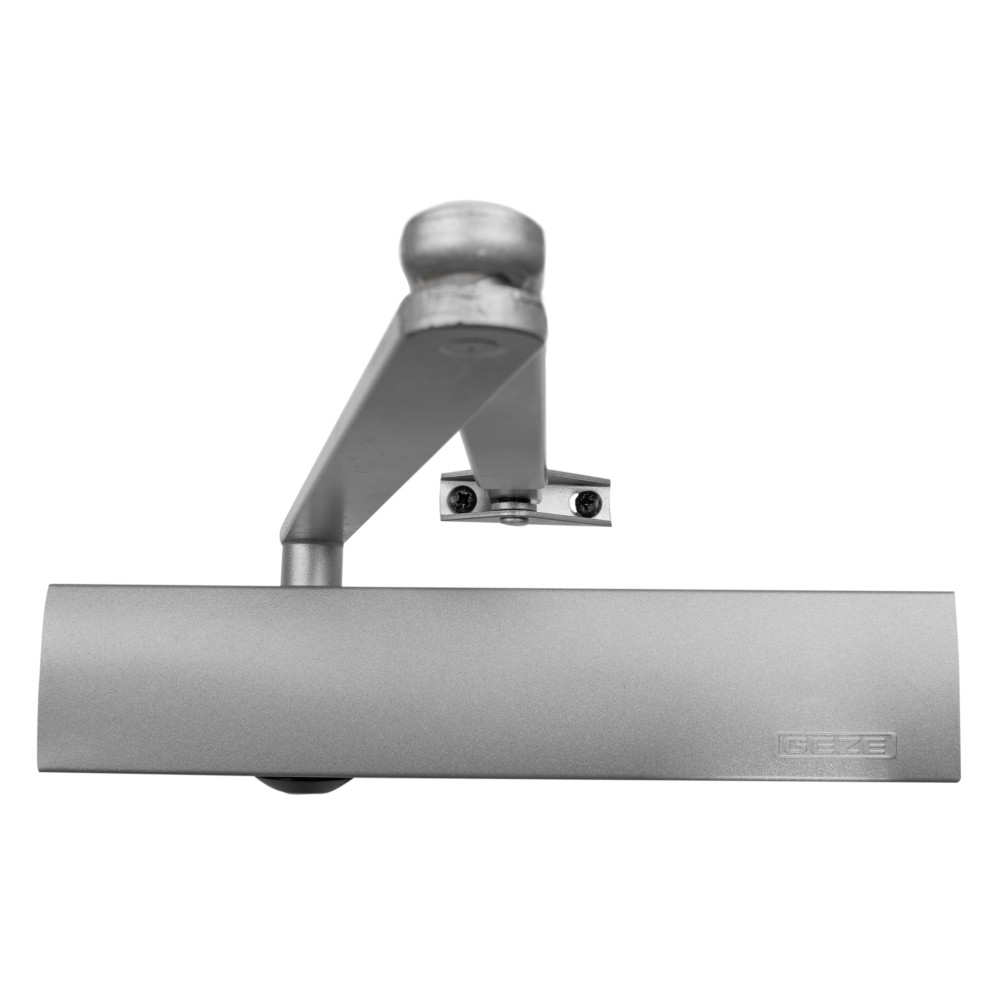

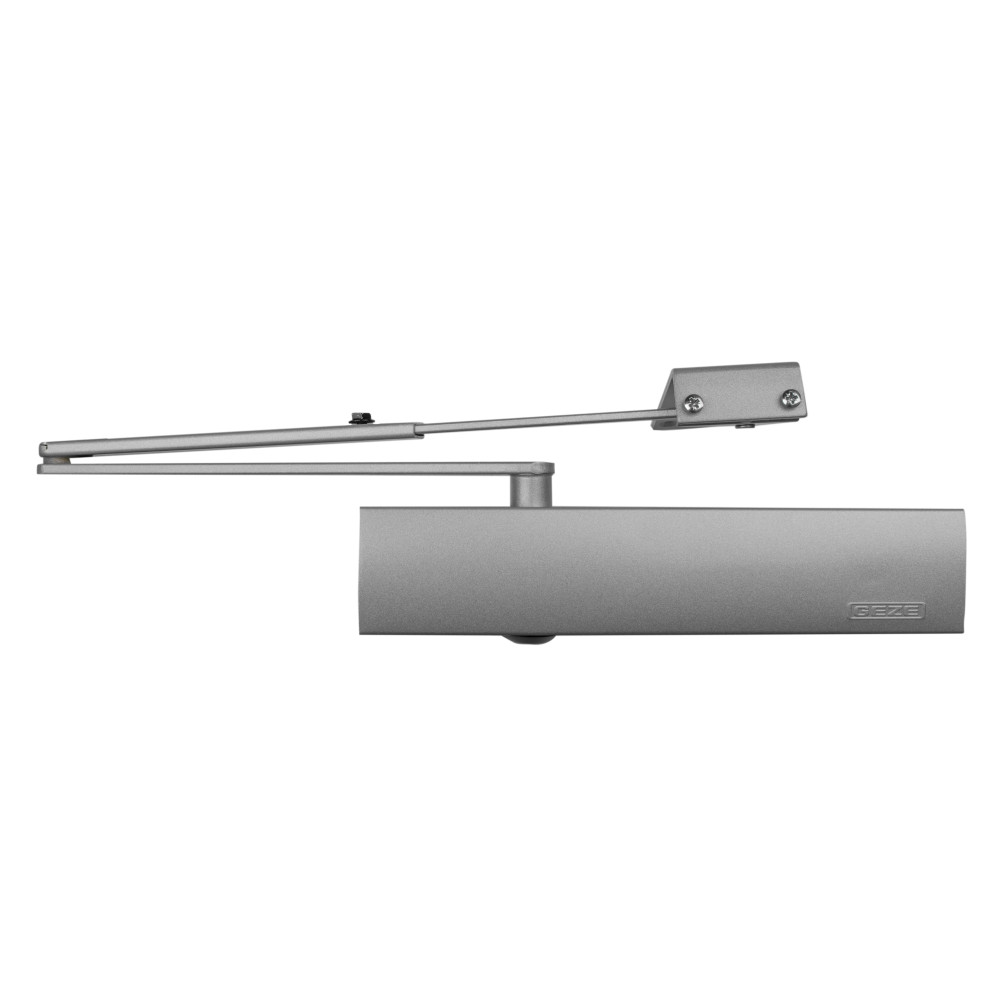

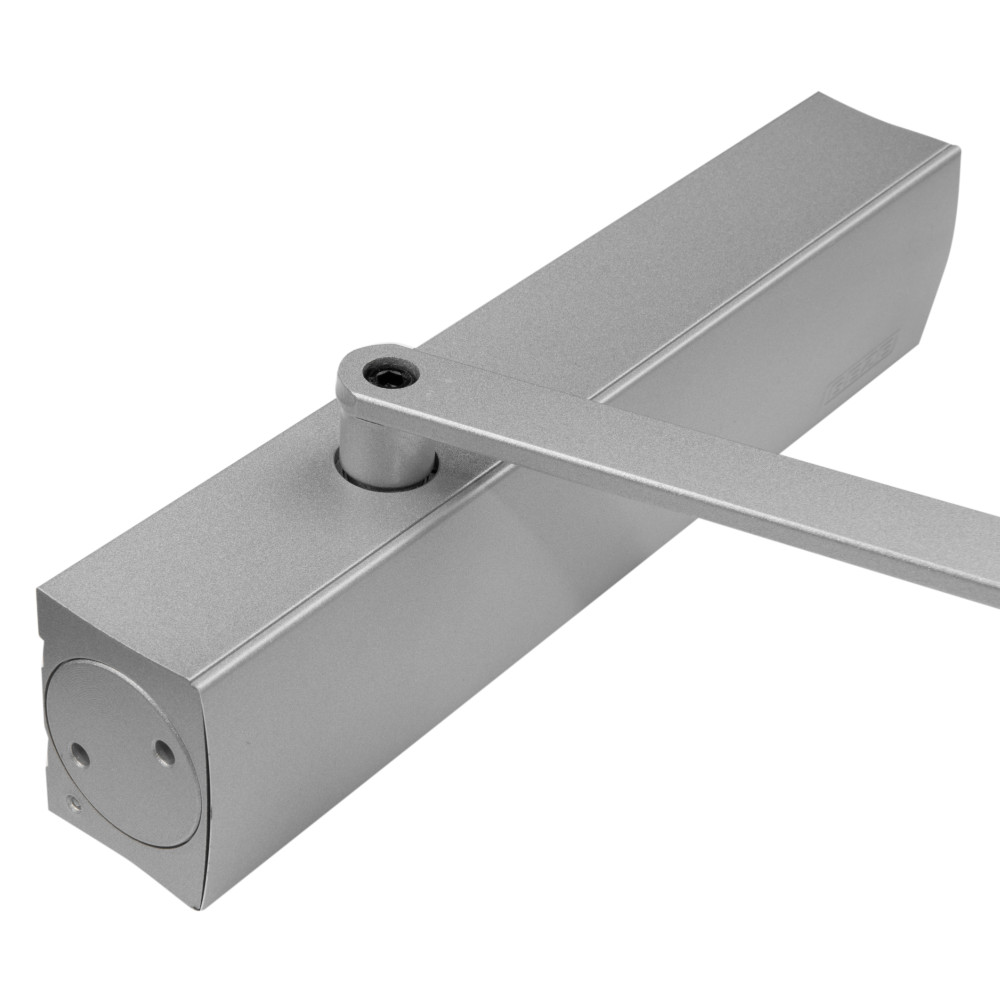

GEZE TS4000 Overhead Door Closer - Power Size EN 1-6

The GEZE TS4000 is an overhead door closer with power size EN 1-6, suitable for doors up to 1400mm wide and weighing up to 120kg. The closer can be altered to suit your premises' requirements with adjustable features such as closing force, latching action, and back check. In addition, the TS4000 can be installed in Fig 1, 61, and 66 configurations giving flexibility to the installer.

• Suitable for:
  • Internal single action doors
  • External doors - if mounted in Fig 61 or 66 configuration
  • Installation in Fig 1, 61 and 66 configurations
  • Doors up to 1400mm wide or weighing up to 120kg – EN size 1-6
• Fire rated for up to 120 minutes - CF252 Certificate
• Designed to the requirements of DDA satisfying BS 8300
• BWF Certified

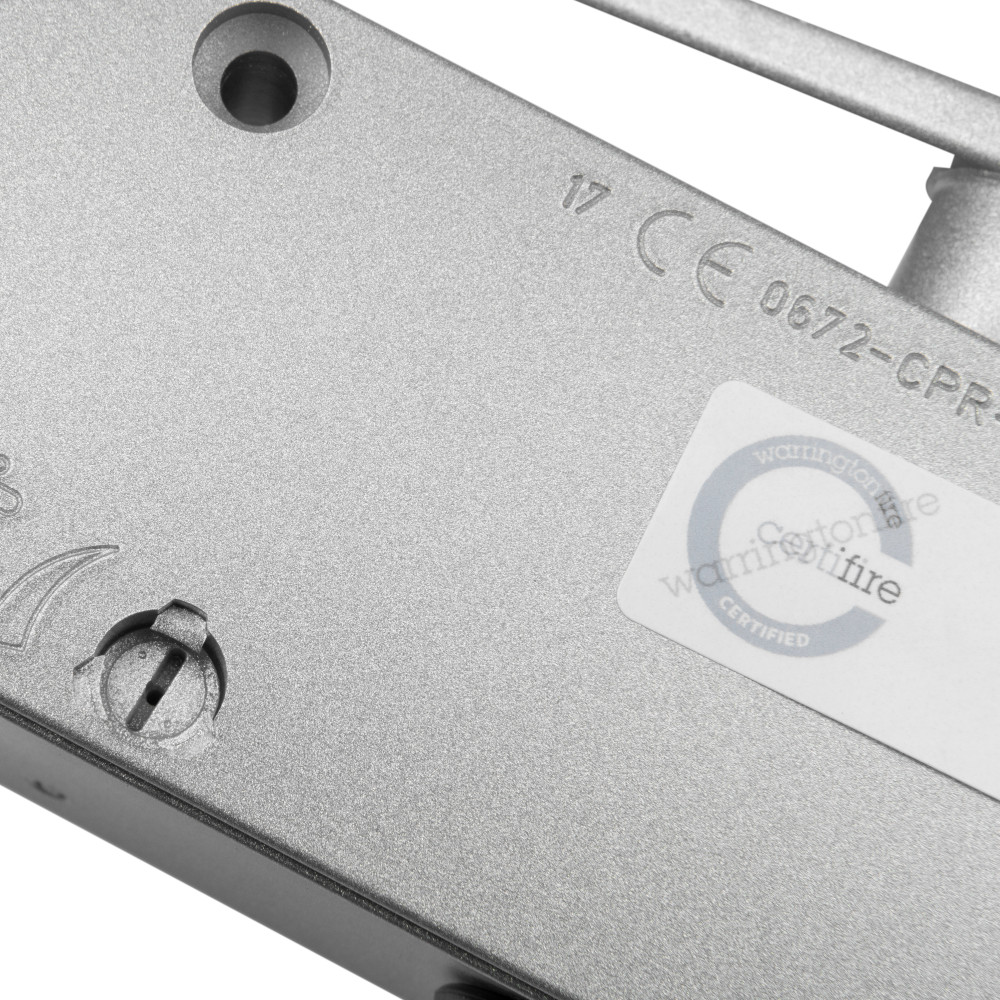

• CE Marked to EN 1154
• Adjustable features to suit any premises
  • Closing speed controls how fast the door closes
  • Latching action governs the speed the door closes during the last 15° of the closing cycle

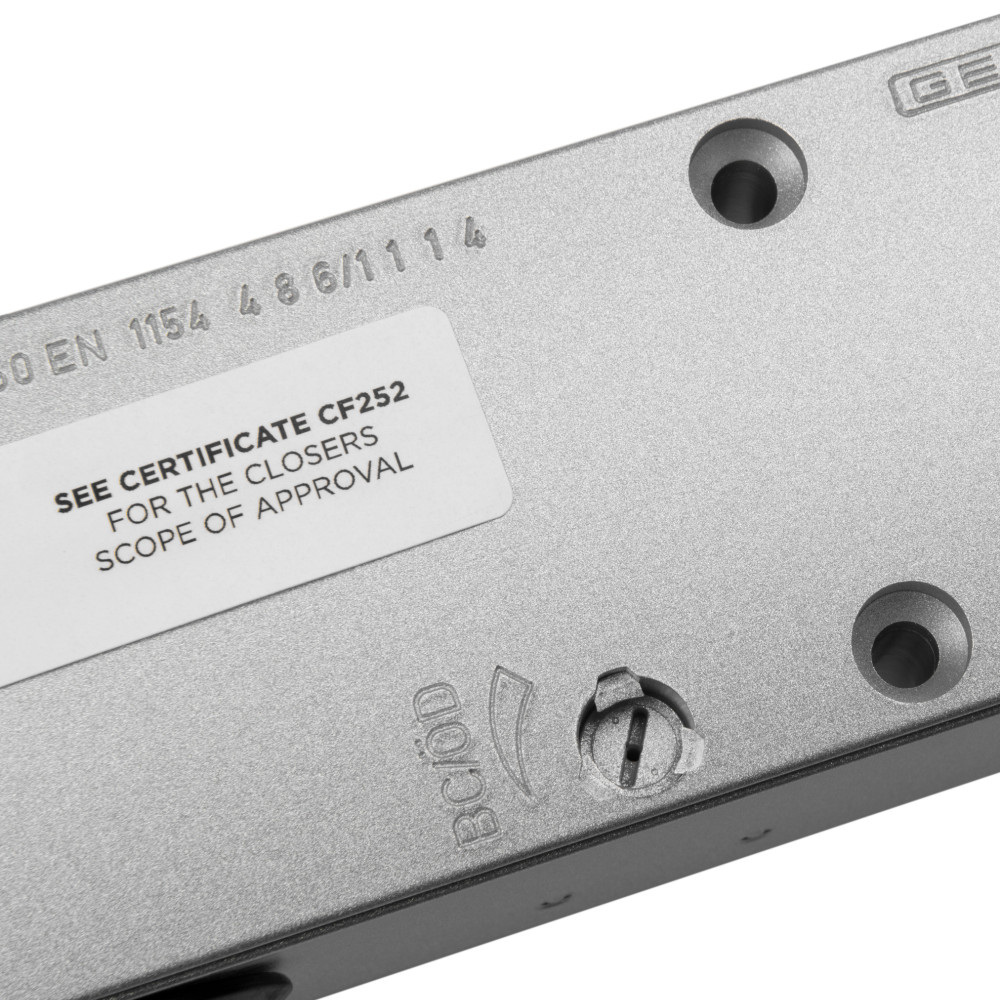

  • Back check ensures that no damage is caused by the door when it is opened rapidly

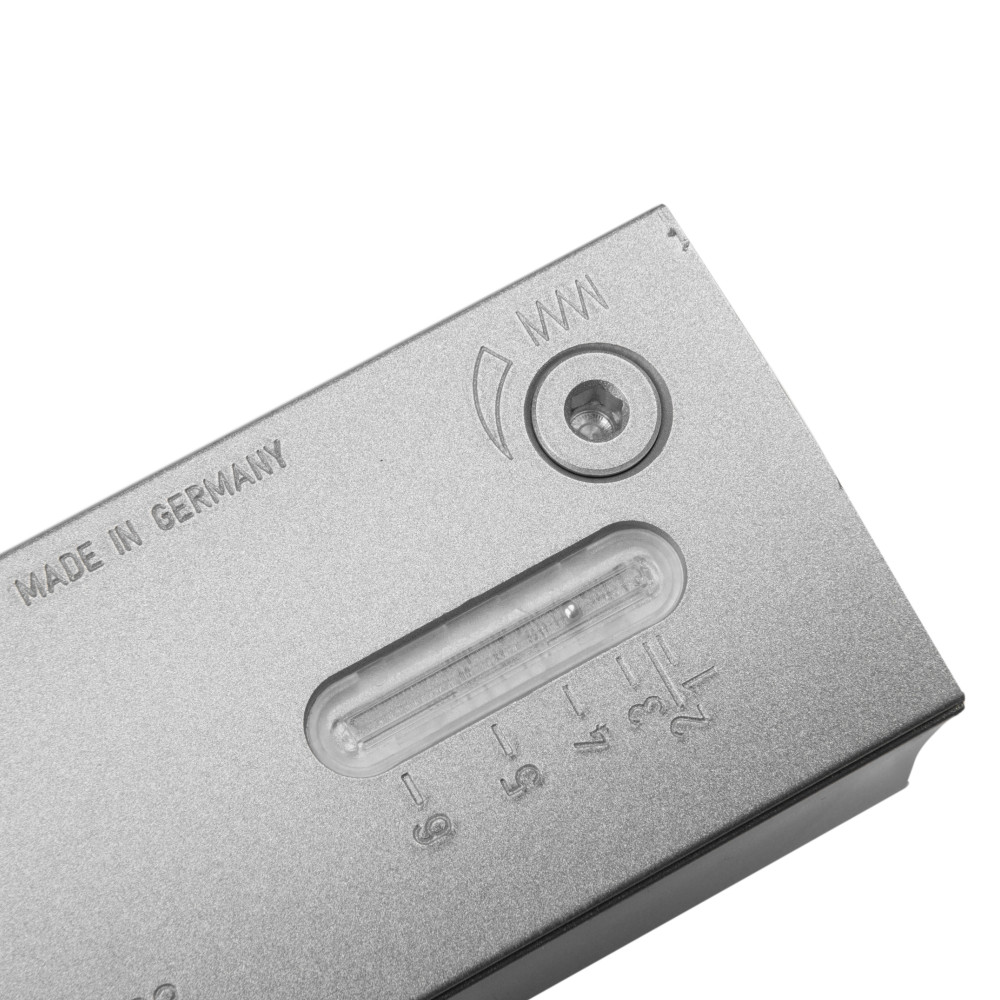

  • Closing force with an optical size indicator
• Quick and easy installation with the supplied direct fitting template - eliminates the need for a backing plate
• Universal fittings for push and pull side mounting
• Made in Germany
• 12 Month Warranty
• Full classification: 4 | 8 | 1-6 | 1 | 1 | 4
