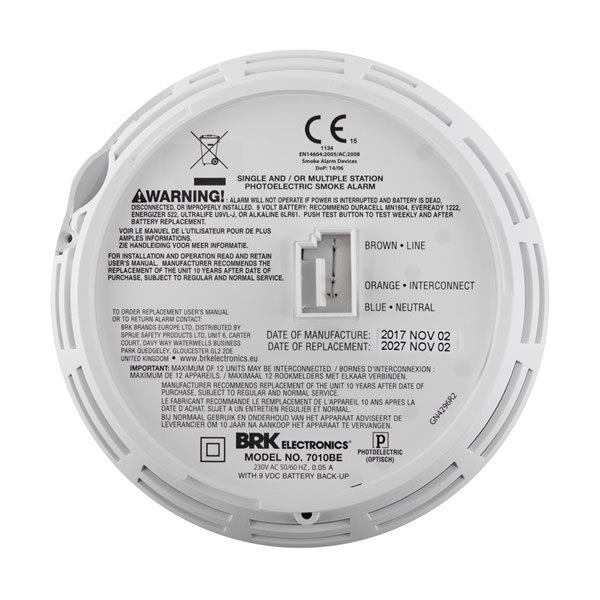

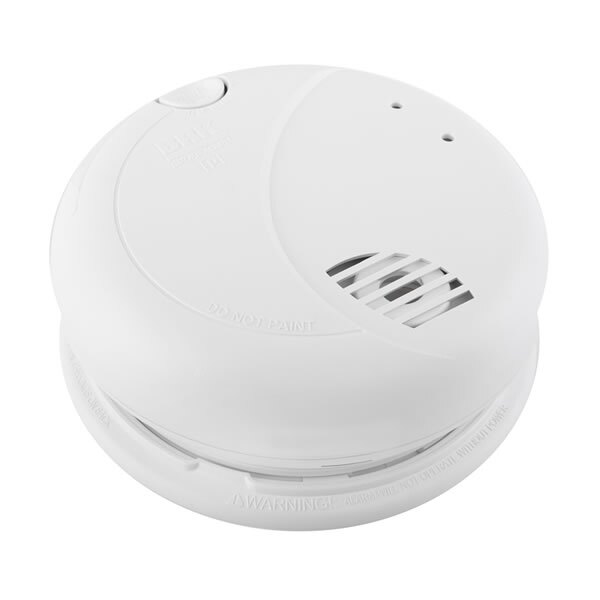

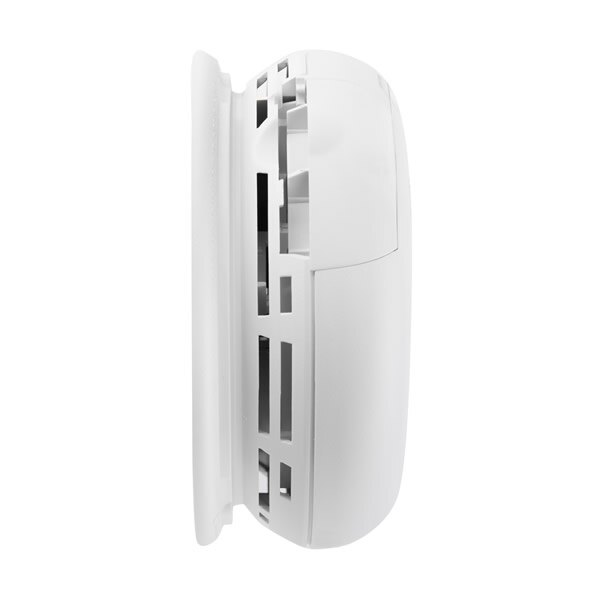

Mains Powered Optical Smoke Alarm with Alkaline Back-up Battery - BRK 7010BE
Discontinued Product
This product has been discontinued and is no longer available to buy.
View Alternative Products
Product Overview
Interlink
Technical Data
FAQs (3)
The BRK 7010BE mains powered optical smoke alarm is suitable for installations needing to comply with BS 5839-6: 2019 Grade D2. Fitted with a replaceable 9V alkaline back-up battery in case of mains failure, this alarm can be hardwire interlinked with up to 12 compatible smoke alarms and 6 heat alarms to provide a simultaneous warning in an emergency situation. The alarm features a combined test and silence button and a visual LED to indicate power and that the unit is fully operational. This alarm also has a battery drawer which resists closing unless a battery is installed, warning the user that the unit will not operate under AC power without a battery.
- Power: 230V mains powered smoke alarm
- Backup Battery: 9V alkaline back-up battery (included)
- Warranty: 5 year warranty
- Suitable for BS 5839-6: 2019 Grade D2 installations
- Hardwire interlink with up to 12 compatible smoke and 6 compatible heat alarms
- CE marked and Kitemarked to BS EN 14604: 2005
- Integrated 'safety device' to discourage fitting without a battery
- Patented ceiling entry smoke detection system

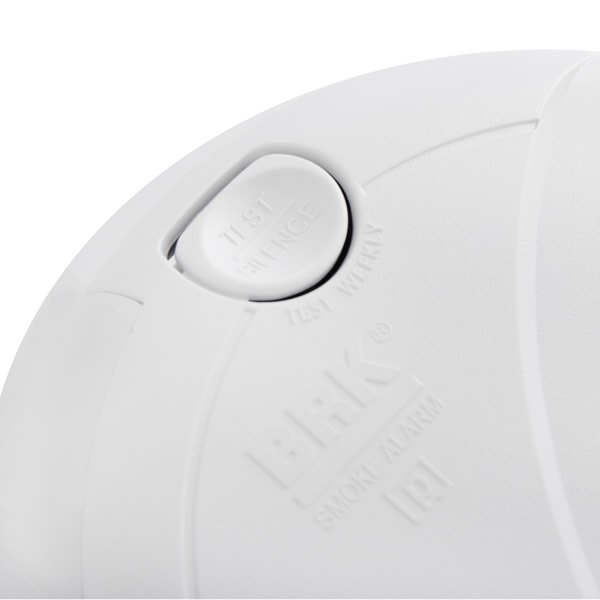

- Combined test and silence button
- Recommended replacement for BRK 86RACE alarms
- Easy to perform a full check (circuit, horn, battery and sensor)
- Visual LED to indicate power and functionality
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- Product warranty and life commences from date of purchase
- This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes
The table below shows all the units that can interlink with the BRK 7010BE and 7010LBE smoke alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| 7010BE | Optical Smoke Alarm | Hard wire interlink |
| 7010LBE | Optical Smoke Alarm | Hard wire interlink |
Compatible 600 Series Alarms
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| 670MBX | Ionisation Smoke Alarm | Hard wire interlink |
| 660MBX | Optical Smoke Alarm | Hard wire interlink |
| 690MBX | Heat Alarm | Hard wire interlink |
Compatible 700 Series Alarms
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| 770MRL | Ionisation Smoke Alarm | Hard wire interlink |
| 760MRL | Optical Smoke Alarm | Hard wire interlink |
| 790MRL | Heat Alarm | Hard wire interlink |
| Product Code | BK7010BE |
|---|---|
| Alternative Product Codes | BK7010BE, 7010BE, 86RACE |
| Brand | BRK |
| Back-Up Battery | 9V Alkaline |
| Dimensions (HxDia) | 48x127mm |
| Operating Temperature | +4°C to +38°C |
| Relative Humidity | 10% to 85% |
| Sound Output | 85dB |
| Warranty | 5 years |
| Weight | 0.24kg |
| Product Datasheets |
Q. What sort of smoke alarm system would I need to install for a HMO?
A.
BS 5839-6 recommends that one or two storey HMOs with an individual floor area of no more than 200sqm (not the total of both floors) should have a Grade D smoke alarm system installed. Grade D refers to mains powered smoke alarms with a back up battery power supply. The alarms can be interlinked either by wire or by radio signal and the system does not require a separate fire alarm panel. For HMOs of 3 storey or higher, a Grade A panel system would need to be installed. This can cover the whole of the building, or can be used just for the communal areas with a separate Grade D system installed for the individual dwellings. For both applications, the level of cover should be a minimum of LD3 (in all escape routes) but this may change according to the fire risk assessment.
Q. Can a smoke alarm be fitted with a sticky adhesive pad in a let property?
A.
The sticky pad is suitable for all battery operated smoke alarms. However, we cannot judge if battery alarms are suitable for your let property, as let properties usually require mains powered alarms. There is some advice to this in the governments guides to fire risk assessments. http://www.safelincs.co.uk/Fire-Risk-Assessment/
Also see the LACoRS guide for let properties.
Q. How long do the batteries last in smoke alarms?
A.
The 9V alkaline batteries and AA alkaline batteries generally last 12 to 18 months. Lithium batteries will usually last 5x longer than their alkaline counterparts, achieving around 5 years lifetime. Some lithium cells are also rechargeable, and when used in a mains-powered alarm may last for the entire functional lifespan of the alarm. Newer alarm models may also feature a "sealed" lithium battery. These batteries are specialist components which are designed to not be removed or need replacing by the user, and have been tested by the alarm manufacturer to ensure they last for the lifetime of the alarm.
Please note: the actual lifetime of your batteries depends on how often the alarms are tested or activated, as sounding the alarm draws more power than when the alarms are "waiting" to detect fire. You should also read your alarm's manual to make sure you only use the recommended types and brands of batteries, as failing to follow these instructions may cause the alarm to malfunction, not alerting you in the event of a fire, and might also invalidate the warranty.
