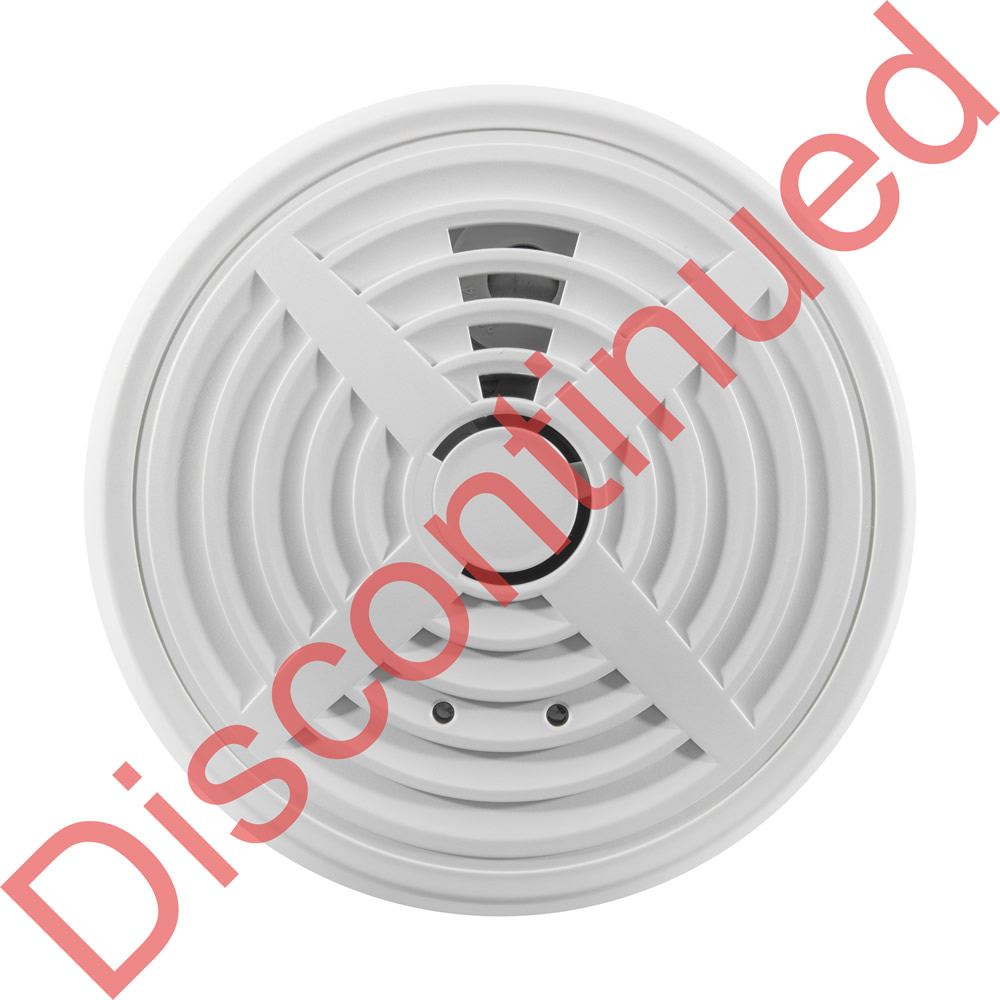

Mains Powered Optical Smoke Alarm with Alkaline Back-up Battery - BRK 660MBX

Discontinued Product - No Compatible Replacement

Please Note: BRK have withdrawn from the European market and there is no compatible alternative that will fit into your existing system. Since it is not possible to interlink alarms from different manufacturers, new alarms will be needed throughout. The recommended replacement for the whole discontinued BRK 600MBX range is the Kidde Firex series. This will require an electrician to replace your old BRK bases with new Kidde bases.

alternative product

Kidde Firex Mains Powered Alarms with Alkaline Battery

  • 230V mains powered with alkaline back-up battery
  • Available in Ionisation, Optical and Heat versions
  • Interlink with up to 24 units
  • Suitable for BS 5839-6: 2019 Grade D2 installations
  • Kitemarked and CE marked
  • Please note: alarms are sold individually
  • Also suitable for the 2022 Scottish legislation

£17.75 inc VAT

£14.79 ex VAT

View Product
Product Overview

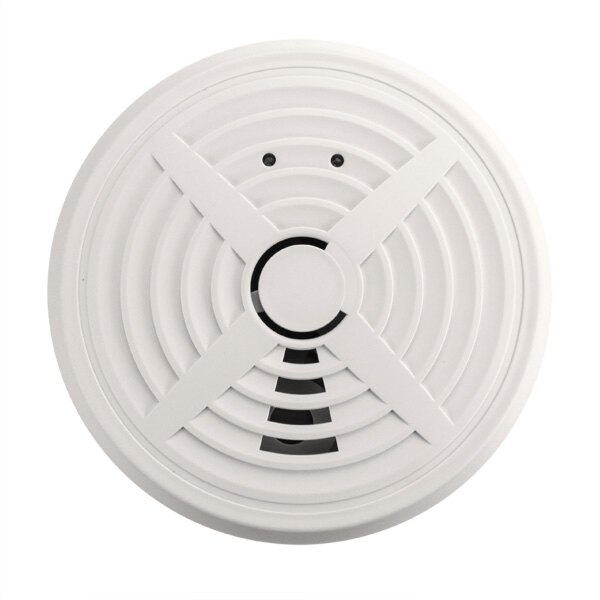

The BRK 660MBX mains powered optical smoke alarm uses thermally enhanced sensing technology to quickly detect slow smouldering fires. Fitted with a 9V alkaline back-up battery to continue powering the alarm after a mains failure, the 660MBX can be hard wire interlinked with up to 12 smoke and heat alarms within a single system.

  • Power: 230V mains powered with back-up battery
  • Backup Battery: 9V alkaline backup battery (included)
  • Warranty: 5 year manufacturer's warranty
  • Please note that BRK are no longer manufacturing new stock for the European Market and while the products will have a 2018 manufacturing date they still provide a full 10 year lifespan and full warranty cover from date of purchase
  • Includes slimline twist-fit base suitable for flush mounting
  • CE marked and Kitemarked to BS EN 14604
  • Suitable for installations complying to BS 5839-6: 2019 Grade D2
  • Provides quick detection of slow smouldering fires
  • Suitable for bedrooms, living rooms and downstairs hallways
  • A maximum of 12 600MBX series smoke and heat alarms can be interlinked (via cable)
  • An interlinked system provides the earliest possible warning of fire
  • Test and hush button feature
  • Suitable replacement for the DETA 1153 and DETA 1113 Thermally Enhanced Optical Alarms
  • Supplied with fixings; 2 x screws and 2 x rawl plugs
  • Product warranty and life commences from date of purchase
  • This alarm is also suitable for the updated 2022 Scottish legislation for fire alarms in homes

Please note: for surface-mounted wiring such as trunking the base plate included with this alarm is not suitable; please see the BRK 760MRL with push-fit base instead.

Interlink

The table below shows all the units that can interlink with the BRK mains powered smoke and heat alarms.

Alarms from the Same Series

Model Number Type of unit Type of Interlink
670MBX Ionisation Smoke Alarm Hard wire interlink
660MBX Optical Smoke Alarm Hard wire interlink
690MBX Heat Alarm Hard wire interlink
Technical Data
Product Code BK660MBX
Alternative Product Codes BK660MBX, 660MBX, DETA1153, 1153, DETA1113, 1113, 650MBX
Brand BRK
Back-Up Battery

9V Alkaline

Dimensions (HxDia)

44x140mm

Operating Temperature

+5°C to +38°C

Relative Humidity

10% to 85%

Sound Output

85dB

Warranty

5 Years

Weight 0.27kg
Product Datasheets
FAQs (6)
Q. Do you need an electrician to connect mains powered smoke alarms?
A.

It is necessary that an electrician installs mains powered smoke alarms.

Q. When the test button is pressed on an interlinking smoke alarm will this cause all the other units to go off, too?
A.

Yes, by pressing the test button on one alarm all the units in that family will also be activated. To 'teach' the units which other smoke alarms belong to the same family, the smoke alarms have to be set up together during the installation. This is done by pressing a 'housecoding button' or similar process.

Q. If a false alarm goes off can pressing the hush button on any of the interlinking alarms stop all the units beeping?
A.

No, to stop the alarms from sounding the hush button on the unit that started the process needs to be pushed. Pressing any other unit will just silence that one unit. The unit can be identified by the rapidly flashing red LED.

Q. How long do the batteries last in smoke alarms?
A.

The 9V alkaline batteries and AA alkaline batteries generally last 12 to 18 months. Lithium batteries will usually last 5x longer than their alkaline counterparts, achieving around 5 years lifetime. Some lithium cells are also rechargeable, and when used in a mains-powered alarm may last for the entire functional lifespan of the alarm. Newer alarm models may also feature a "sealed" lithium battery. These batteries are specialist components which are designed to not be removed or need replacing by the user, and have been tested by the alarm manufacturer to ensure they last for the lifetime of the alarm.


Please note: the actual lifetime of your batteries depends on how often the alarms are tested or activated, as sounding the alarm draws more power than when the alarms are "waiting" to detect fire. You should also read your alarm's manual to make sure you only use the recommended types and brands of batteries, as failing to follow these instructions may cause the alarm to malfunction, not alerting you in the event of a fire, and might also invalidate the warranty.

Q. What sort of smoke alarm system would I need to install for a HMO?
A.

BS 5839-6 recommends that one or two storey HMOs with an individual floor area of no more than 200sqm (not the total of both floors) should have a Grade D smoke alarm system installed. Grade D refers to mains powered smoke alarms with a back up battery power supply. The alarms can be interlinked either by wire or by radio signal and the system does not require a separate fire alarm panel. For HMOs of 3 storey or higher, a Grade A panel system would need to be installed. This can cover the whole of the building, or can be used just for the communal areas with a separate Grade D system installed for the individual dwellings. For both applications, the level of cover should be a minimum of LD3 (in all escape routes) but this may change according to the fire risk assessment.
