Easichange Replacement for DETA 1115 Mains Powered Heat Alarm
Free Delivery
BRK 690MBX heat alarm backup battery replacement - 02:33
How to Replace Discontinued BRK Mains-Powered Alarms - 01:47
BRK 690MBX and 690MRL heat alarm head removal - 01:24
Videos
Product Overview
Compatible Alarms
Installation
Technical Data
The DETA 1115, which has been discontinued by the manufacturer, is a mains powered heat alarm with 9V alkaline battery back-up. To ensure that DETA 1100 series alarm owners can continue to update their systems, easichange® have developed a range of replacements to be fully backward-compatible with your outgoing DETA alarms and their mounting plates. The SBBRKHE is the ideal replacement for the 1115 alarm as it has been designed and tested to fit onto your existing alarm bases so you don't even need an electrician.

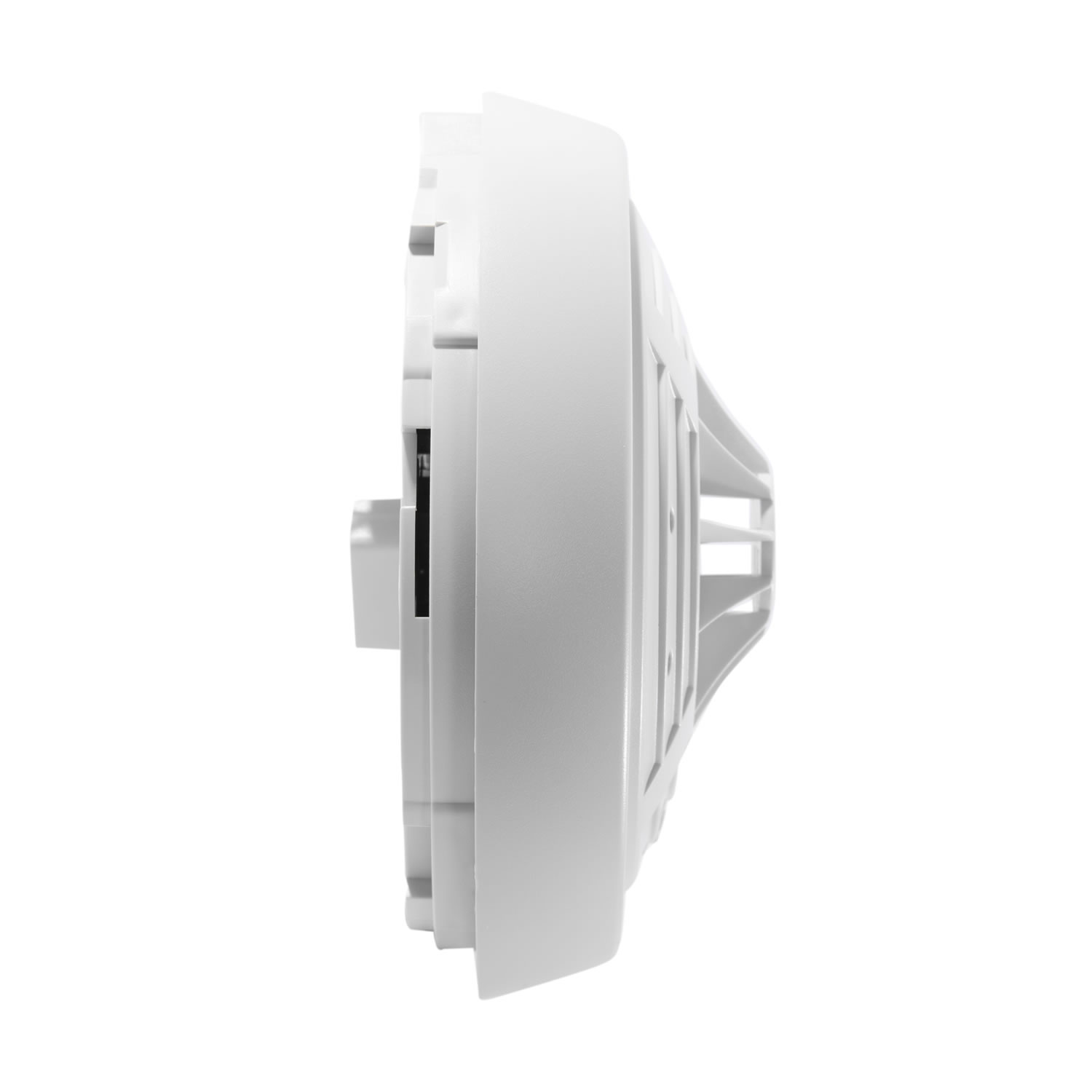

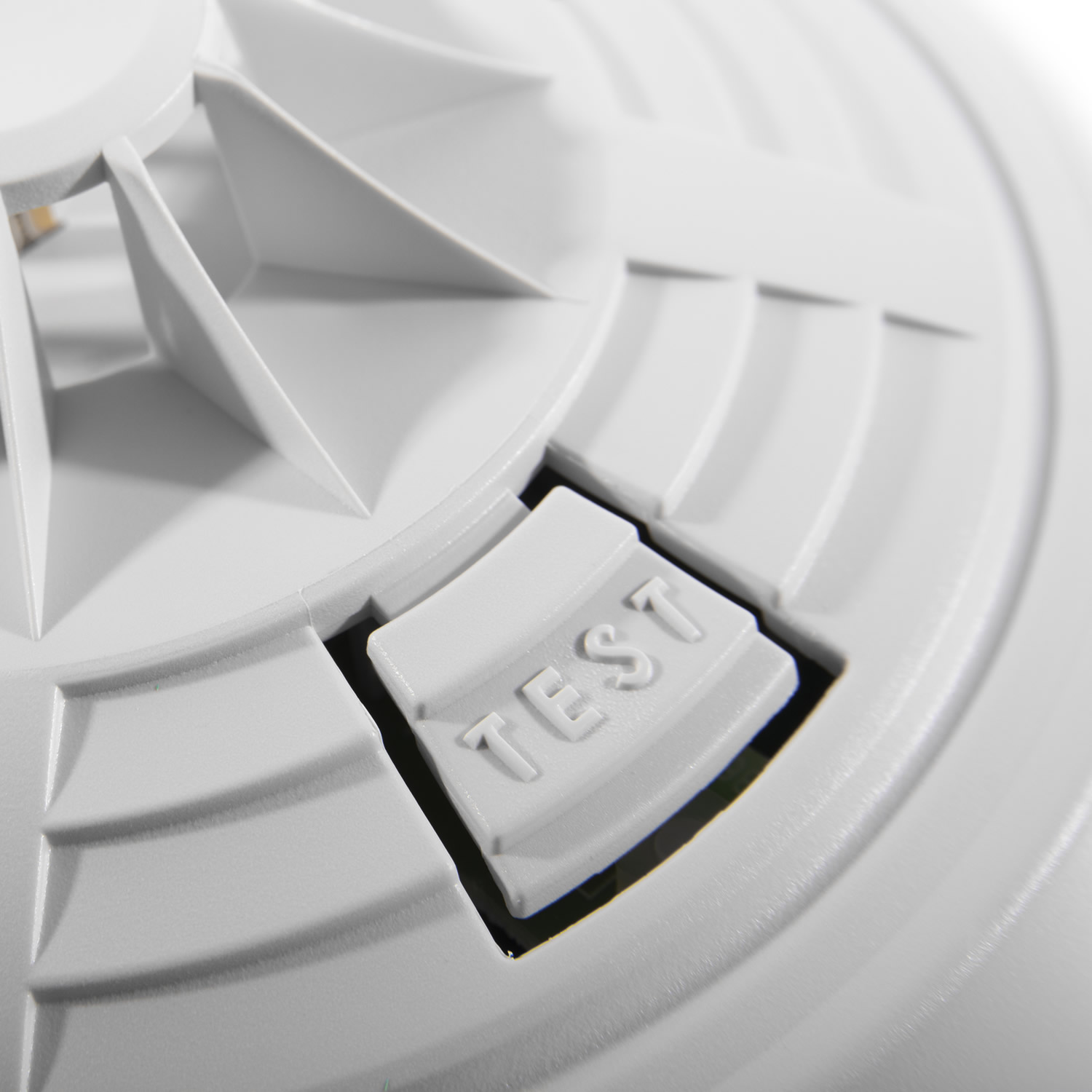

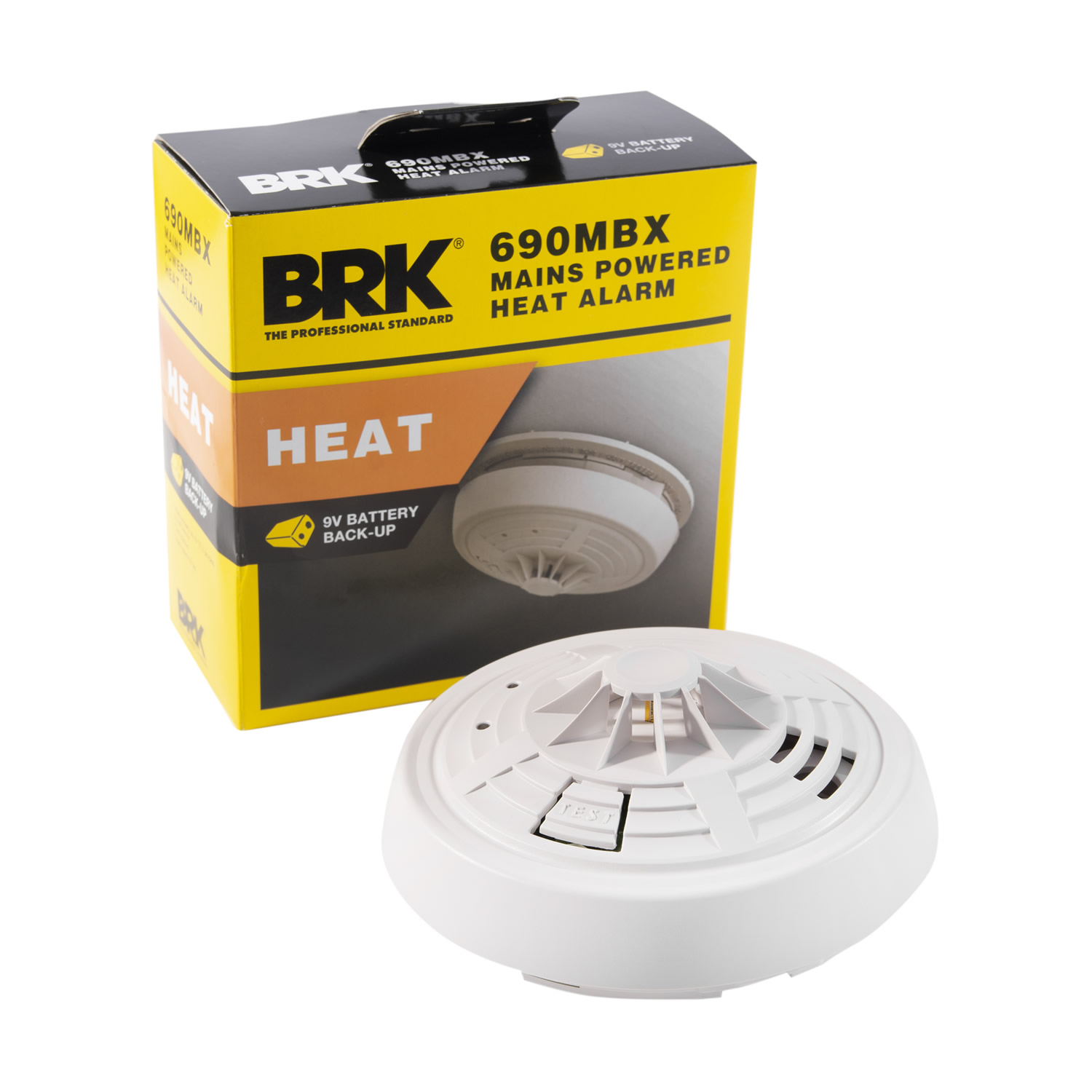

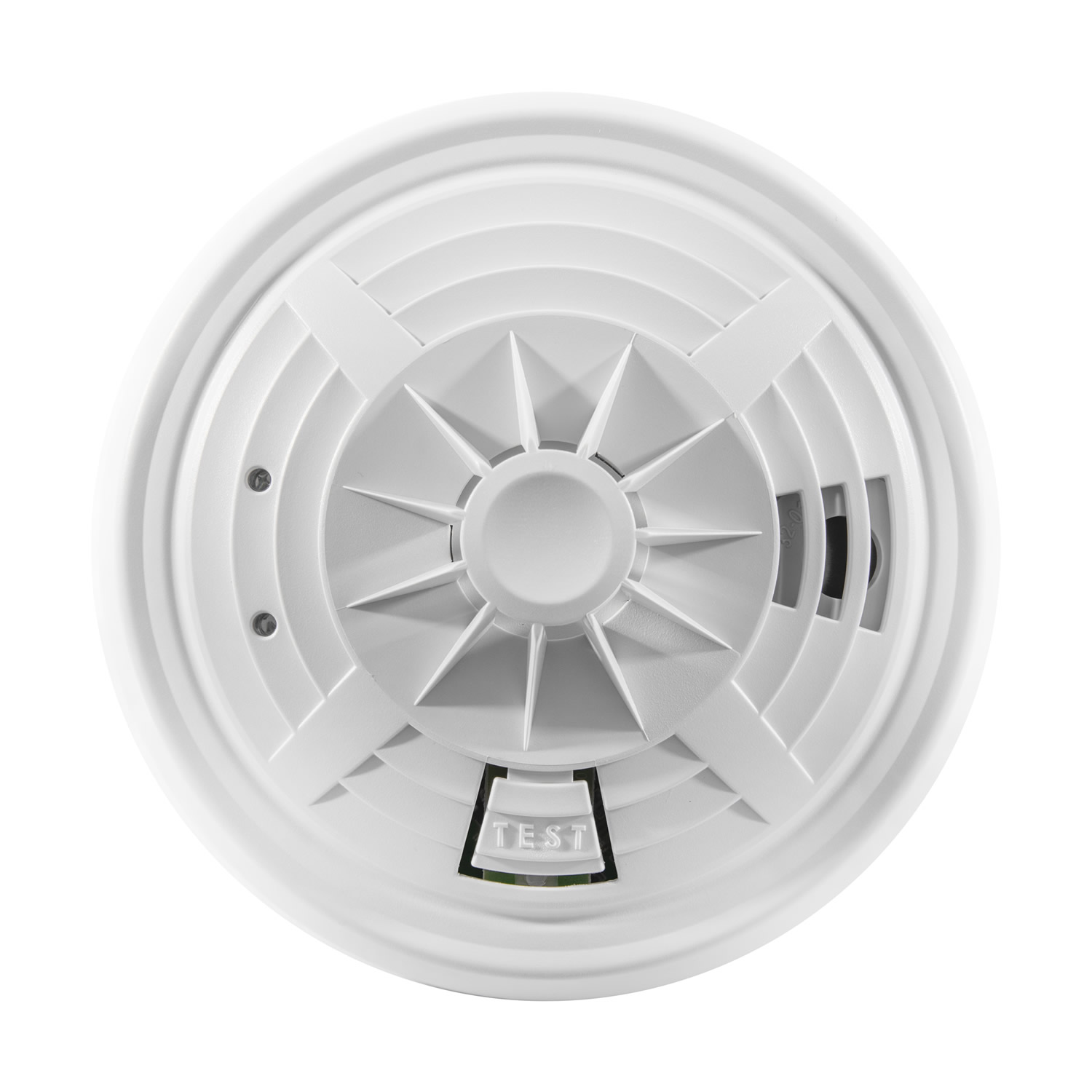

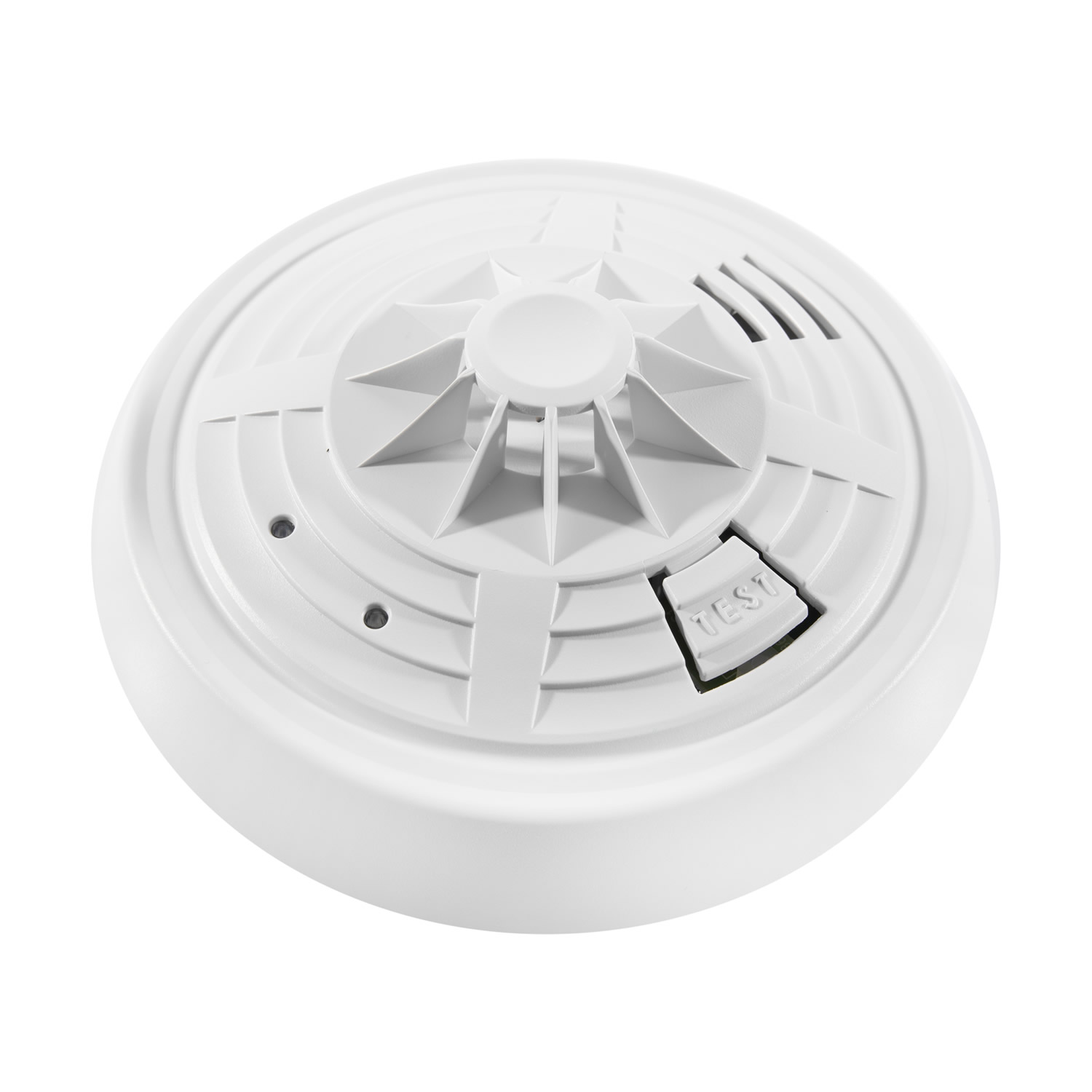

The SBBRKHE is a mains powered heat alarm with a replaceable 9V alkaline backup battery like the DETA 1115 that it replaces. Heat alarms detect the temperature of the room they're in and activate when it gets abnormally hot, typically from 55°C. They are designed for rooms like kitchens and garages where steam, fumes, and dust are expected to cause false activations in smoke alarms. A central test/hush button makes maintenance of your alarm quick and simple. Featuring a hardwire interlink allowing compatible easichange® alarms to communicate with each other over the same wiring as your old DETA alarms, so that all will sound the alarm if one detects a fire.
- Suitable for kitchens, garages, and unconverted lofts or basements
- Power: 230V mains powered with back-up battery
- Back-up Battery: 9V alkaline back-up battery (included)
- Warranty: 3 year manufacturer's warranty
- Simple replacement process with Quick Change Guide
- Fits onto your existing DETA alarm mounting plate and electrical connector plug
- Heat sensor detects high ambient temperatures indicative of a fire
- Supplied with FREE easichange® replacement tool
- Heat alarm CE Marked, UKCA Marked, and Kitemarked to BS 5446-2: 2003
- Adaptor plate and assembled replacement alarm tested and approved by TÜV Austria
- Complies with BS 5839-6: 2019 Grade D2 requirements
- Performs its own self-checks every 48 seconds to ensure the alarm is functioning correctly
- Test and silence button feature
- Replacement also available for the DETA 1111 & 1113 mains powered smoke alarms
The simple installation process of the easichange® replacement kits negates the need for an electrician, though you must ensure that mains power to all interlinked alarms is cut before beginning work. The interlink wire can carry a live electric current between alarms if they are powered from different circuits.
Please Note: We recommend replacing all alarms in the system together to maintain optimum system operation; failing to do so may compromise interlink performance.
It is important to select the correct easichange® alarm to replace your obsolete DETA models. The table below will help you select the correct replacement alarm. Please note that you can replace your existing optical and ionisation alarms with an easichange optical alarm, however your heat alarm can only be replaced with an easichange heat alarm.
Please Note: We recommend replacing all alarms in the system together to maintain optimum system operation; failing to do so may compromise interlink performance.
|
DETA Model |
Alarm Type |
Base Type |
Easichange® Replacement |
|---|---|---|---|
|
DETA 1111 |
Smoke, Ionisation, Alkaline backup battery |
Twist |
|
|
DETA 1113 |
Smoke, Optical, Alkaline backup battery |
Twist |
|
|
DETA 1115 |
Heat, Alkaline backup battery |
Twist |
The DETA 1111, 1113, and 1115 alarms were rebranded BRK models, but otherwise identical. This easichange® range was initially developed to replace discontinued BRK alarms, but is fully compatible with the equivalent DETA models as well. In general, the steps for maintaining and replacing DETA alarms is the same as for BRK 600MBX series alarms.
The simple installation process of the easichange® replacement kits, described below, negates the need for an electrician, though you must ensure that mains power to all interlinked alarms is cut before beginning work. The interlink wire can carry a live electric current between alarms if they are powered from different circuits.
Installation Steps
- Turn off the power at your fuse box or consumer unit.
- Take care to turn off all circuits powering any of your alarms, as the interlink wire can carry a live electric current.
- Remove your old DETA smoke or heat alarm from its baseplate by twisting and the unplugging the connector.

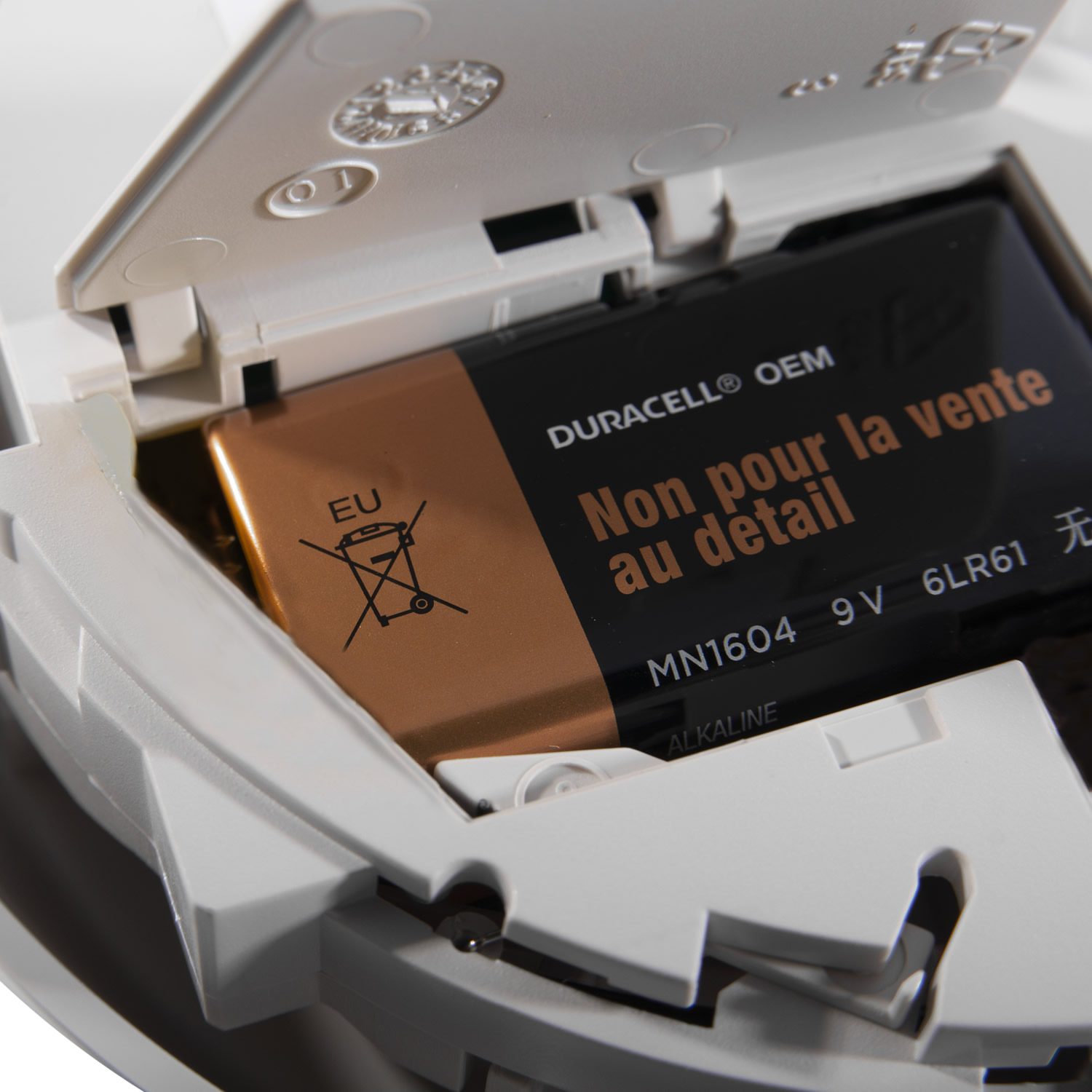

- Insert the supplied 9V battery into your easichange® replacement alarm and close the unit securely.
- Test the alarm to make sure it is powered up from the backup battery!

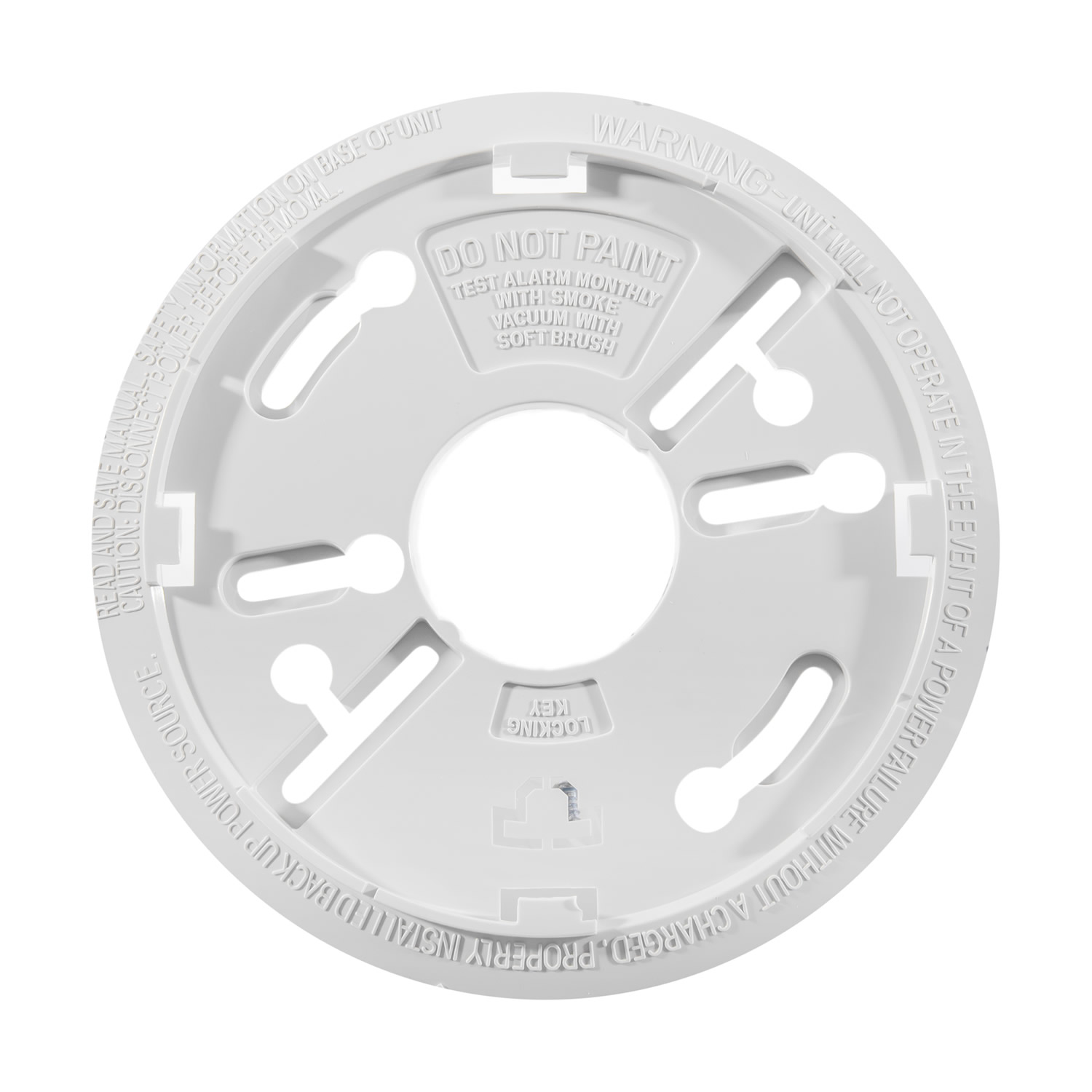

- Install the alarm on your old DETA baseplate:
- Connect the plug so that the wires of the connector line up with the pins on the alarm.
- Twist the alarm fully onto the baseplate.
- Repeat steps 2 to 4 for all of your old DETA alarms.
- We recommend replacing all alarms in the system together to maintain optimum system operation; failing to do so may compromise interlink performance.
- Turn the power back on at the fuse box.
- Test each of your smoke alarms separately to ensure the whole system is functioning correctly. When you test one alarm, they should all sound, however it is important to press the test button on each alarm too.
Additional Guides & Instructions
You can download PDF copies of the instructions here:
We also have a range of videos to help with removing, replacing, and maintaining various alarms and these easichange® replacements.
| Product Code | DT15RA |
|---|---|
| Alternative Product Codes | 1115, DETA1115, SBBRKHE |
| Brand | easichange |
| Back-Up Battery | Replaceable 9V Alkaline |
| Dimensions (HxDia) | 80 x 140mm |
| Operating Temperature | 0 °C to +40 °C |
| Sound Output | 85dB |
| Weight | 0.31kg |
| Product Datasheets |
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
| Product Code: DT15RA |
Stock Level:
More than 20 in stock Expected dispatch: Today
|
Price:
£24.00 inc VAT £20.00 ex VAT |
Delivery Options
The following delivery options are available on this product.
Customer Reviews
2 customers have given this product an overall rating of 5 out of 5
Reviews by real customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.Rating: 5 / 5 Stars
Reviewed by: M D
Great replacement
Published on: 11th November 2024
Rating: 5 / 5 Stars
Reviewed by: C B
Super easy replacements. Easy to install and quick delivery.
Published on: 18th October 2024
